OPERATION
1. Pull the lock down (see Figure G) and turn the tubular support 90° (see Figure H) to get it perpendicular to the
board (see Figure I) then release the lock.
2. Hold the bottom of the plastic tray and flip it up and over so it rests on the tubular support. Apply a pressure on
the tray to stabilize it on the tubular suppport (see Figure J).
3. Secure the monitor to the tray using the strap (see Figure K, L).
Note: The litter should be flat before installing the transport tray.
WARNING
• The maximum load capacity of the tray is 40 lbs (18kg)
• The maximum load capacity of the tubular support is 150 lbs (68 kg)

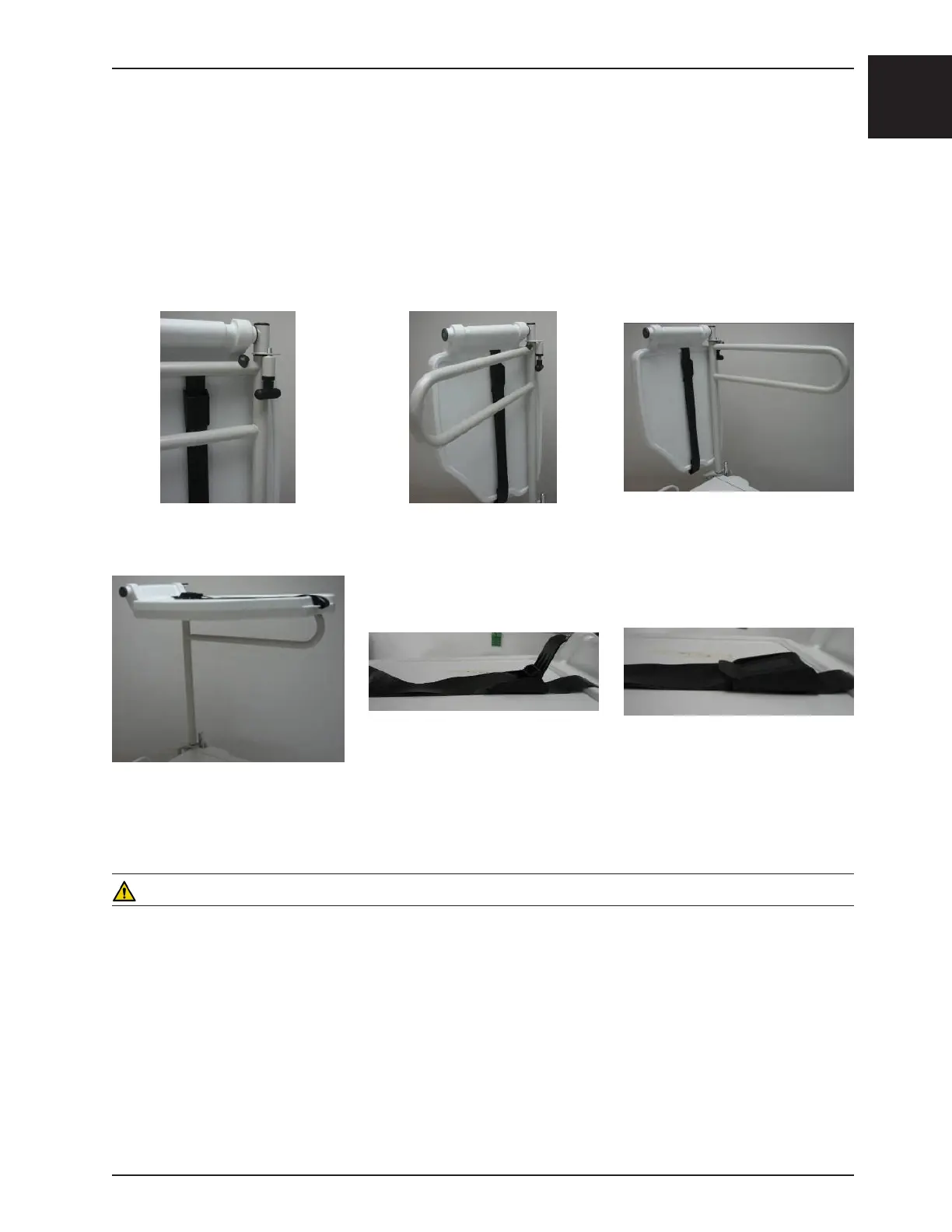

Figure G - pull the lock Figure H - turn the tubular support Figure I - pendicular to board
Figure J - stabilize tray Figure K - secure with straps Figure L - secure with straps
Monitor Tray (Continued) - FA64214
