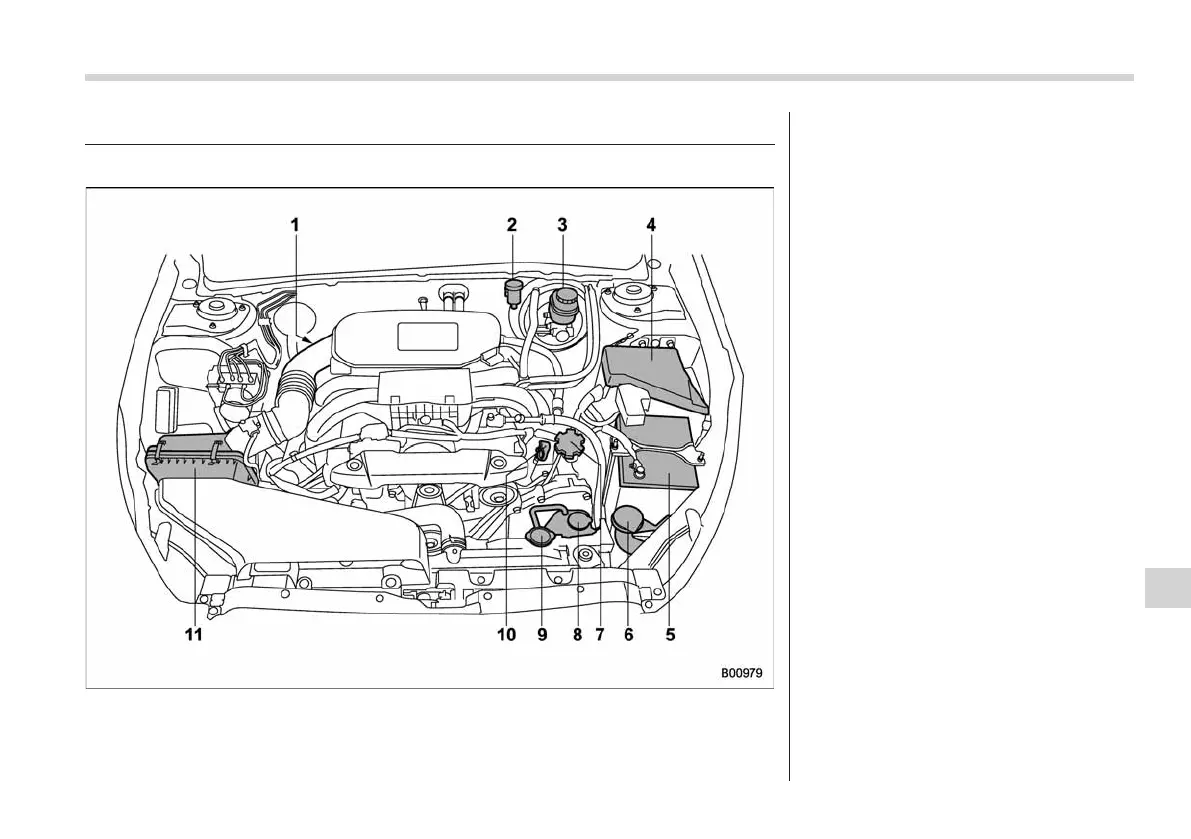

Engine compartment overview
& 2.0 L petrol engine models
The illustration above is for left-hand drive models. The locations of item No. 2 (clutch
fluid reservoir) and No. 3 (brake fluid reservoir) for right-hand drive models are the
opposite of those shown here.
1) Manual transmission oil level gauge (MT)
(page 11-32)
2) Clutch fluid reservoir (MT) (page 11-38)
3) Brake fluid reservoir (page 11-37)
4) Fuse box (page 11-55)
5) Battery (page 11-54)
6) Windshield washer tank (page 11-48)
7) Engine oil filler cap (page 11-18)
8) Engine coolant reservoir (page 11-23)
9) Radiator cap (page 11-23)
10) Engine oil level gauge (page 11-18)
11) Air cleaner case (page 11-25)
