11-14 Maintenance and service
& 2.5 L non-turbo models

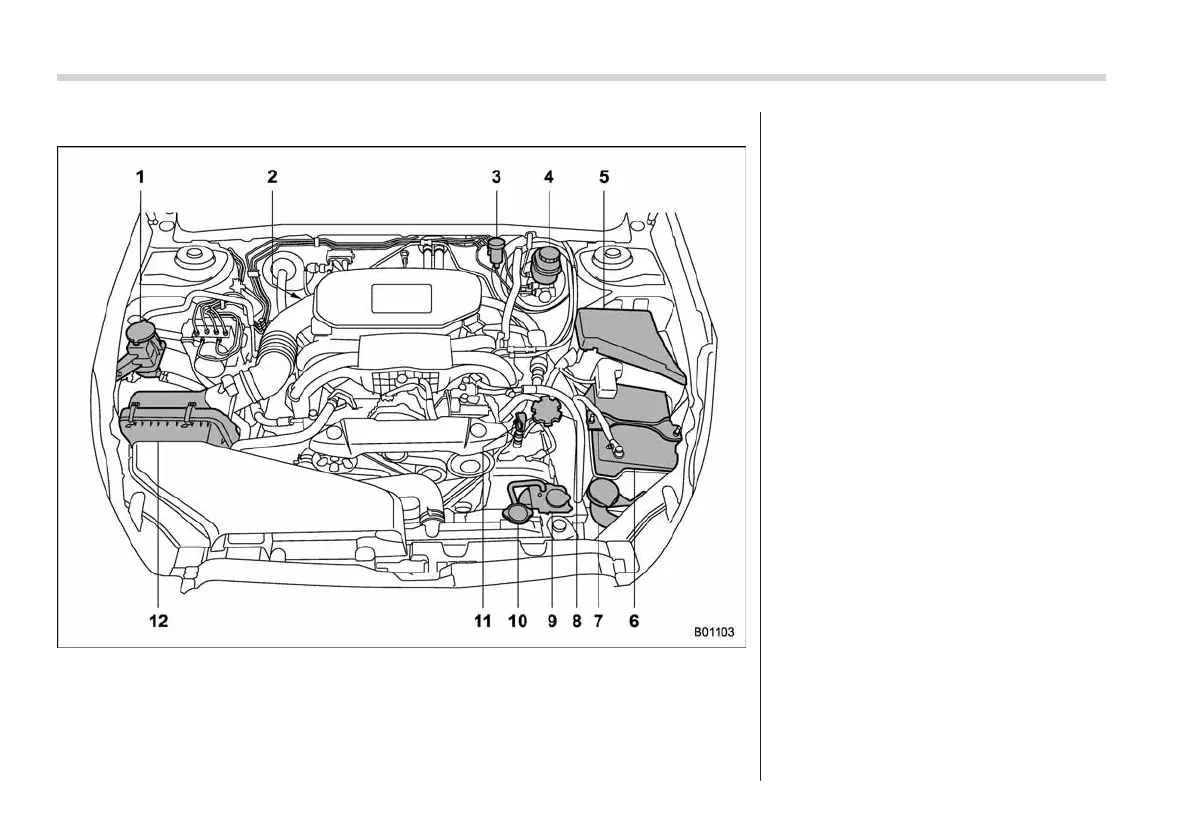

The illustration above is for left-hand drive models. The locations of item No. 3 (clutch
fluid reservoir) and No. 4 (brake fluid reservoir) for right-hand drive models are the
opposite of those shown here.
1) Power steering fluid reservoir (Australia
models) (page 11-36)
2) Manual transmission oil level gauge (MT)
(page 11-32)
3) Clutch fluid reservoir (MT) (page 11-38)
4) Brake fluid reservoir (page 11-37)
5) Fuse box (page 11-55)
6) Battery (page 11-54)
7) Windshield washer tank (page 11-48)
8) Engine oil filler cap (page 11-18)
9) Engine coolant reservoir (page 11-23)
10) Radiator cap (page 11-23)
11) Engine oil level gauge (page 11-18)
12) Air cleaner case (page 11-25)
