& Turbo diesel engine models

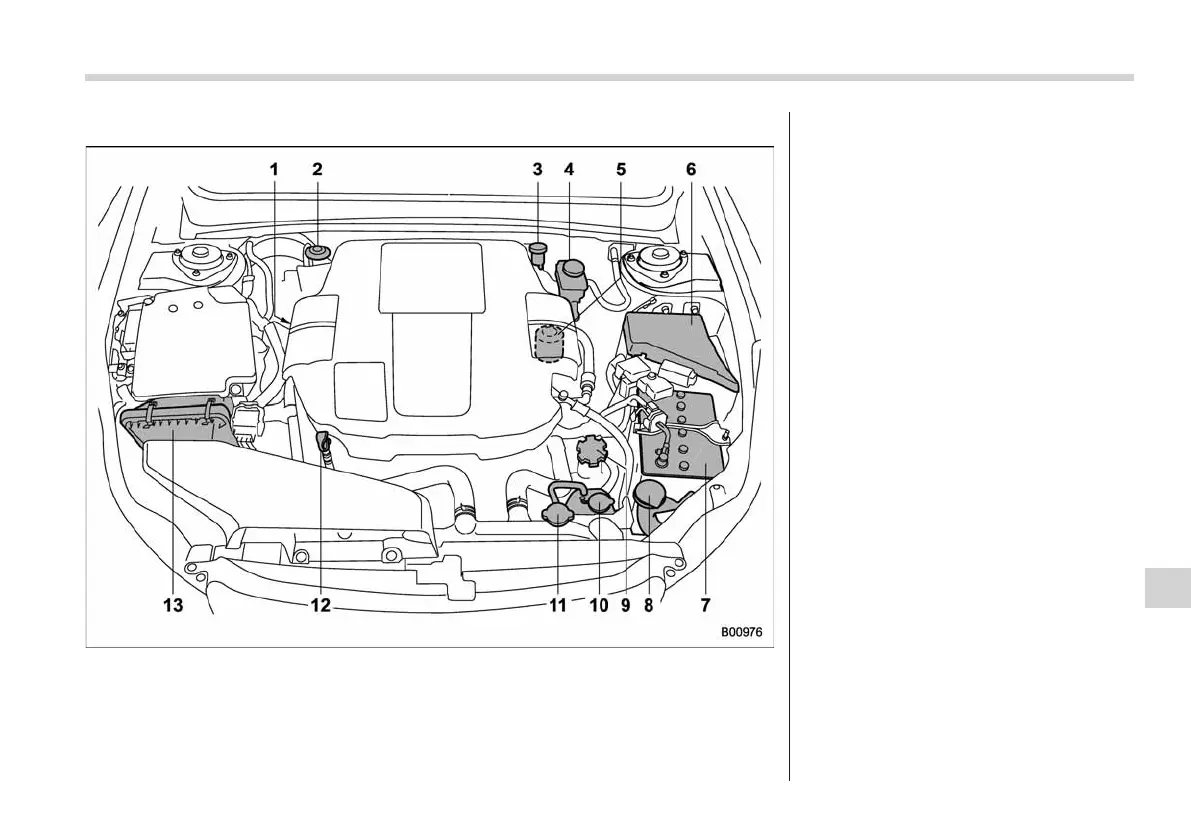

The illustration above is for left-hand drive models. The locations of item No. 2 (priming
pump), No. 3 (clutch fluid reservoir) and No. 4 (brake fluid reservoir) for right-hand drive
models are the opposite of those shown here.
1) Ma nual transmissi on oil l evel gauge
(page 11-32)
2) Priming pump (page 9-31)
3) Clutch fluid reservoir (page 11-38)
4) Brake fluid reservoir (page 11-37)
5) Engine oil filter (page 11-20)
6) Fuse box (page 11-55)
7) Battery (page 11-54)
8) Windshield washer tank (page 11-48)
9) Engine oil filler cap (page 11-18)
10) Engine coolant reservoir (page 11-23)
11) Radiator cap (page 11-23)
12) Engine oil level gauge (page 11-18)
13) Air cleaner case (page 11-25)
