一般Model "A2470GE-B" EDITED: 2010/ 9/ 24
& 2.5 L turbo models

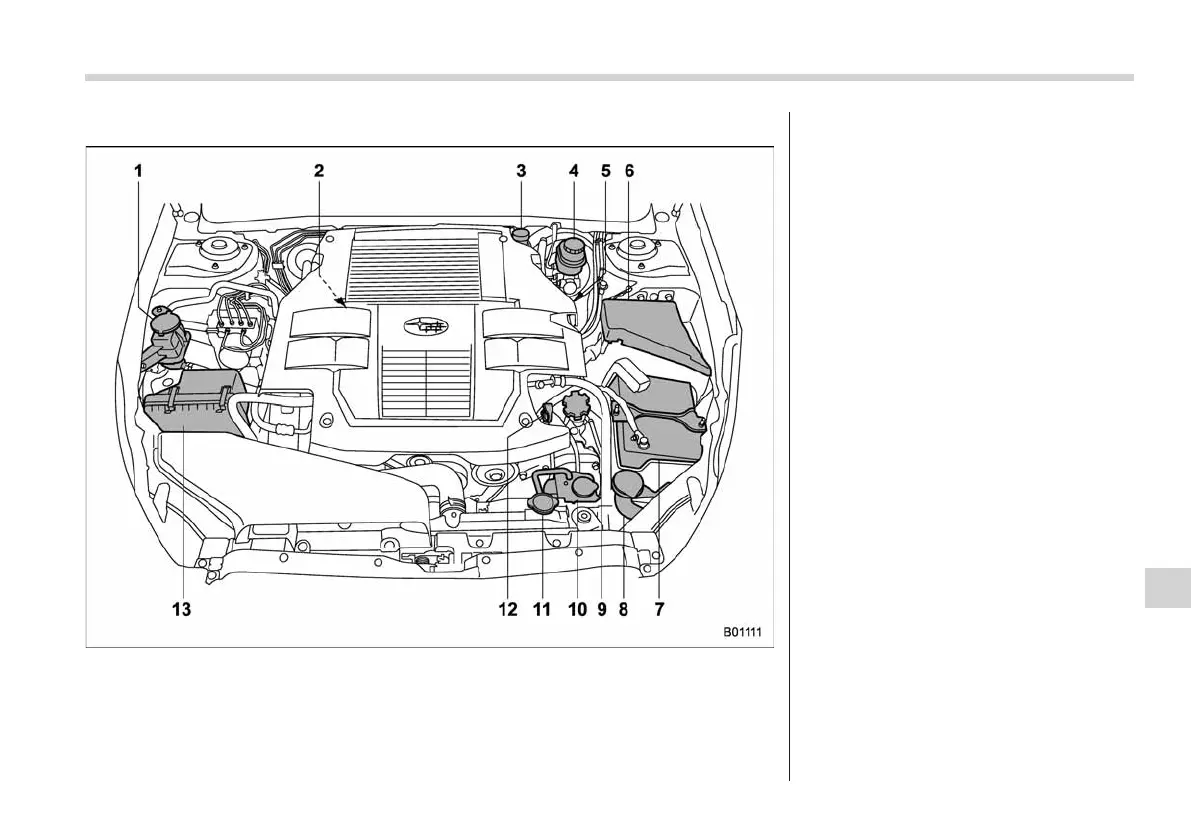

The illustration above is for left-hand drive models. The locations of item No. 3 (clutch
fluid reservoir) and No. 4 (brake fluid reservoir) for right-hand drive models are the
opposite of those shown here.
1) Power steering fluid reservoir
(page 11-36)
2) Manual transmission oil level gauge (MT)
(page 11-32) or Differential gear oil level
gauge (AT) (page 11-34)
3) Clutch fluid reservoir (page 11-38)
4) Brake fluid reservoir (page 11-37)
5) Automatic transmission fluid level gauge
(AT) (page 11-33)
6) Fuse box (page 11-55)
7) Battery (page 11-54)
8) Windshield washer tank (page 11-48)
9) Engine oil filler cap (page 11-18)
10) Engine coolant reservoir (page 11-23)
11) Radiator cap (page 11-23)
12) Engine oil level gauge (page 11-18)
13) Air cleaner case (page 11-25)
Maintenance and service
11-15
