SummaCut User’s Manual
General Information 1-18
right pinch roller is positioned somewhere over the long drive sleeve to suit the
media width. The pinch roller can be lowered anywhere between the two detent
positions of the long drive sleeve to allow for flexibility in holding any media
width.
The alignment strip on the front and at the back can be used for quick reference
if the vinyl has a standard width. The marks “50cm”, “15”/38cm”, “16”/41cm” and
“24”/61cm” can be used to align the right edge of media of that width.
In circumstances where the above does not work, because your media is too
narrow to reach the long drive sleeve, try positioning the left media edge over
the second left drive sleeve and position the right media edge somewhere on
the long drive sleeve. Repeat this process if the media is found still to be too
narrow, locating the left media edge on the third sleeve from the left and
adjusting the right hand position as previously described.

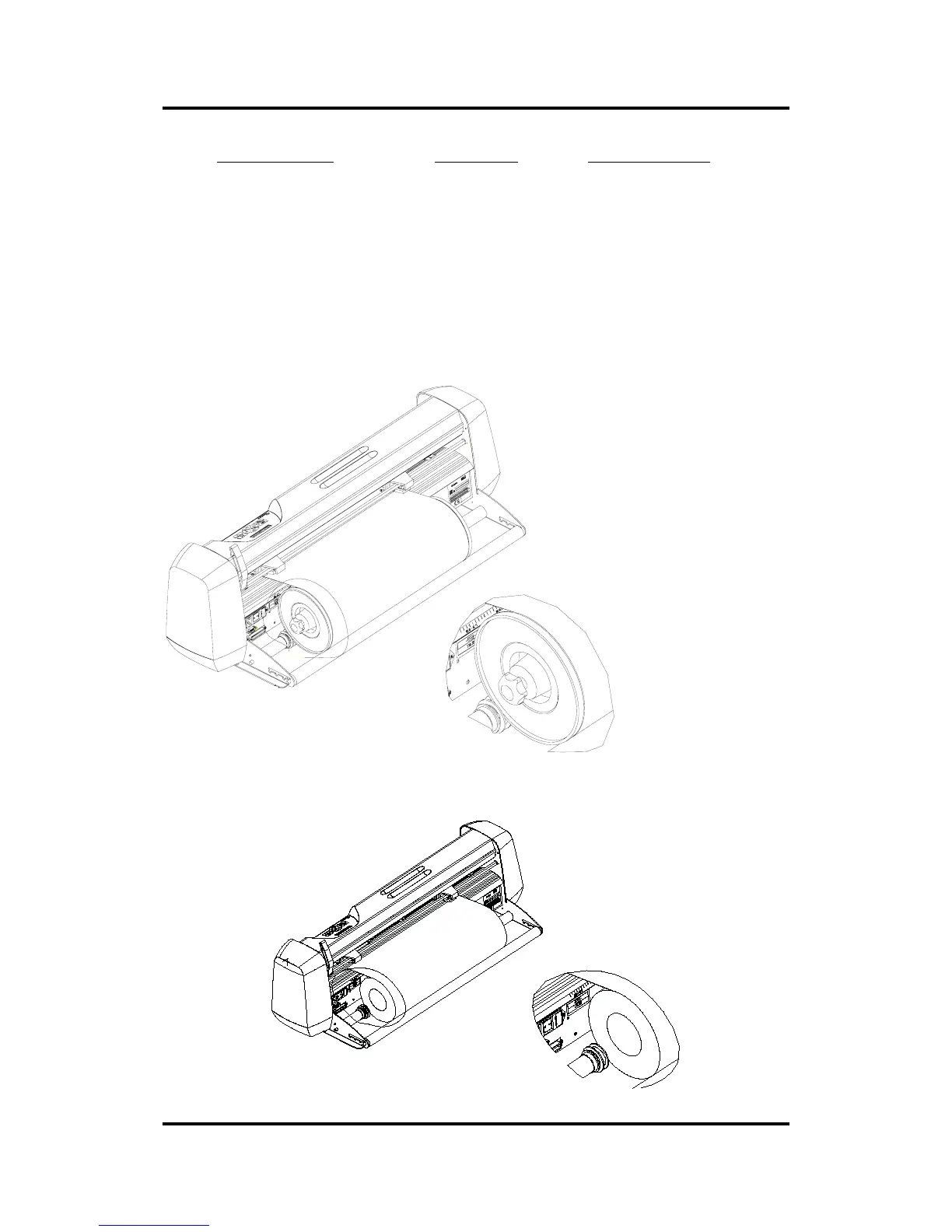

FIGURE 1-6:
FEEDING ROLL MEDIA USING MEDIA FLANGES
FIGURE 1-7:
