FEEDING ROLL MEDIA WITHOUT USING MEDIA FLANGES
4. Make sure that the media follows a straight path from the roll of material.
To accomplish this, you can slide the media roll & guide bushes from the left to
the right along the media support rollers.
5. The pinch rollers should be positioned over the drive sleeves about 3 to 15 mm
(0.1” to 0.6”) away from the media’s outer edges.
For wide media on the D120, D140SE and D160SE units, slide the central low-
pressure roller(s) into position. Ideally, the pinchroller should divide the media in
equal parts and above a drive sleeve.
If the central low-pressure roller does not turn over one of the drive sleeves, you
may have to turn the knob at the back of the low-pressure roller to disable this
roller.
When smaller media is used on the D120, D140SE and D160SE units, the
central low-pressure roller(s) can also be disabled by turning the knob at the
back of the low-pressure roller.

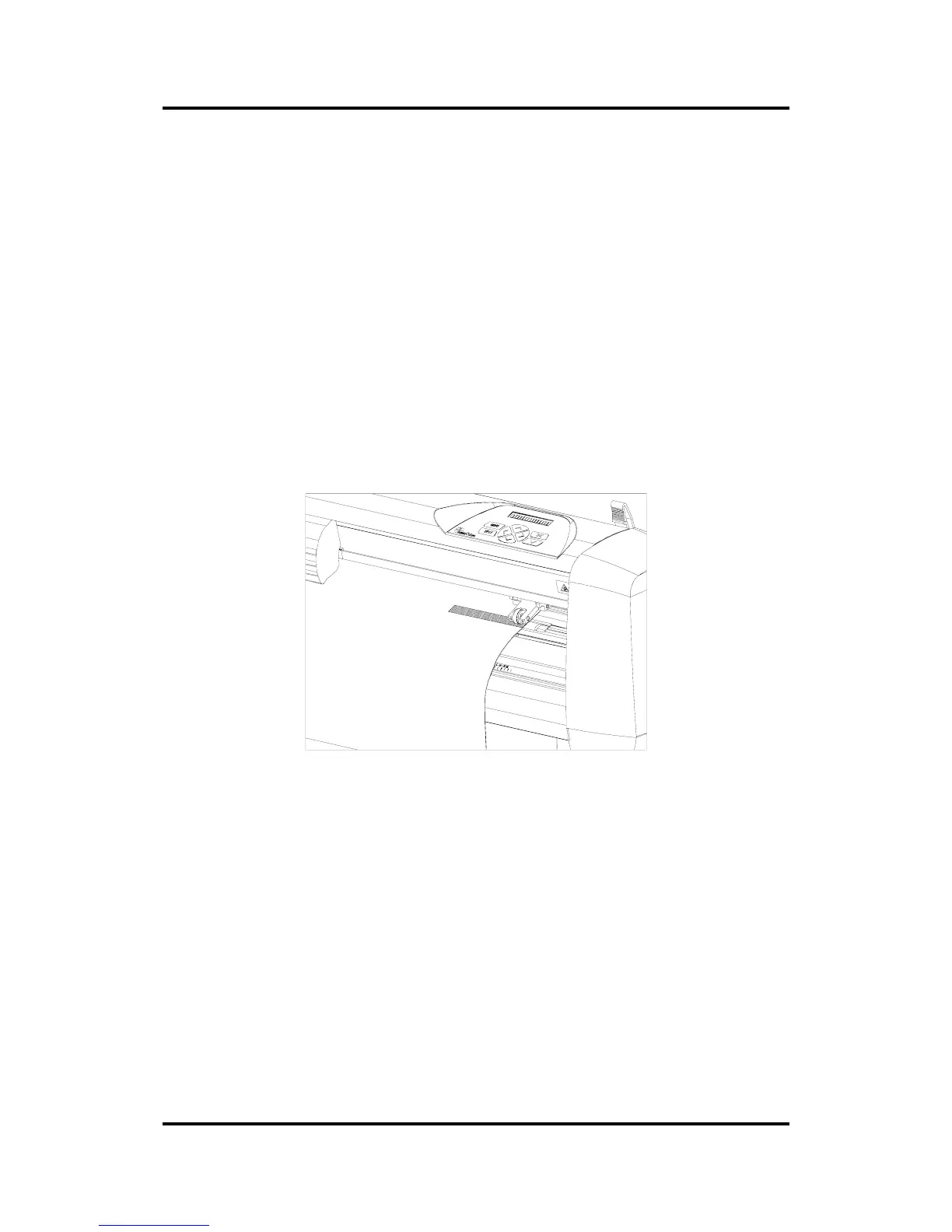

FIGURE 1-8
PINCH ROLLER POSITIONING
