SummaCut User’ s Manual
Contour Cutting 3-3

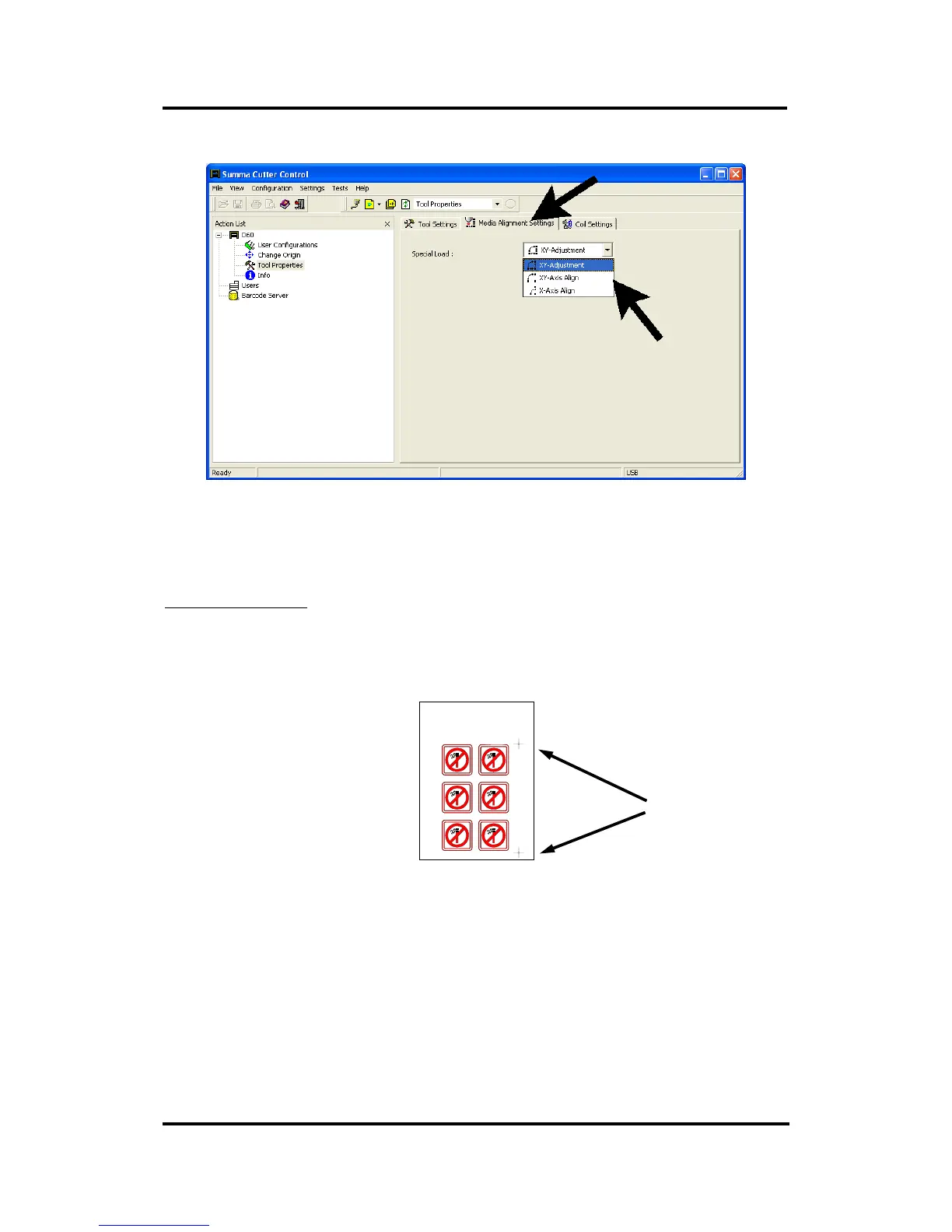

The alignment methods are based on the principle of cross-marks, who are printed
together with the drawing. These cross-marks can be of any type.
There are three alignment methods.
Alignment methods:
1. X-Alignment: counterbalances a “rotated design” problem. For this method, the
origin and one point along the x-axis must be specified. This method only rotates
the contour. It does not require any distance parameters. This is the fastest and
easiest method. It is advised to use this method with small sheets (up to A3 (11” x
17”)).
Origin point
X-axis point
Two cross-marks
are indicating the
origin and the X-
axis.
