Input/Output Connectors B-5

B

B.4 Twisted-Pair Ethernet Connector

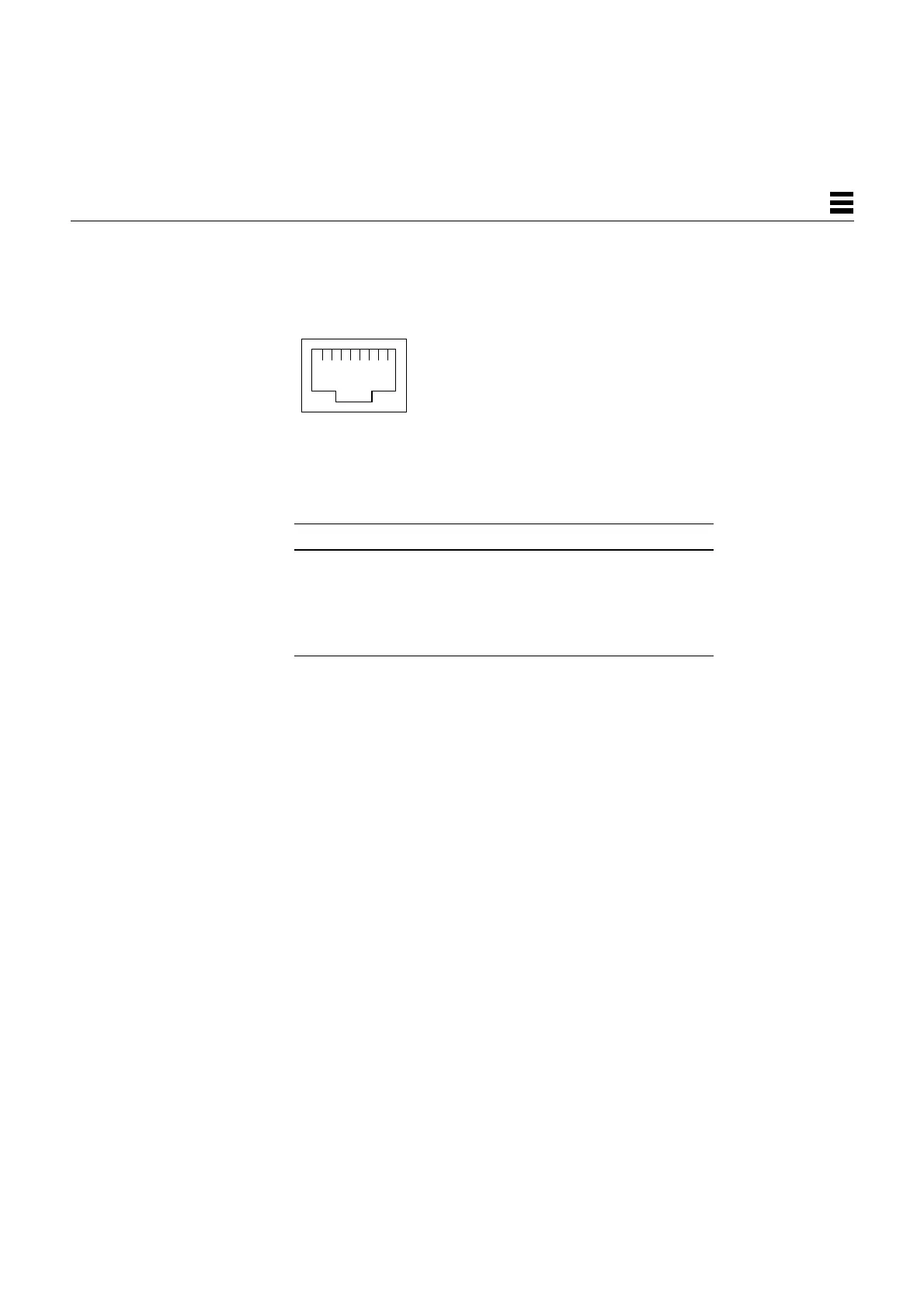

Figure B-4 Twisted-Pair Ethernet Connector

Table B-4 Pinout for Twisted-Pair Ethernet Connector

Pin Description Pin Description

1 Transmit Data + 5 N/C

2 Transmit Data - 6 Receive Data -

3 Receive Data + 7 Presence detect

4 N/C 8 Presence detect
