Storage Devices 9-19
9

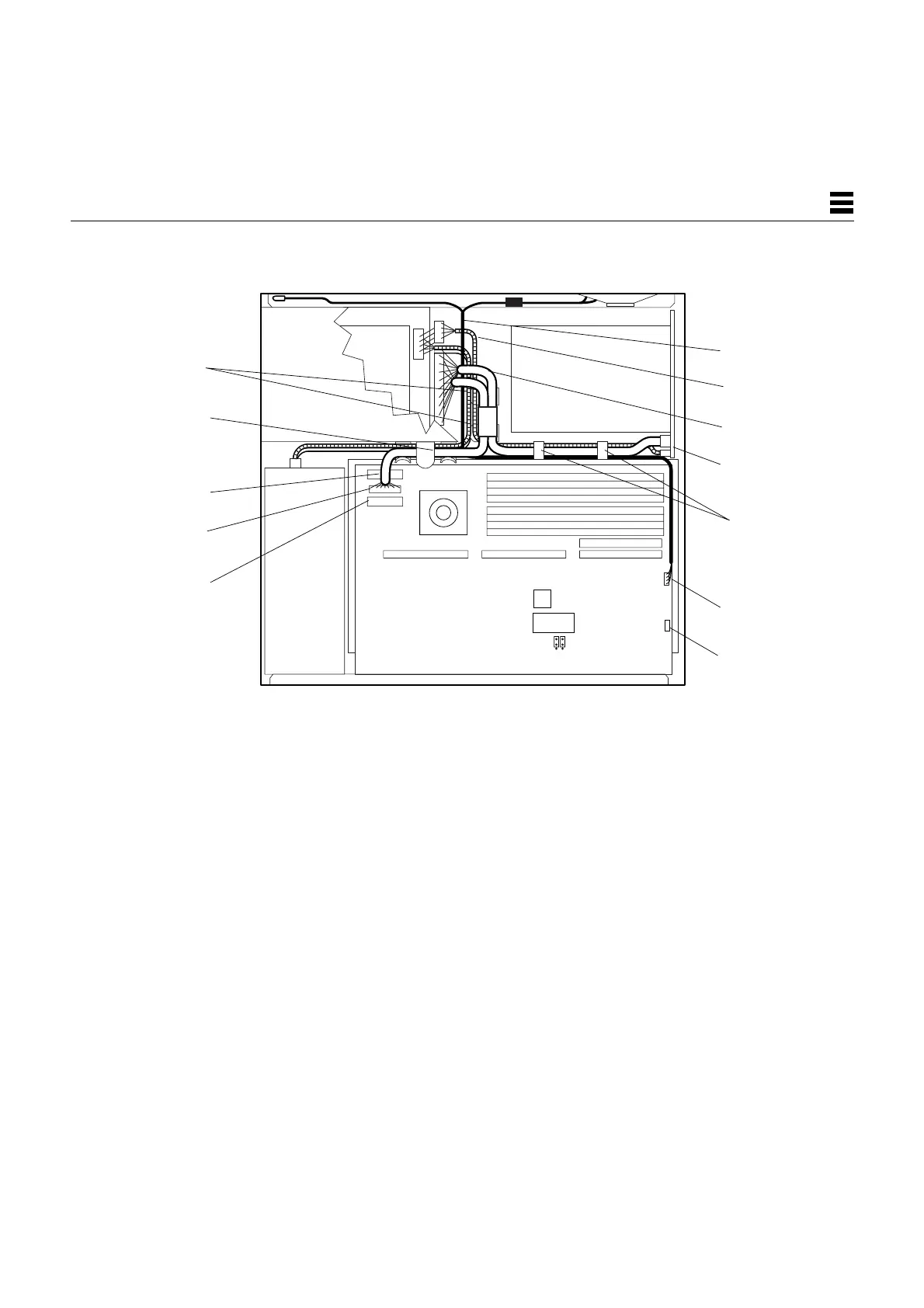

Figure 9-15 Internal Cable Routing
2. Connect the SCSI data cable to the SCSI backplane.
3. Connect the DC power harness to the SCSI backplane.
4. Insert the front edge of the system board into the card guide. Lift the rear
of the board slightly and slide it along the card guide until it is fully
inserted.
See Figure 9-16.
Speaker/LED
Diskette data
connector
SCSI data connector
Speaker/LED cable
SCSI data cable
DC power harness
SCSI backplane
DC power connector
Metal cable clips
Card guide
cable clips
CD-ROM audio
connector
connector
on chassis floor
Metal cable clips
on chassis wall
