9-8 SPARCstation 5 Model 110 Service Manual • November 1996
FIGURE 9-6 Replacing the CD-ROM Drive
5. Detach the wrist strap and replace the cover.
See Chapter 7.
6. Power on the system.
See Section 6.2 “Powering On the System.”
9.3 Diskette Drive
The diskette drive is located under the CD-ROM drive, adjacent to the power
supply. In order to remove or install the diskette drive, you must first remove the
CD-ROM drive if it is present.

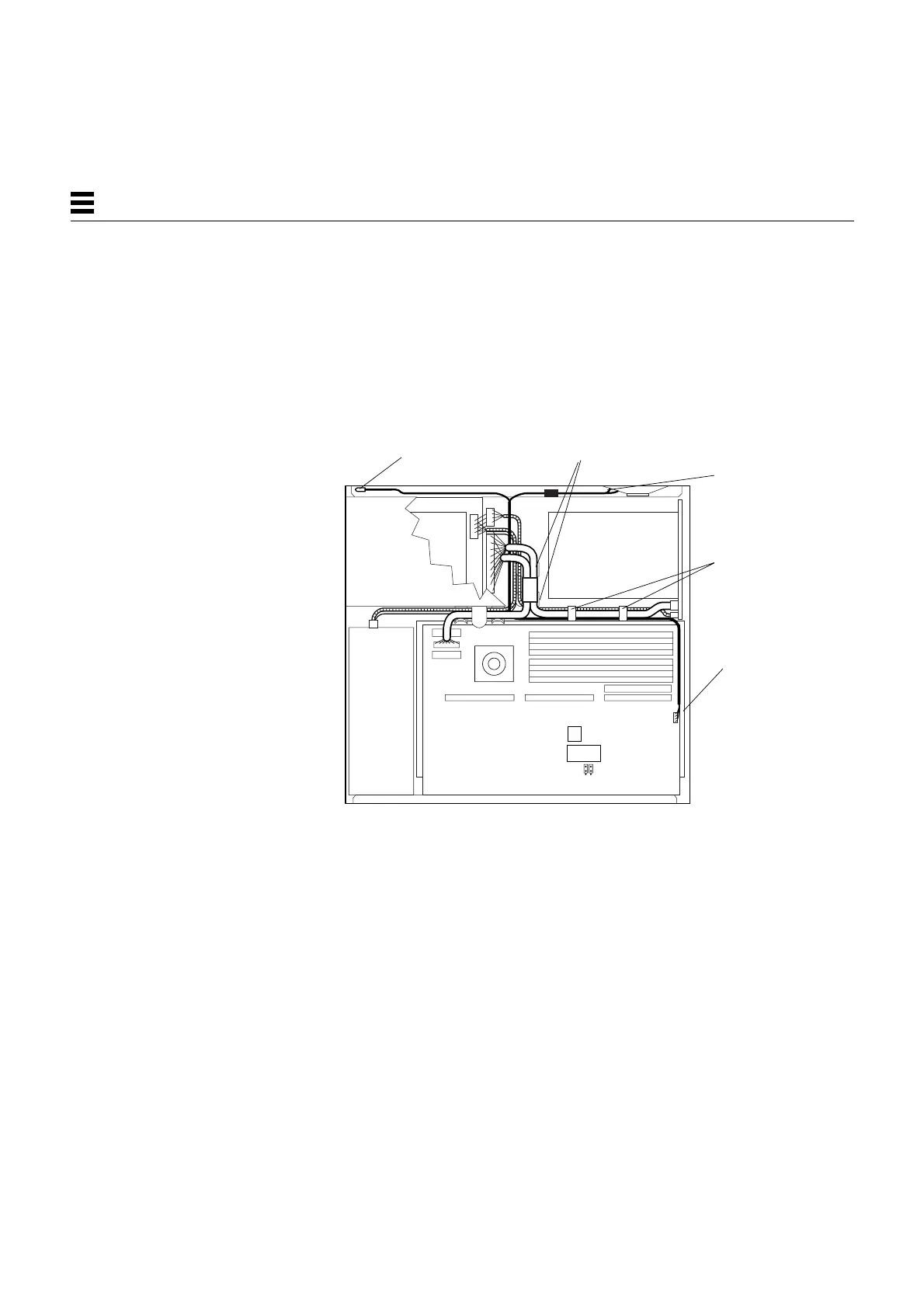

FIGURE 9-7 shows the locations of both drives.
The diskette drive is not a SCSI device. Some of the other drives in your system are
SCSI devices—such as the CD-ROM drive and the hard disk drives. The diskette
drive connects to an 8-bit internal bus in the SPARCstation 5 system.
P2
P2
SCSI
data cable
DC power
cable
Audio cable
SBus slot 3
