9-28 SPARCstation 5 Model 110 Service Manual • November 1996

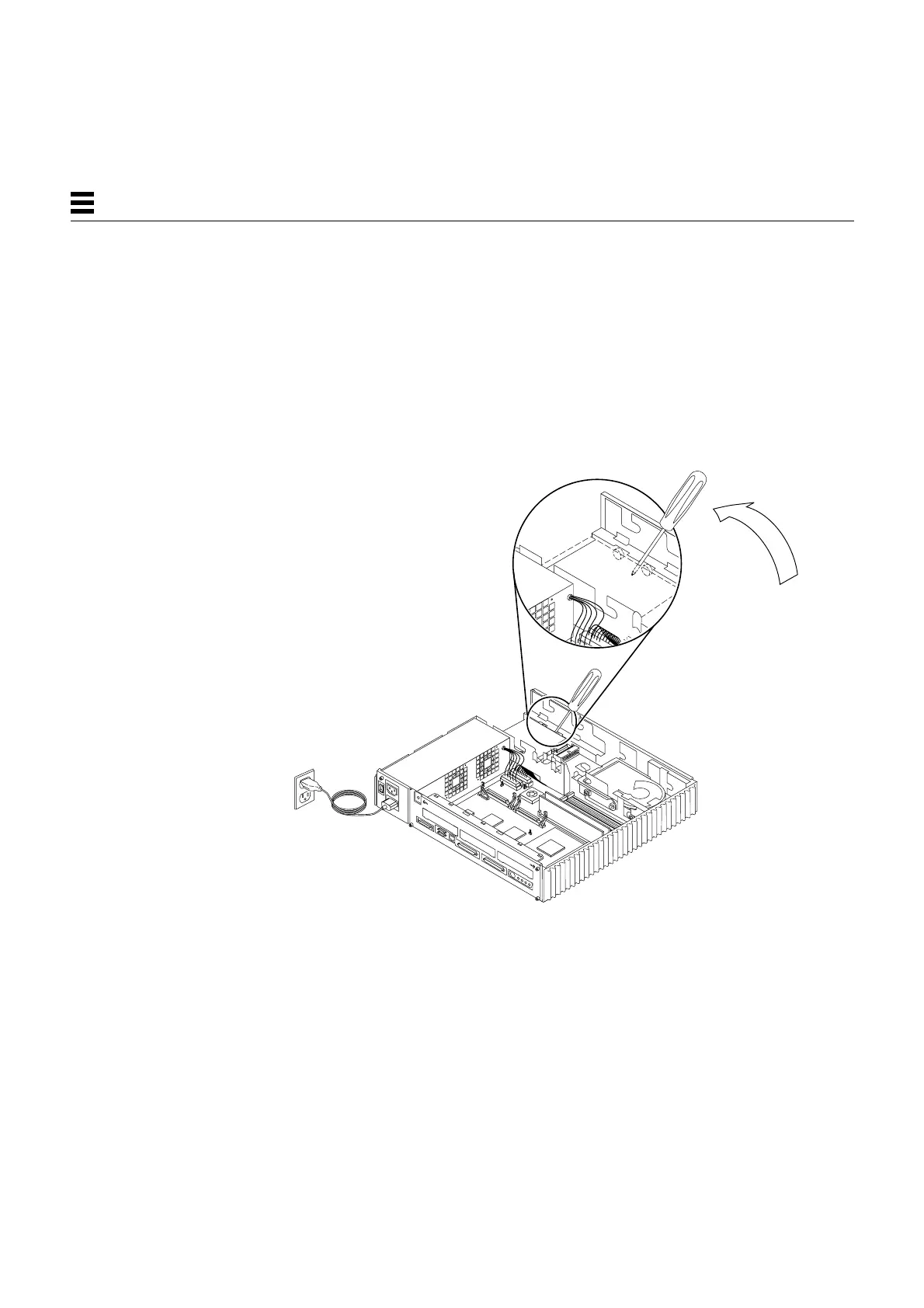

FIGURE 9-26 CD-ROM Audio Connector on the System Board
9.7.2 Replacing the CD-ROM Audio Cable
1. Route the replacement cable in the same manner as the defective cable that you
just removed.
Secure the cable beneath the plastic cable clips on the card guide. See
FIGURE 9-26.
2. Connect the CD-ROM audio cable to the system board.
See
FIGURE 9-26.
3. Connect the CD-ROM audio cable to the audio connector on the CD-ROM drive.
See
FIGURE 9-25.
4. Reinstall the SBus card (if necessary).
See Section 11.1.2 “Replacing an SBus Card.”
5. Detach the wrist strap and replace the cover.
See Chapter 7.
Card guide
cable clips
CD-ROM audio
connector
