4. Attach the SCSI data cable (labeled P2), the DC power cable (also labeled
P2), and the audio cable to the CD-ROM drive.
See Figure 9-6.

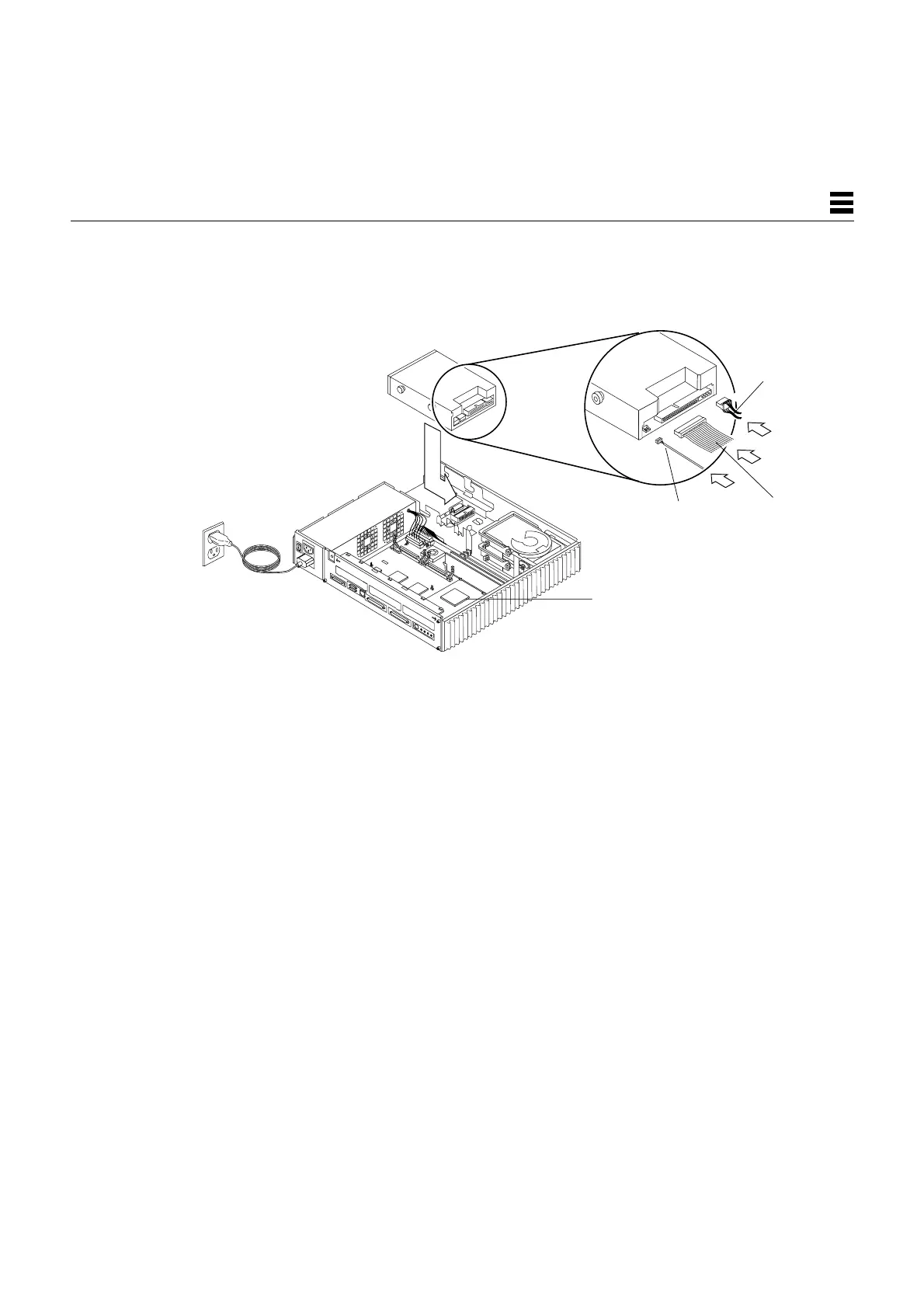

Figure 9-6 Replacing the CD-ROM Drive
5. Detach the wrist strap and replace the cover.
See Chapter 7, “Internal Access.”
6. Power on the system.
See Section 6.2, “Powering On the System.”
9.3 Diskette Drive
The diskette drive is located under the CD-ROM drive, adjacent to the power
supply. In order to remove or install the diskette drive, you must first remove
the CD-ROM drive if it is present. Figure 9-7 shows the locations of
both drives.
The diskette drive is not a SCSI device. Some of the other drives in your system
are SCSI devices—such as the CD-ROM drive and the hard disk drives. The
diskette drive connects to an 8-bit internal bus in the SPARCstation 5 system.
P2
P2
SCSI
data cable
DC power
cable
Audio cable
