9-18 SPARCstation 5 Model 110 Service Manual • November 1996
FIGURE 9-16 Replacing the System Board
5. Reconnect the DC power, SCSI data, diskette data, speaker/LED, and CD-ROM
audio cables to the system board.
See
FIGURE 9-15. Thread the SCSI data cable through the metal cable clips on the
chassis wall after it is plugged in to the system board.
6. Reinstall the SBus card (if necessary).
See Section 11.1.2 “Replacing an SBus Card.”
7. Tighten the two captive Phillips screws that secure the board to the rear of the
chassis.
See
FIGURE 9-17.

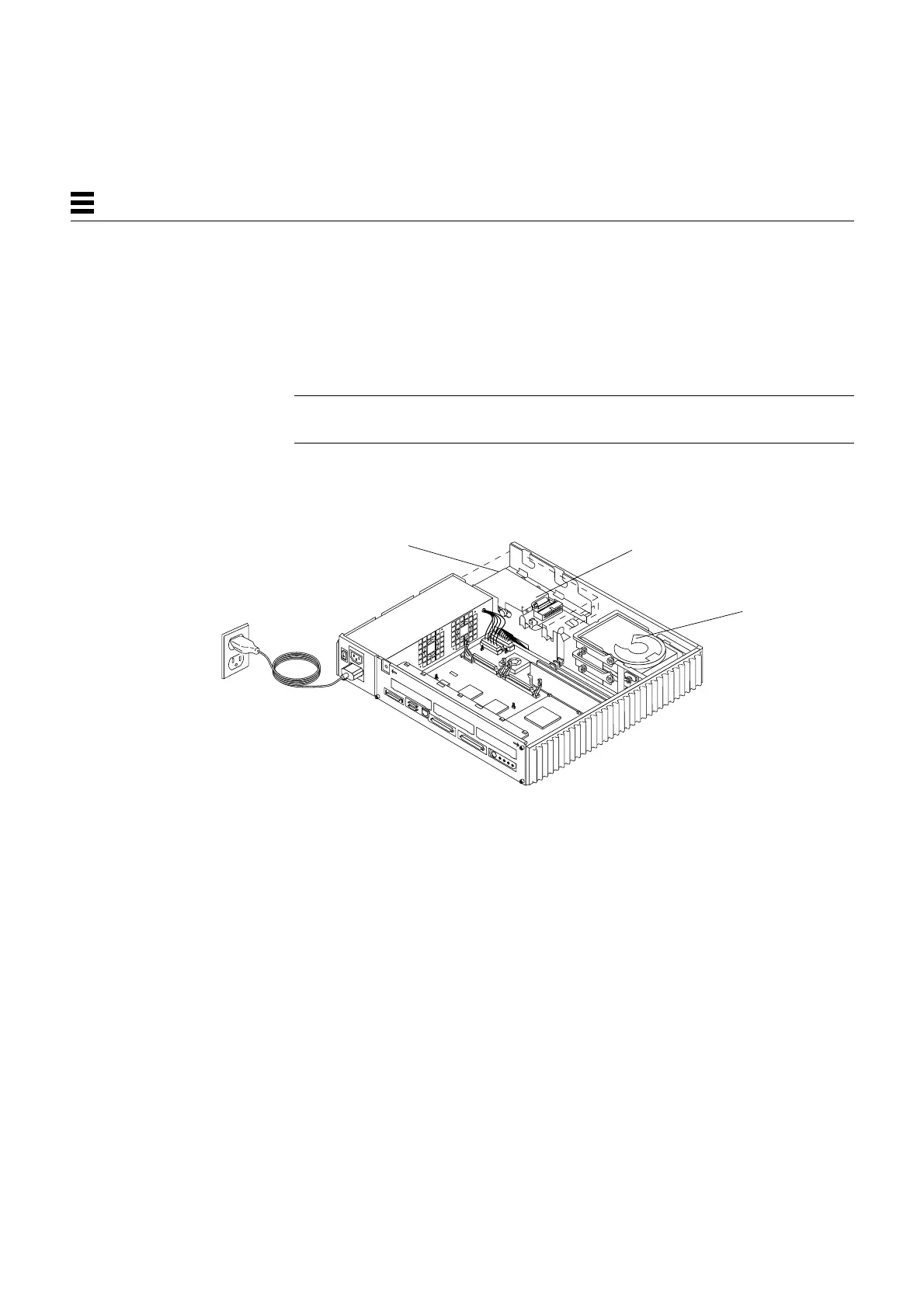

FIGURE 9-17 Backpanel Captive Screws
Card guide
System board
Metal cable clips
on chassis wall
Captive screw
Captive screw
