Chapter 9 Storage Devices 9-27
6. Power on the system.
See Section 6.2 “Powering On the System.”
9.7 CD-ROM Audio Cable
9.7.1 Removing the CD-ROM Audio Cable
1. Shut down and power off the system.
See Section 6.1 “Powering Off the System.”
2. Remove the cover and attach a wrist strap.
See Chapter 7.
3. Disconnect the CD-ROM audio cable from the CD-ROM drive.
See FIGURE 9-25.

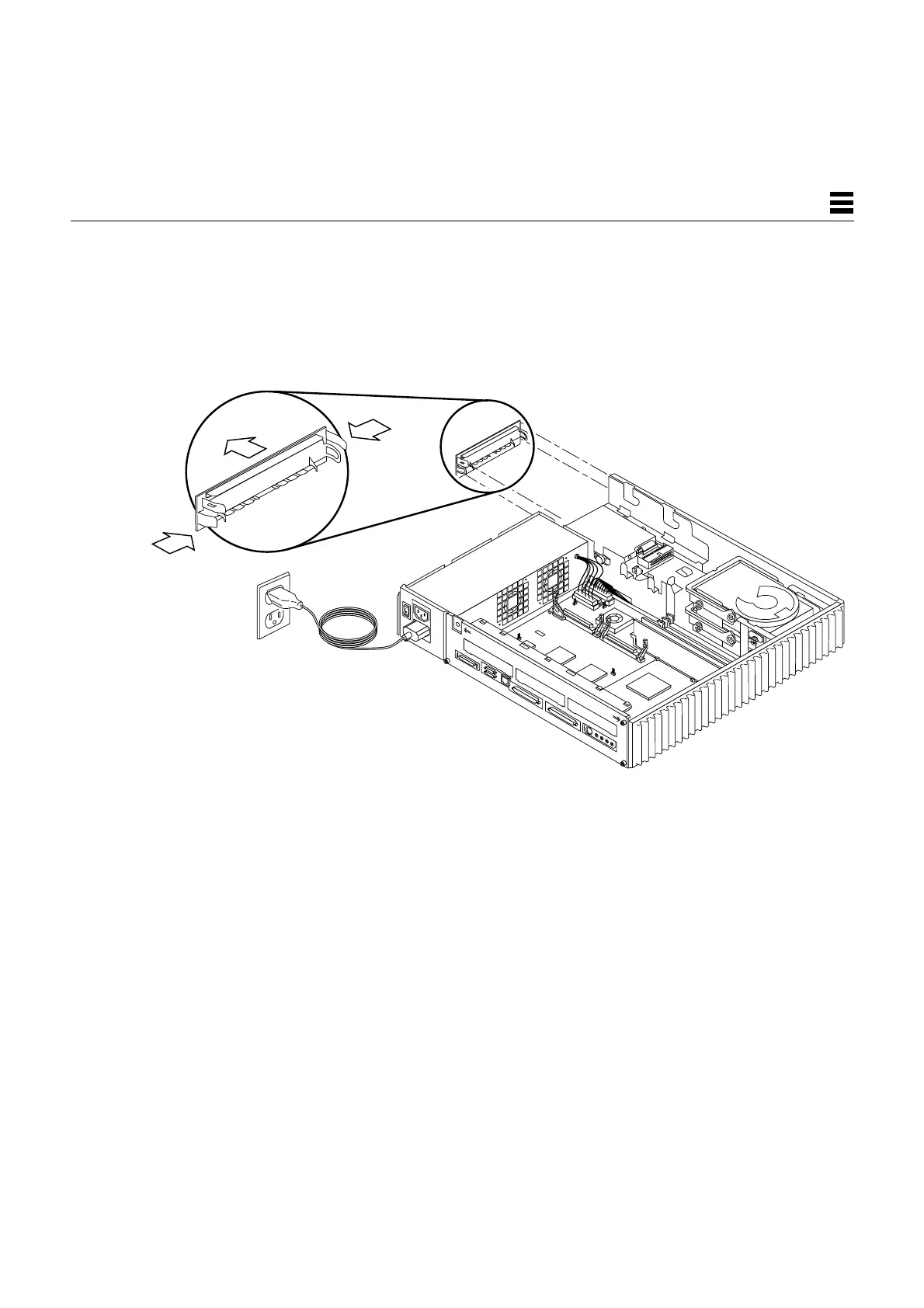

FIGURE 9-25 Audio Cable Connector on the CD-ROM Drive
4. Disconnect the CD-ROM audio cable from its connector on the system board.
See
FIGURE 9-26. You may need to remove an SBus card to access the audio connector.
See Section 11.1.1 “Removing an SBus Card.”
5. Carefully note how the CD-ROM audio cable is routed, and remove it from the
system chassis.
CD-ROM audio
cable connector
