Sun Microsystems SPARCstation 5 Model 110 - Replacing the CD-ROM Drive; FIGURE 9-4 Removing the CD-ROM Drive

9-6 SPARCstation 5 Model 110 Service Manual • November 1996
2. Remove the cover and attach a wrist strap.
See Chapter 7.
3. To disengage the CD-ROM drive, push it toward the edge of the chassis.
See
FIGURE 9-4. The CD-ROM drive is installed above the diskette drive.
4. Disconnect the SCSI data, DC power, and audio cables from the CD-ROM drive.
Leave the cables plugged in to the system board.
5. Lift the drive out of the chassis and place it on an antistatic surface.

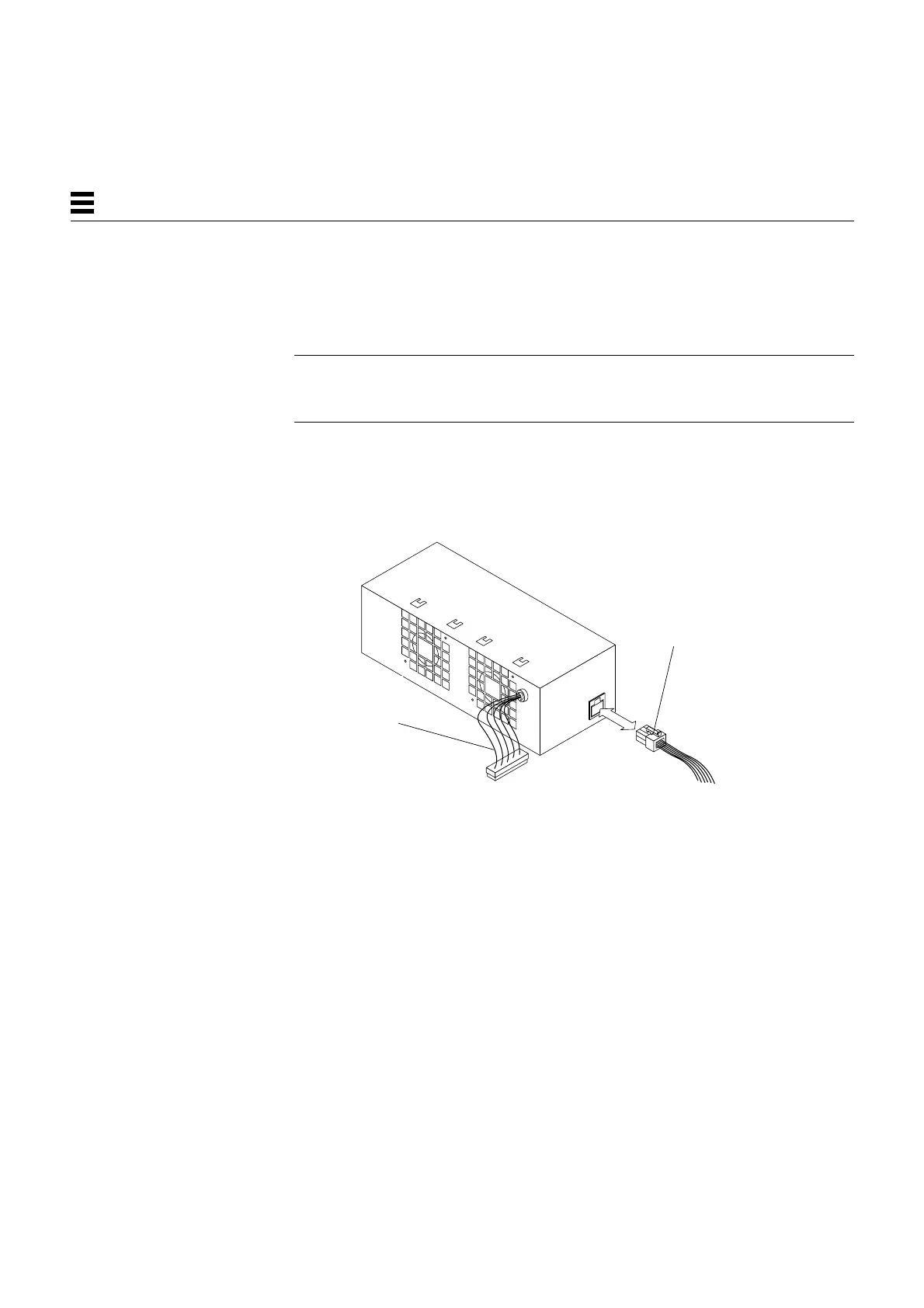

FIGURE 9-4 Removing the CD-ROM Drive
9.2.2 Replacing the CD-ROM Drive
1. Remove the replacement CD-ROM drive from its antistatic bag.
All necessary brackets and grommets are installed on the CD-ROM drive when it is
shipped to you.
2. Ensure that the jumper settings on the replacement drive match those shown in
FIGURE 9-5.
Jumpers should be present for SCSI address 6 (jumpers ID4 and ID2 set) and Term
power should be set, all other jumpers should be removed.
P2
P2
DC power
cable
SCSI data
cable
Audio cable
