12-1
CHAPTER
12
Illustrated Parts Breakdown
This chapter provides an illustrated parts breakdown (IPB) of the major parts that
comprise the SPARCstation 5 system, and a list of customer-replaceable units (CRUs)
and their part numbers.
■ “Illustrations of Selected CRUs” on page 1
■ “Replacement Parts List” on page 4
12.1 Illustrations of Selected CRUs
FIGURE 12-1 through FIGURE 12-4 illustrate selected CRUs for the SPARCstation 5
system.

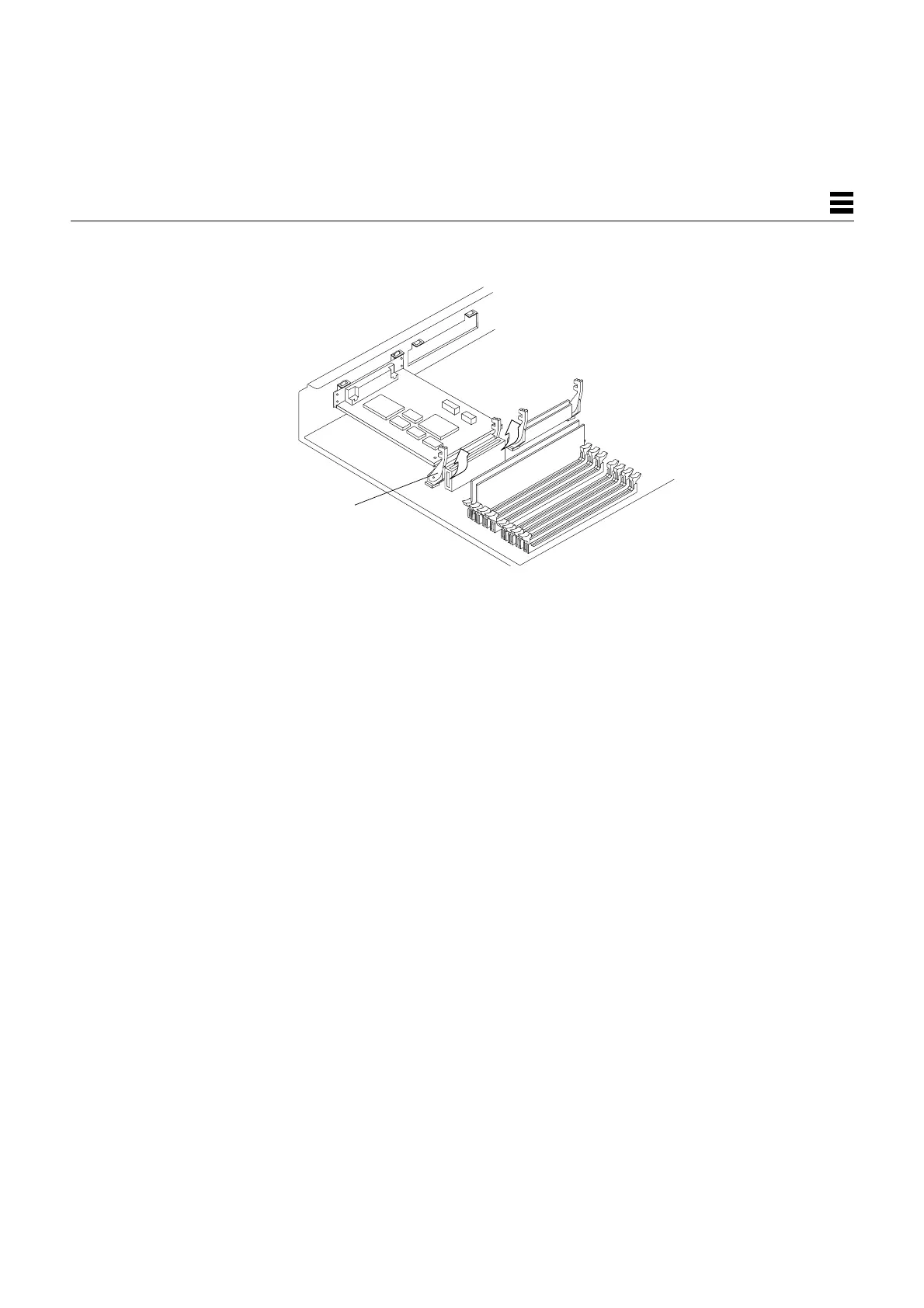

FIGURE 12-1 Selected CRUs in the System Unit
CD-ROM
drive (top)
Diskette drive
(bottom)
Hard drives
(stacked)
DSIMMs
SBus card
System board
Power supply
To Next Page
