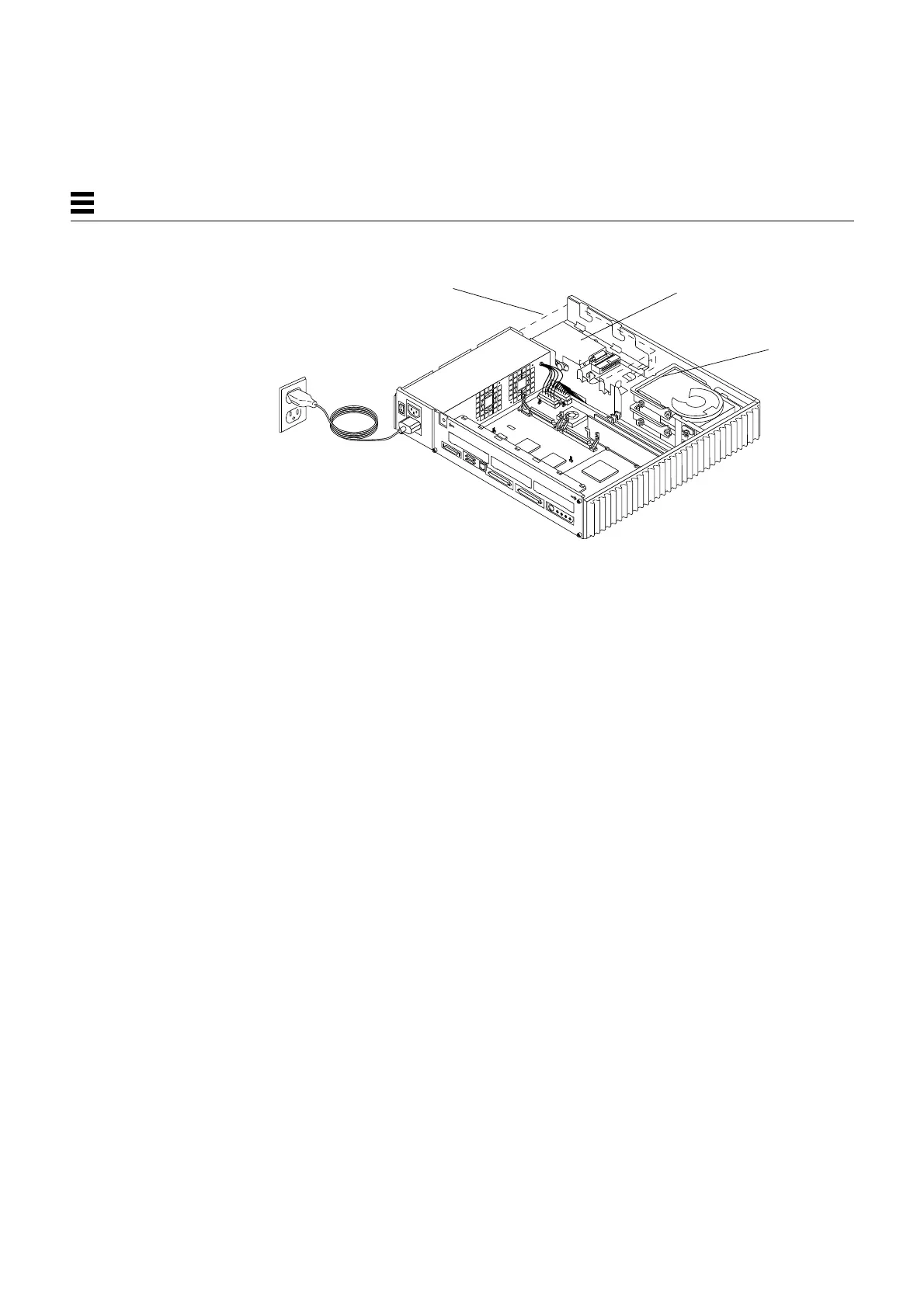

FIGURE 9-24 System Board Cable Routing
9.6.2 Replacing the Diskette Data Cable
1. Route the replacement cable in the same manner as the defective cable that you
just removed.
The cable should run under the first metal cable clip in the chassis floor.
2. Connect the diskette data cable to the system board.
See
FIGURE 9-24.
3. Install the diskette drive.
See Section 9.3.2 “Replacing the Diskette Drive.”
4. Install the CD-ROM drive (if necessary).
See Section 9.2.2 “Replacing the CD-ROM Drive.”
5. Detach the wrist strap and replace the cover.
See Chapter 7.
Diskette data connector
