9-28 SPARCstation 5 Service Manual—November 1996
9
5. Unplug the diskette data cable from the system board.
See Figure 9-24.
6. Carefully note how the diskette data cable is routed, and then remove it
from the system chassis.

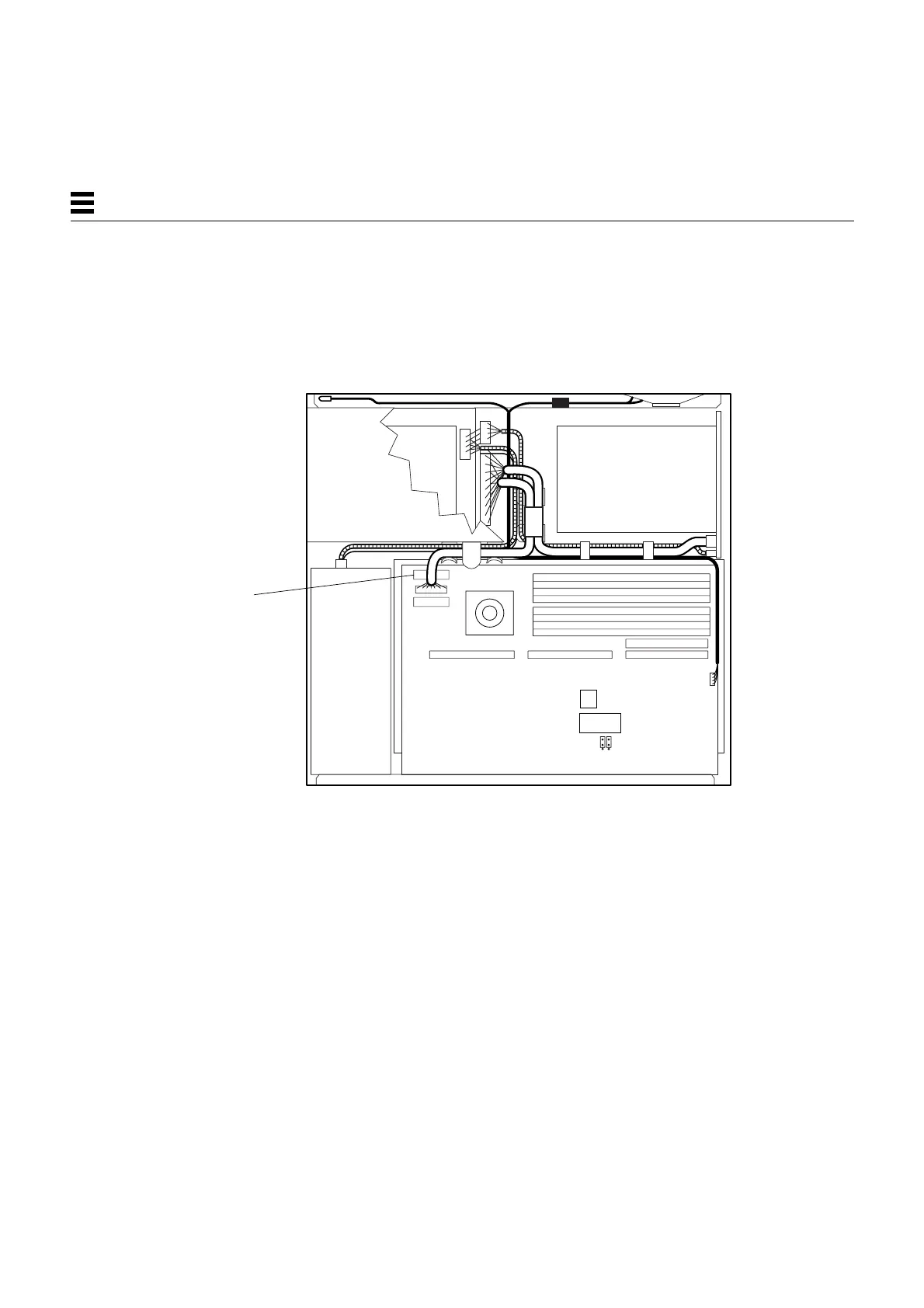

Figure 9-24 System Board Cable Routing
9.6.2 Replacing the Diskette Data Cable
1. Route the replacement cable in the same manner as the defective cable
that you just removed.
The cable should run under the first metal cable clip in the chassis floor.
2. Connect the diskette data cable to the system board.
See Figure 9-24.
Diskette data connector
