Chapter 9 Storage Devices 9-15
5. Loosen the two captive Phillips screws that secure the system board to the rear of
the chassis.
See
FIGURE 9-13.

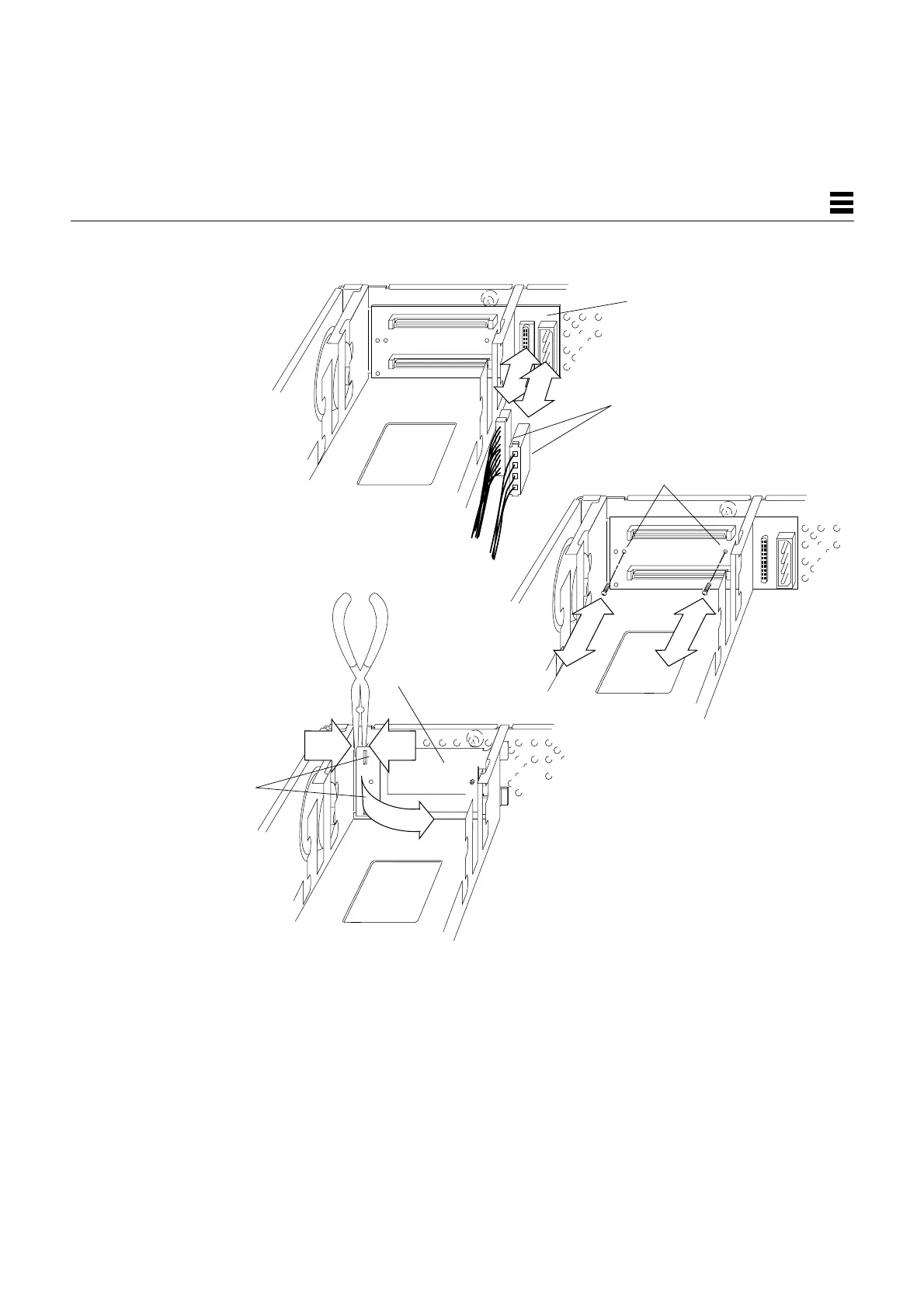

FIGURE 9-13 Rear Panel Captive Screws
6. Pull the board out of the back of the chassis until it clears the plastic card guide.
See
FIGURE 9-14. Place the board on an antistatic surface.
FIGURE 9-14 Removing the System Board
7. Free the SCSI data cable from the metal cable clips on the chassis wall, and from
the plastic cable clips on the card guide.
See
FIGURE 9-12.
Captive screw
Captive screw
Card guide
System board
