Major Subassemblies 8-3
8

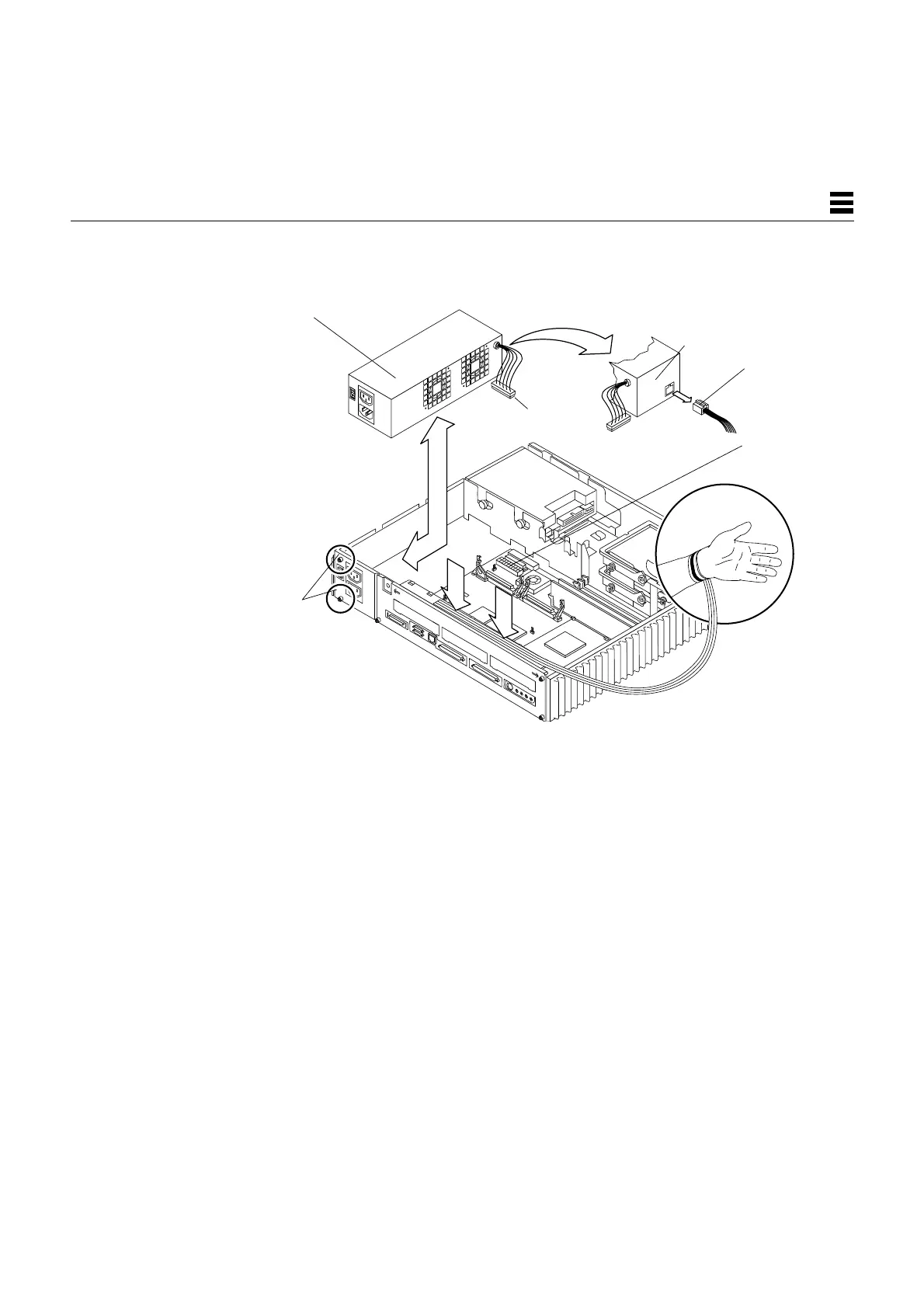

Figure 8-1 Removing the Power Supply
6. Disconnect the power supply connector from the system board.
See Figure 8-1.
7. Slide the power supply toward the chassis front to free it from the
chassis mounts.
See Figure 8-1.
8. Lift the power supply out of the chassis and disconnect the DC power
harness (labeled P1) from the keyed connector on the rear of the
power supply.
See Figure 8-2.
DC power
connector
Power supply
Captive screws
Power supply
rear view
DC power
harness (P1)
Power supply
connector
(some models
have only one)
