10-2 SPARCstation 5 Model 110 Service Manual • November 1996
Caution – Surfaces are hot and may cause personal injury if touched. Avoid contact.
Caution – The system board and related modules and cards have surface-mount
components that may break if the board is flexed.
To minimize the amount of board flexing, observe the following precautions:
■ Hold the system board only by the edges.
■ Do not place the system board, SBus cards, DSIMMs, or chips on a hard surface.
Use a cushioned antistatic mat. See Chapter 12 “Illustrated Parts Breakdown.”
■ Transport the board in an antistatic bag.
Protect yourself and the equipment by observing the safety precautions described in
Chapter 5.
10.3 System Board Layout
FIGURE 10-1 shows the major components on the system board.

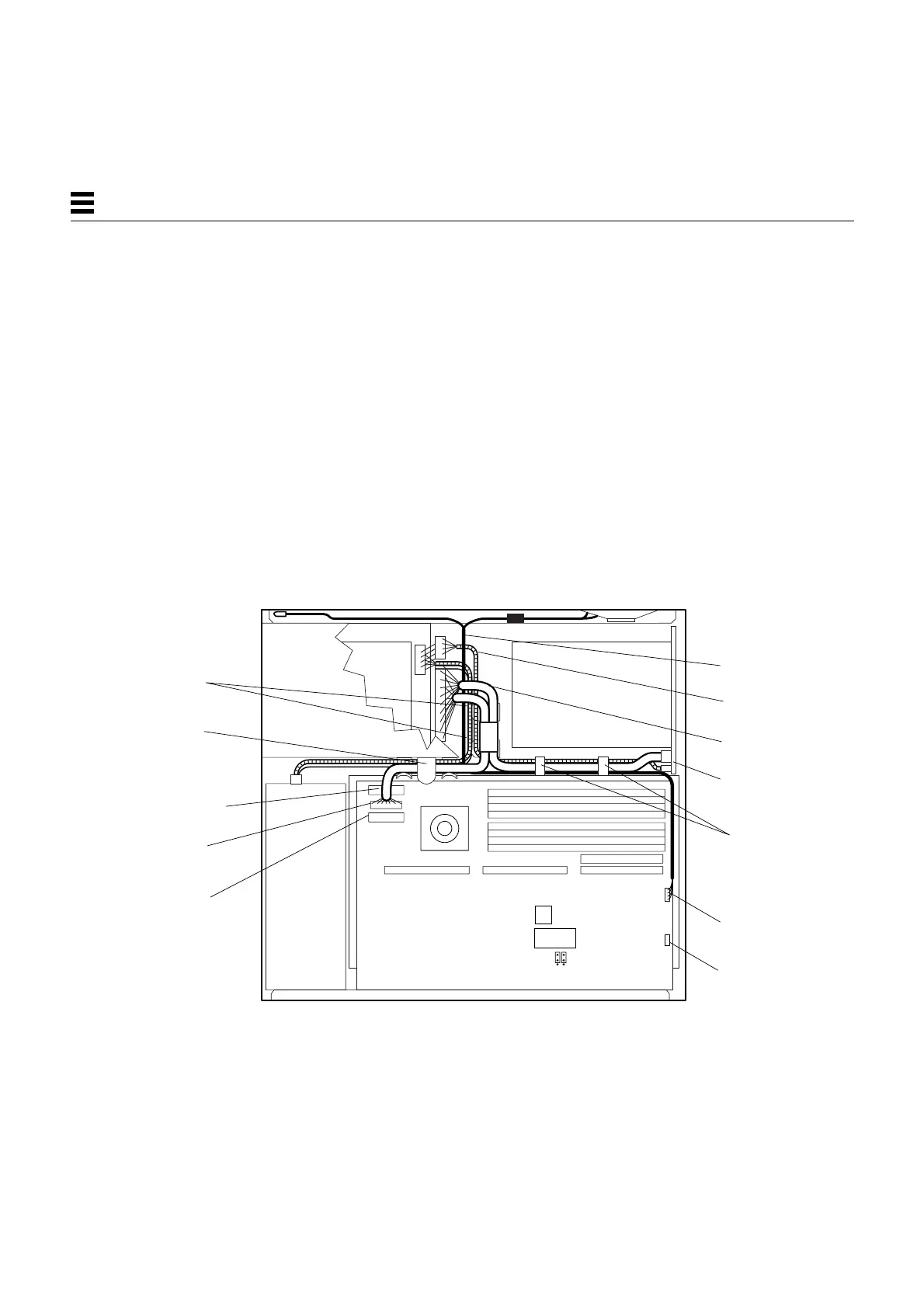

FIGURE 10-1 SPARCstation 5 System Board
SBus slots
DSIMMs
PROM
NVRAM
Speaker/LED
connector
Power connector
Diskette drive
SCSI connector
connector
CD-ROM audio
connector
AFX Bus slot
