Sun Microsystems SPARCstation 5 Model 110 User Manual

System Board and Component Replacement 11-11
11
Note – Before installing the S24 card, inspect the AFX Bus slot for bent pins. Do
not install the S24 card if a pin in the slot is bent. If necessary, straighten bent
pins with needlenose pliers.
3. Holding the replacement S24 card at an angle to the rear panel, insert the
tabs on the card backplate into the corresponding slots on the rear panel.
See Figure 11-12.
4. Carefully align the S24 card connector with the AFX Bus slot on the
system board. Press evenly on the corners of the card to push the
connector into the socket.
Caution – Do not force the card. Align the card connector and slot properly or
you may damage the pins on the card.

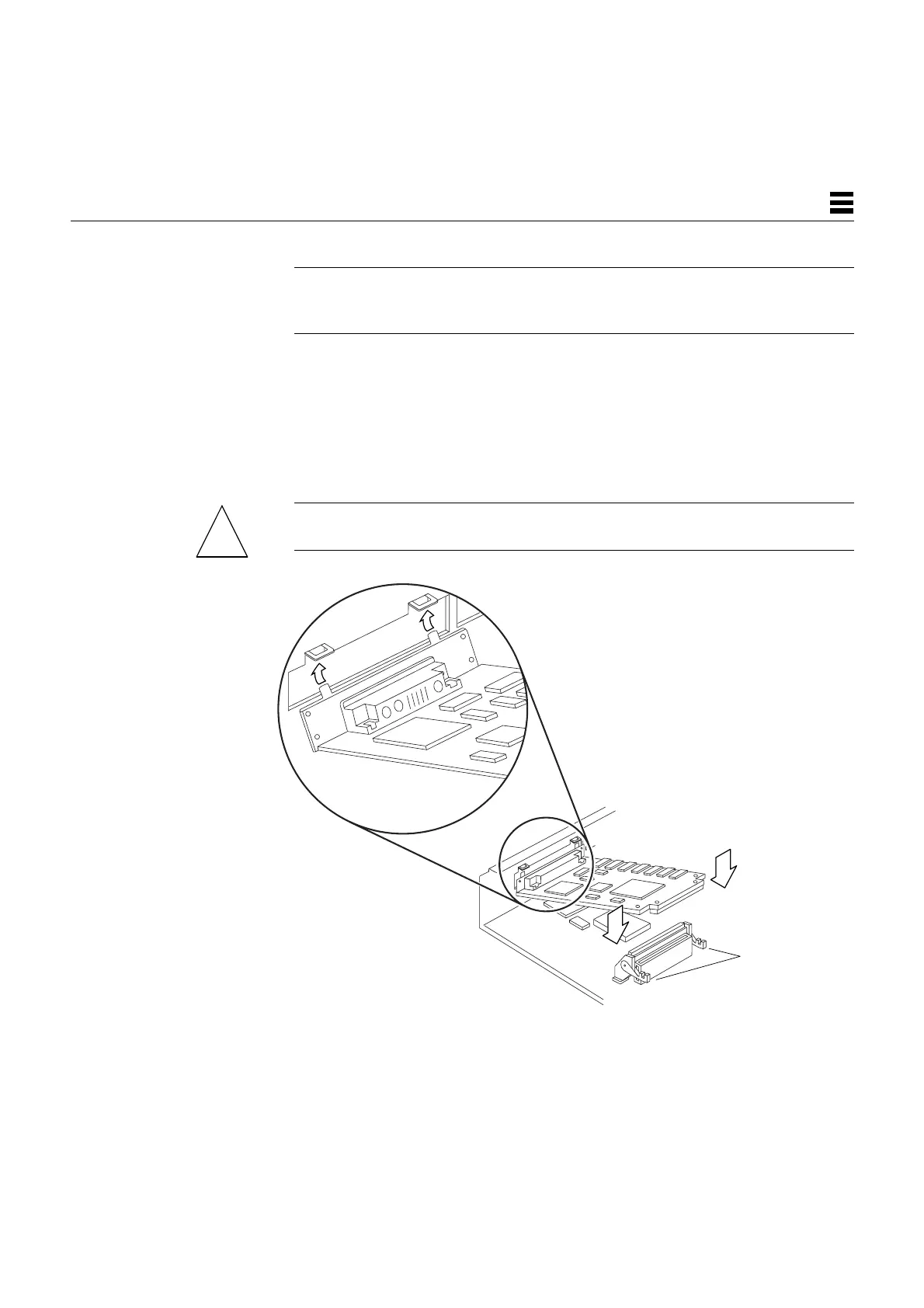

Figure 11-12 Inserting an S24 Frame Buffer Card
!
Open both
card retainers.
