B-4 SPARCstation 5 Service Manual—November 1996
B
B.3 Attachment Unit Interface (AUI) Micro-D Connector

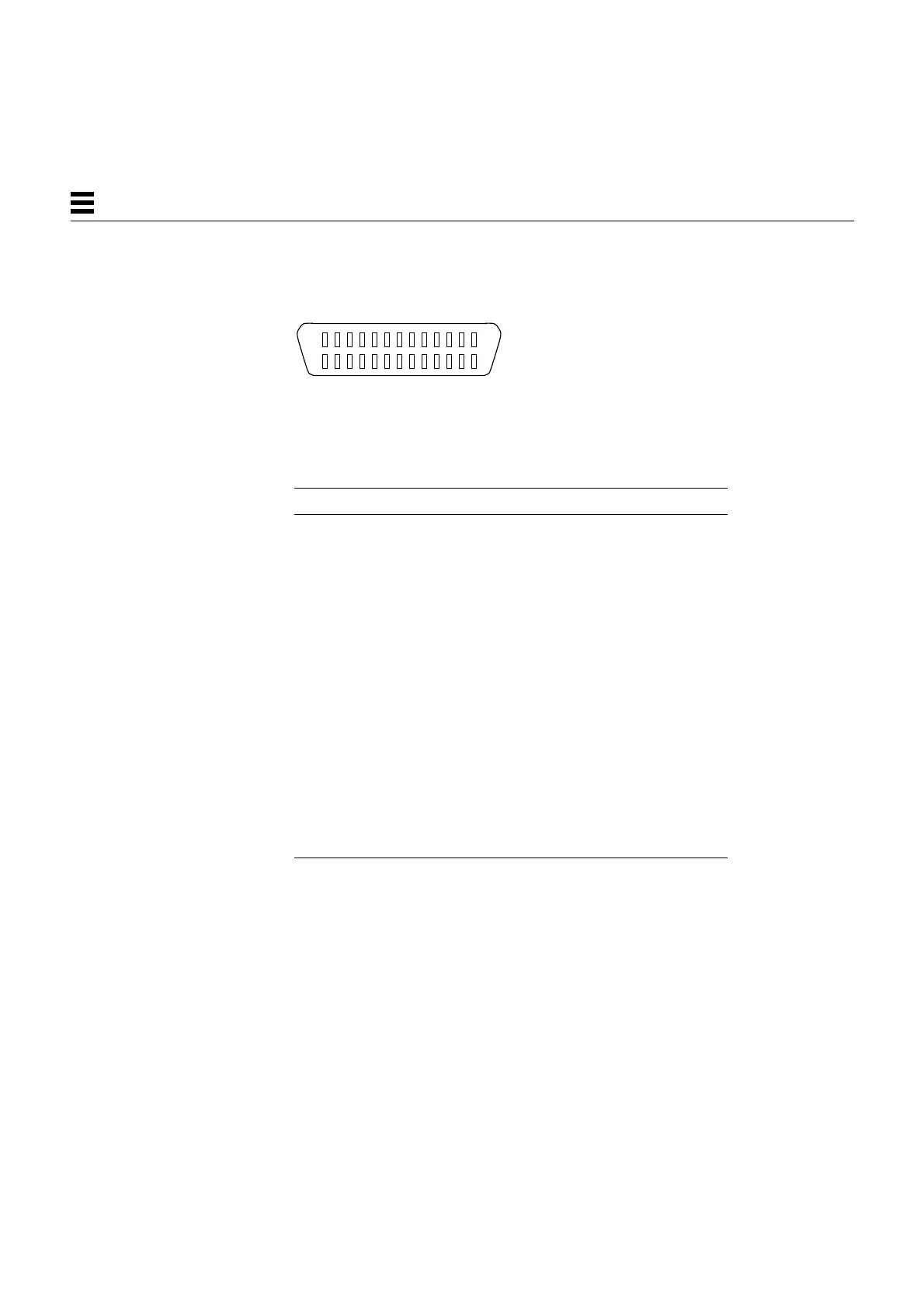

Figure B-3 Attachment Unit Interface (AUI) Micro-D Connector
Table B-3 Pinout for Attachment Unit Interface (AUI) Micro-D Connector
Pin Description Pin Description
1 Transmit - 14 Transmit +
2 Receive + 15 Receive -
3 Collision - 16 Collision +
4 Power 17 Ground
5 N/C 18 N/C
6 N/C 19 N/C
7 N/C 20 N/C
8 N/C 21 N/C
9 N/C 22 N/C
10 N/C 23 Ground
11 N/C 24 Ground
12 N/C 25 N/C
13 N/C 26 Ground
113
26 14
