Chapter 9 Storage Devices 9-23
1. Route the power supply harness (labeled P1) through the metal cable clips on the
chassis wall.
See

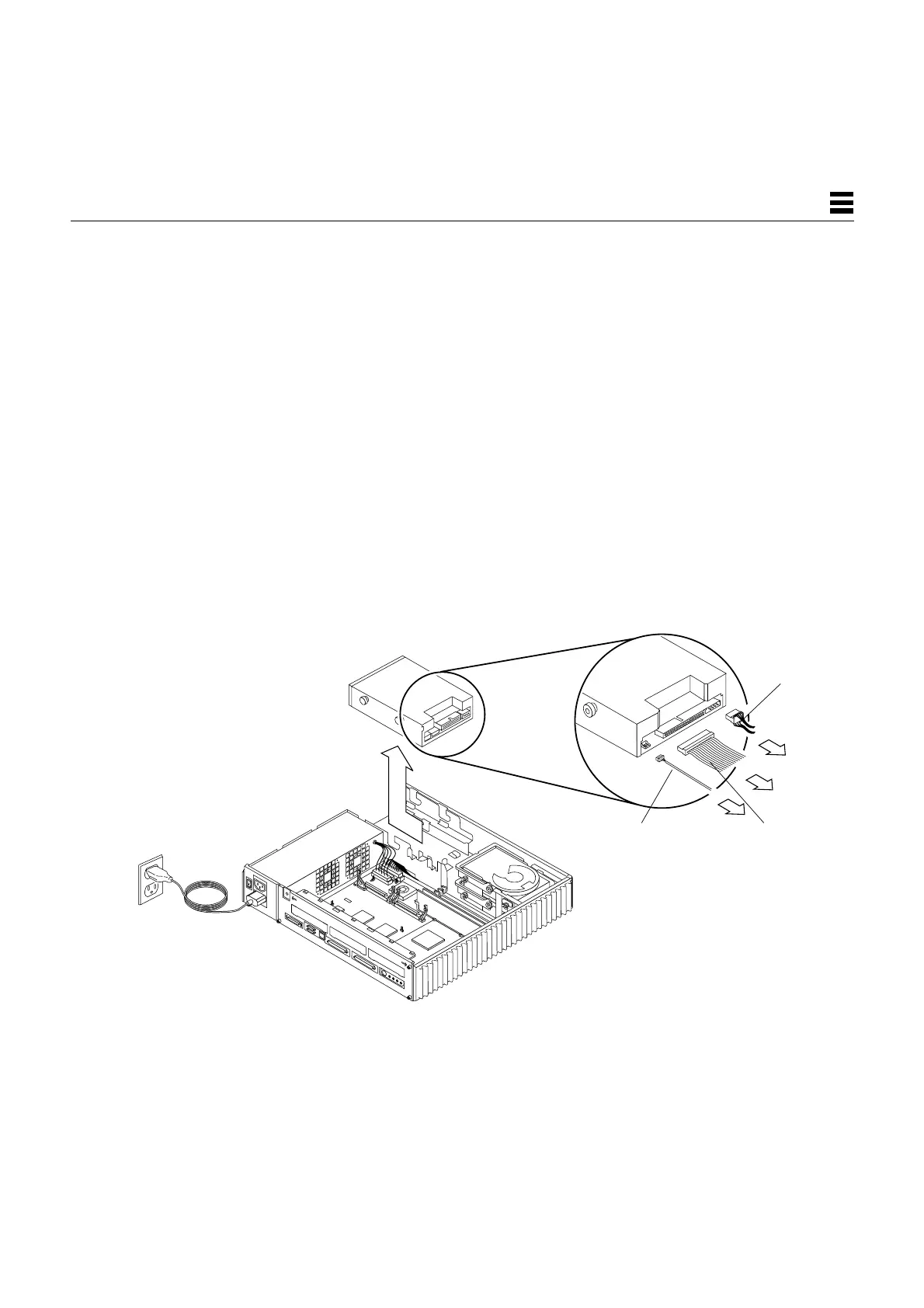

FIGURE 9-21. The two colored tape marks on the DC power harness should
straddle the cable clips.
2. Route the SCSI backplane DC power harness (labeled P3) under the plastic cable
clips on the card guide to the SCSI backplane.
See
FIGURE 9-21.
3. Thread the diskette drive DC power harness (labeled P4) through the hole in the
chassis wall with the diskette data cable.
See
FIGURE 9-22.
4. Route the SCSI data cable (labeled P1) between the plastic clips at the rear of the
card guide and connect it to the SCSI backplane.
See
FIGURE 9-21.
5. Connect the DC power harness (labeled P3) to the SCSI backplane.
See
FIGURE 9-21.
6. Reinstall the power supply.
See Section 8.1.2 “Replacing the Power Supply.”
7. Connect the DC power harness (labeled P4) to the diskette drive (if present).
8. Insert the front edge of the system board into the card guide. Lift the rear of the
board slightly and slide it along the card guide until it is fully inserted.
See
FIGURE 9-22.
