Generator & Battery Page
Tocongurebatterychargingsettings,clickontheBATTERYiconandthenon‘BattCharge’.

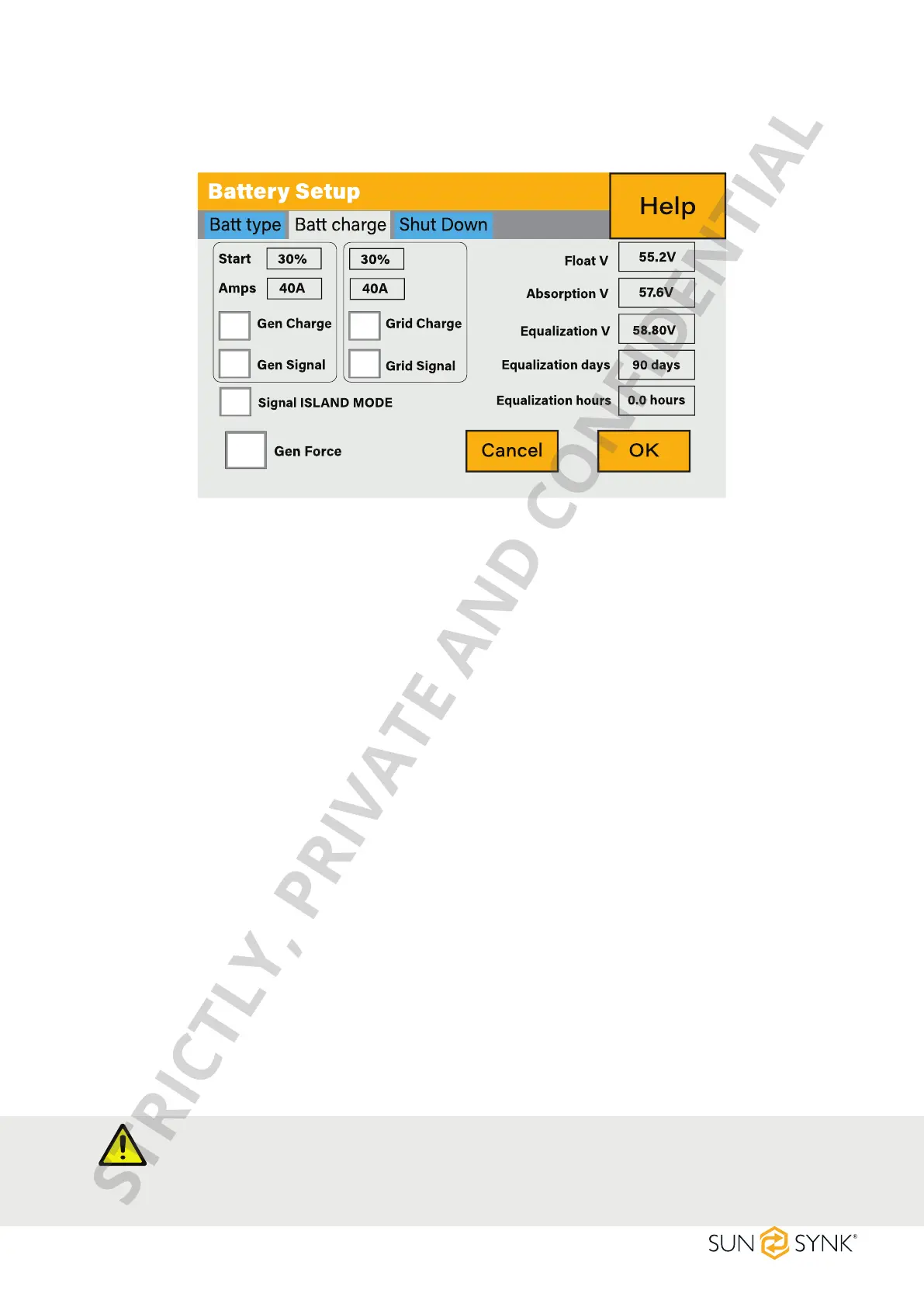

What this page displays:
 Start: Generator start voltage/SOC %. S.O.C at 30% system will AutoStart a connected generator to
charge the battery bank.
 Amps: Charge rate of 40A from the attached generator in Amps.
 Grid power start voltage/SOC %: No use. Just for customization.
 Grid Amps: Current that the grid charges the battery.
 Gen Charge: Uses the GEN input of the system to charge the battery bank from an attached generator.
 Gen Signal: Normally open (NO) relay that closes when the Gen Start signal state is active.
 Gen Force: When the generator is connected, it is forced to start without meeting other conditions.
 Grid Charge: It indicates that the grid will charge the battery.
 Grid Signal: This indicates when the grid should no longer charge the battery.
 Signal ISLAND MODE:When"signalislandmode"ischeckedandtheinverterconnectsthegrid,theATS
portvoltagewillbe0.When"signalislandmode"ischeckedandtheinverterisdisconnectedfromthe
grid, the ATS port voltage will output 230Vac. This feature and outside NO type relay can realize N and PE
disconnection or bond.
 Float V: The voltage at which a battery is maintained after being fully charged. Float V for an AGM battery
is 55.20V.
 Absorption V: The level of charge that can be applied without overheating the battery. Absorption V is
for an AGM battery is 57.60V.
 Equalization V: Equalizing charge/overcharge to remove sulfate crystals that build up on the plates over
time on lead-acid batteries. Equalization V for an AGM battery is 58.80V.
NOTE:
Do not alter these settings too often on the same battery, as it may damage the battery.
