Grid Supply Page

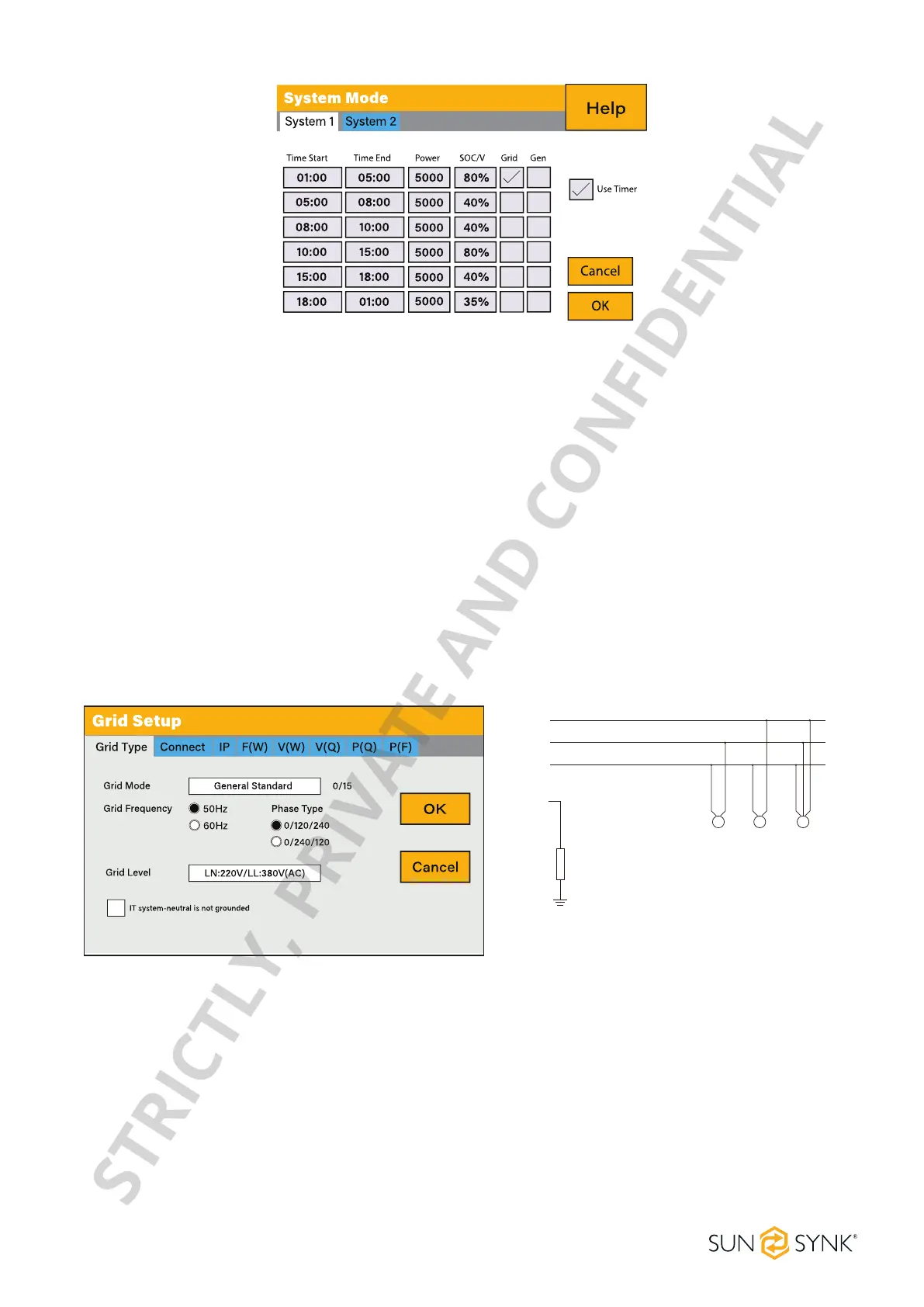

In the Settings menu, click on the GRID icon.
What this page displays:
 Grid Mode: General Standard, UL1741 & IEEE1547, CPUC RULE21, SRD-UL-1741, CEI 0-21, Australia
A, Australia B, Australia C, EN50549_CZ-PPDS(>16A), NewZealand, VDE4105, OVE_Directive R25. Please
follow the local grid code and then choose the corresponding grid standard.
 Grid Level:Thereareseveralvoltagelevelsfortheinverteroutputvoltageino-gridmode.LN:230VAC,
LL:400VAC, LN:240VAC LL:420VAC, LN:120VAC, LL:208VAC, LN:133VAC, LL:230VAC.
 IT system: For the IT grid system, the Line voltage (between any two lines in a three-phase circuit) is
230Vac. If your grid system is an IT system, please enable “IT system” and tick the “Grid level” as 133-3P,
as the picture above shows.
Example:
During 01:00-05:00, when the battery SOC is lower than 80%, it will use the grid to charge the battery until
the battery SOC reaches 80%.
During 05:00-08:00 and 08:00-10:00, when battery SOC is higher than 40%, the hybrid inverter will discharge
the battery until the SOC reaches 40%.
During 10:00-15:00, when the battery SOC is higher than 80%, the hybrid inverter will discharge the battery
until the SOC reaches 80%.
During 15:00-18:00, when the battery SOC is higher than 40%, the hybrid inverter will discharge the battery
until the SOC reaches 40%.
During 18:00-01:00, when the battery SOC is higher than 35%, the hybrid inverter will discharge the battery
until the SOC reaches 35%.
U
V
W
220VAC
Rz
220VAC 220VAC
N
Rz: Large resistance ground resistor. Or the
system doesn't have a Neutral line.
