Advanced Function Setup
System selfcheck: Disable. This is only for the
factory.
Signal ISLAND MODE: If"Signalislandmode"is
checkedandWhentheinverterisino-gridmode,
the relay on the Neutral line (load port N line) will
switch ON then the N line (load port N line) will bind
to the inverter ground.
BMS_Err_Stop: When it is active, if the battery BMS
fails to communicate with an inverter, the inverter
will stop working and report fault.
Backup Delay: Reserved.
Gen Peak-shaving: When the generator's power
exceeds its rated value, the inverter will provide the
redundant part to ensure that the generator will
not overload.
ATS: It is related to ATS port voltage. It is better in
ATSON"uncheck"position.

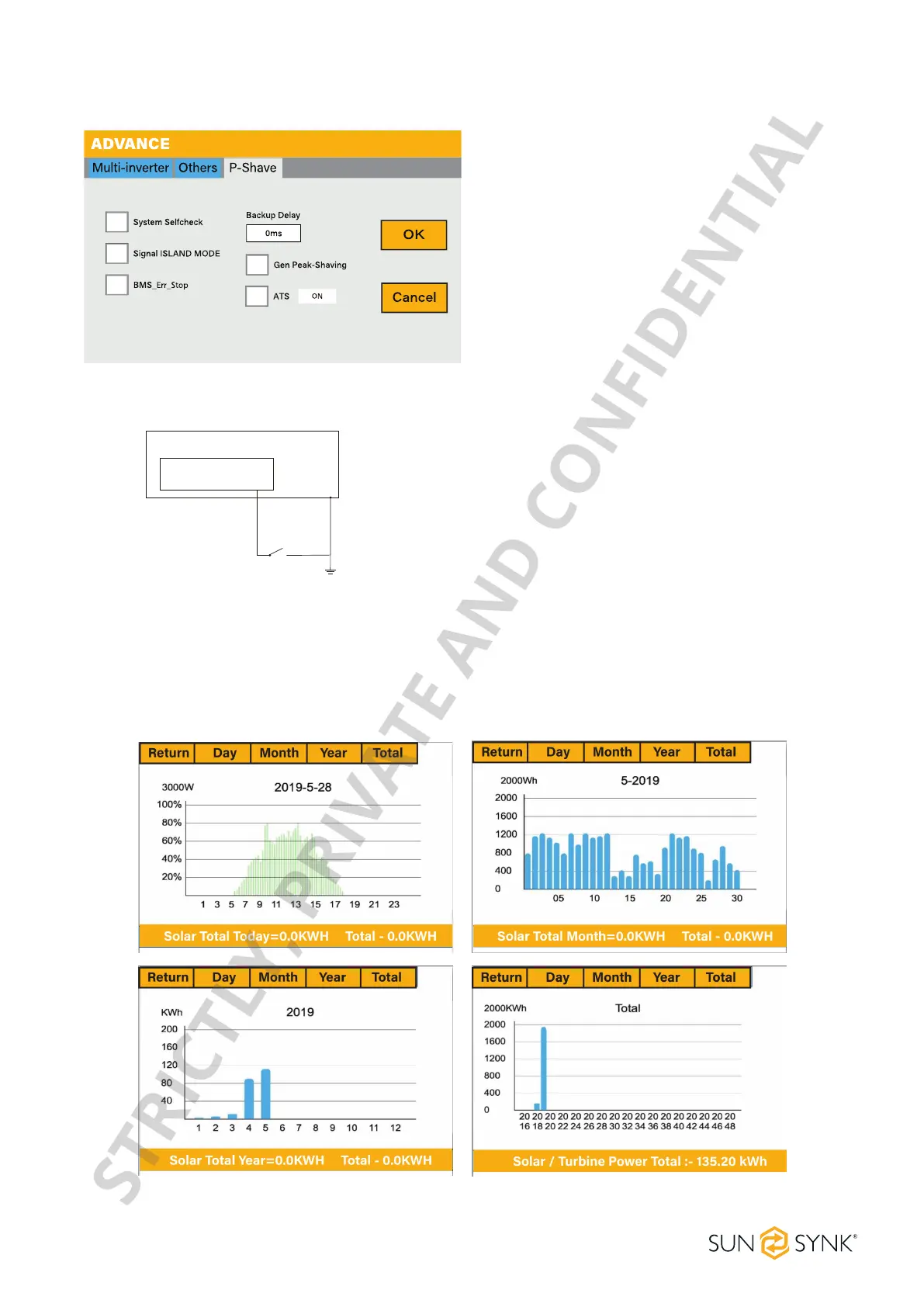

For more details, please refer to the left-side pic-
ture.
L1 L2 L3 N
Load port
Inverter
Shell
Relay
Ground cable
Inverter
Solar Power Generated
This page shows the daily, monthly, yearly, and total solar power produced. Access this page by clicking on
the ‘Solar/Turbine’ icon on the Home Page.
