Room Energy Storage Tank
Area 10.0 m
2
Height 2.6 m
Volume 26. 00 m
3
Design Concentration 5.9 %
Design Quantity 23. 09 kg
Cylinder Specs 2. 5MPa 30L
Actual Cylinder Number 1
Actual Ejection Concentration 5.9 %
Filling Quantity 24 kg
Discharge Time 10 s
Smoking Time 10 min
Relief Opening Area 0.03 m
2
16. Calculation Sheet

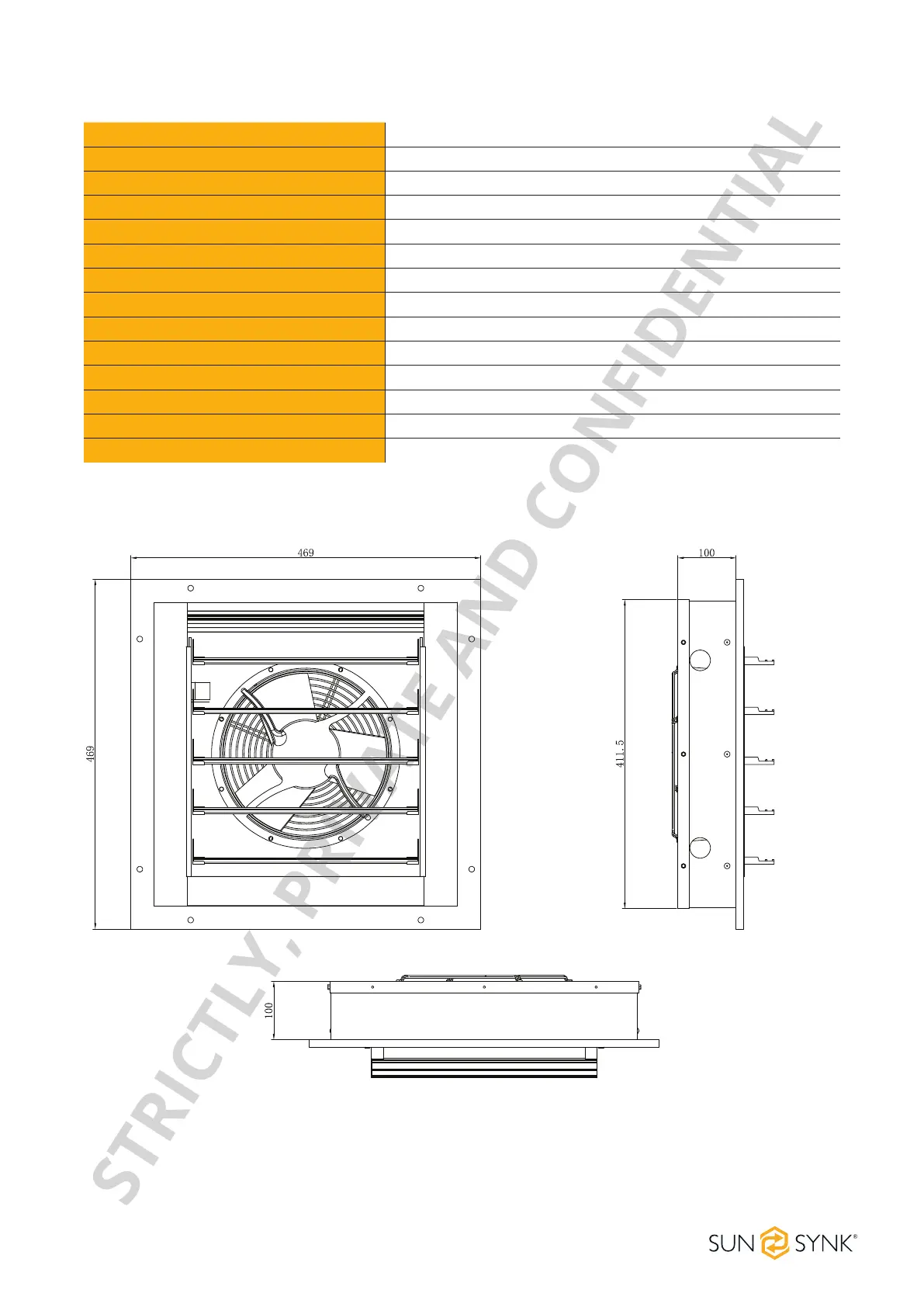

Air Inlet and Exhaust Device
