SunSynk INNAGATOR - Description of Battery Module in Rack

Innagator | Technical Pack155
No. Name Description Position
12
Grounding wire
identication
Connection to the battery rack and the ground point Front
13 OUT COM
Connection position with next HVB-100A750V communica-
tion input
Rear
14 IN COM
Connection position with previous HVB-100A750V commu-
nication input
Rear
15 PCS COM
Communication interface with charging and discharging
equipment
Rear
16 POWER Connection position of external 12VDC power supply Rear

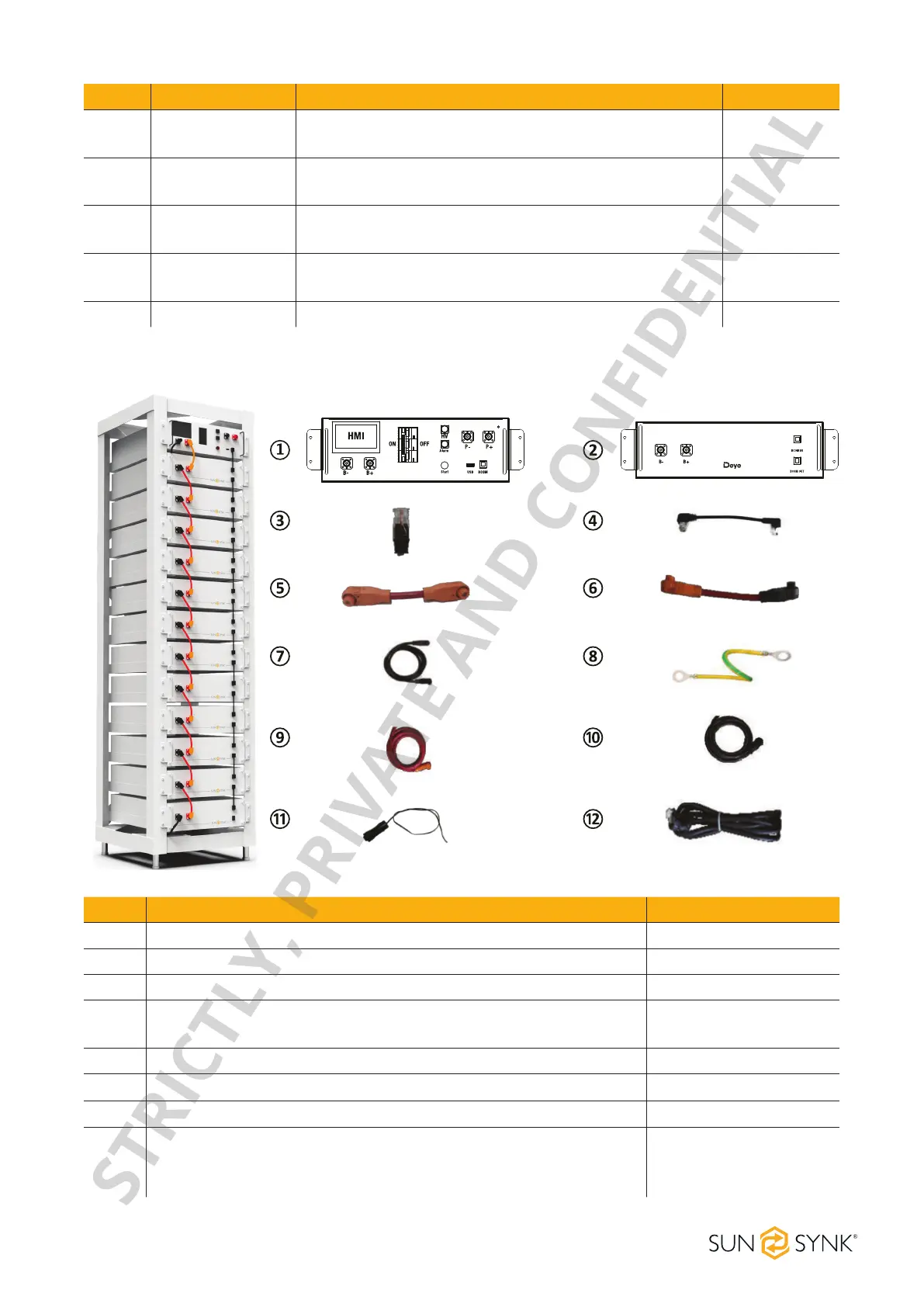

Description of Battery Module in Rack
No. Description Type
1 High-voltage control box 750V/100A
2 5.12kWh battery module (general)
3 120ohm terminal resistor
4
Communication cable (110mm for battery module, 140mm for
high-voltage control box)
Standard
5 220mm positive power cord of high-voltage control box Standard
6 220mm positive power cord of battery module Standard
7 The negative power cord of the high-voltage control box Standard
8
140mm ground wire A (ground wire B for external connection of bat-
tery rack is not provided)
Standard connecting
cable A (connecting the
high-voltage control box)
