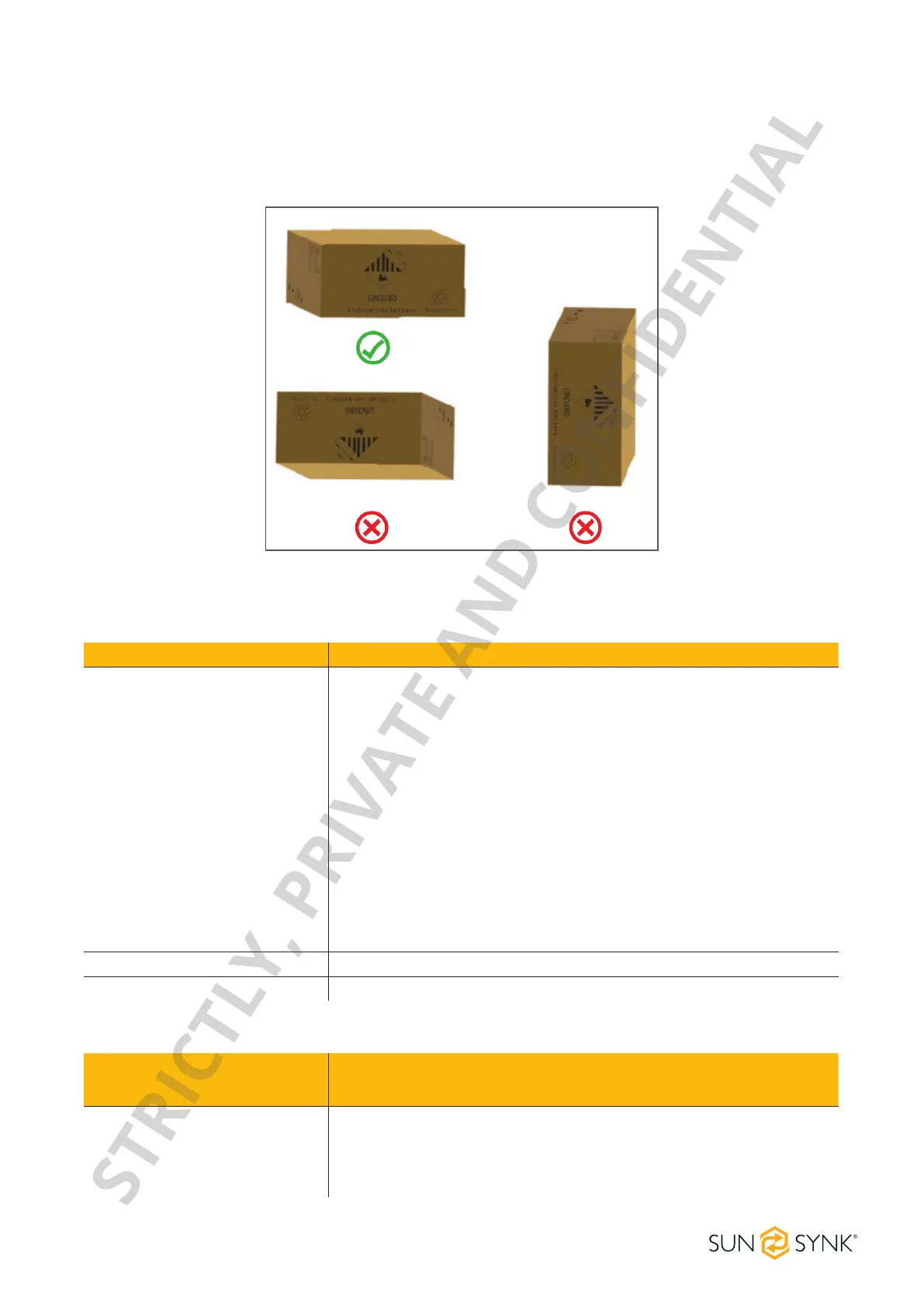

Storage Positions for Packaged Goods
The battery module can only be transported in an upright position. Please note that the battery rack may be
very top-heavy.
Battery Module
Preparation
Tools Required
Tool Use
PHILIP2# crosshead screwdriver
Fix the upper and lower tripods to the side beam and the cross
beam.
Install and connect the side beam/cross beam.
Fix the L-shaped bracket to the side beam.
Fix the base assembly to the side beam.
Fix the diagonal brace to the beams on both sides.
Fix the base to the side or cross beam.
Install the ground wire.
Install the hanging lug on the battery module/high-voltage control
box.
Fix the battery module and the high-voltage control box on the
rack.
10mm hexagon socket Fix the expansion screw.
24mm wrench Adjust the height of the base and tighten the nut.
Auxiliary Tools and Materials Required
AID/Material
Auxiliary tools/Materials
Use
Fastening materials (M4*12
M6*12 screws, M6*100 expan-
sion screws, M6 nuts)
1. Assemblethebatteryracksandxthemonthewallorconnectthe
two racks.
2. Assemble the battery modules and high-voltage control boxes, and
xthemtotheracks.
STRICTLY, PRIVATE AND CONFIDENTIAL
