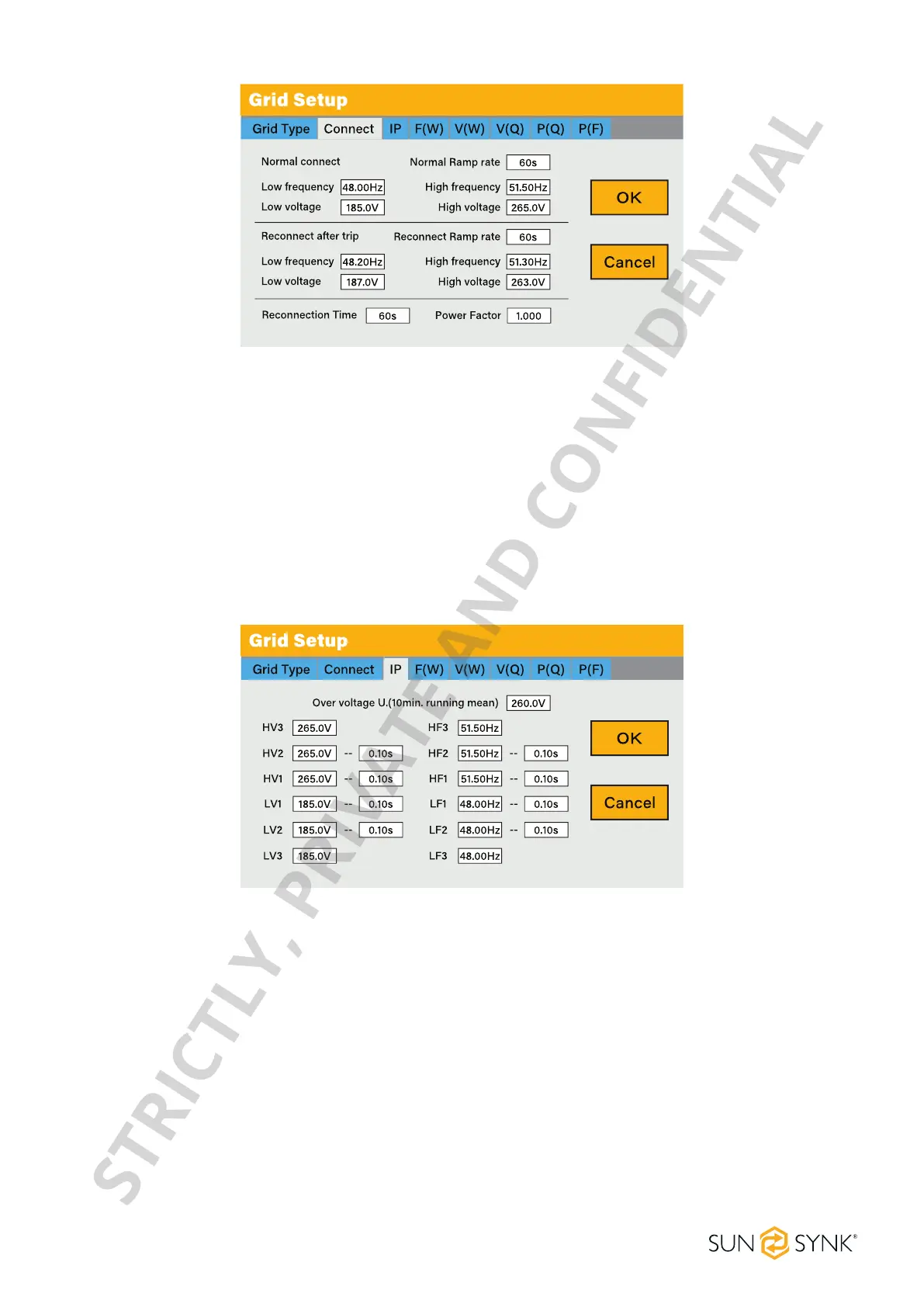

What this page displays:
 Normal connect: Theallowedgridvoltage/frequencyrangewhentheinverterrsttimeconnectstothe
grid.
 Normal Ramp rate: It is the startup power ramp.
 Reconnect after trip: The allowed grid voltage/frequency range for the inverter connects the grid after
the inverter trip from the grid.
 Reconnect Ramp rate: It is the reconnection power ramp.
 Reconnection time: The waiting time period for the inverter to connect the grid again.
 Power factor: This is used to adjust the inverter's reactive power.
What this page displays:
 HV1: Level 1 overvoltage protection point;
 HV2: Level 2 overvoltage protection point;
 HV3: Level 3 overvoltage protection point.
 LV1: Level 1 undervoltage protection point;
 LV2: Level 2 undervoltage protection point;
 LV3: Level 3 undervoltage protection point.
 HF1: Level 1 over frequency protection point;
 HF2: Level 2 over frequency protection point;
 HF3: Level 3 over frequency protection point.
 LF1: Level 1 under frequency protection point;
 LF2: Level 2 under frequency protection point;
 LF3: Level 3 under frequency protection point;
 0.10s: Trip time.
