NOTE:
Micro Inv Input OFF and On is valid for certain FW versions only.

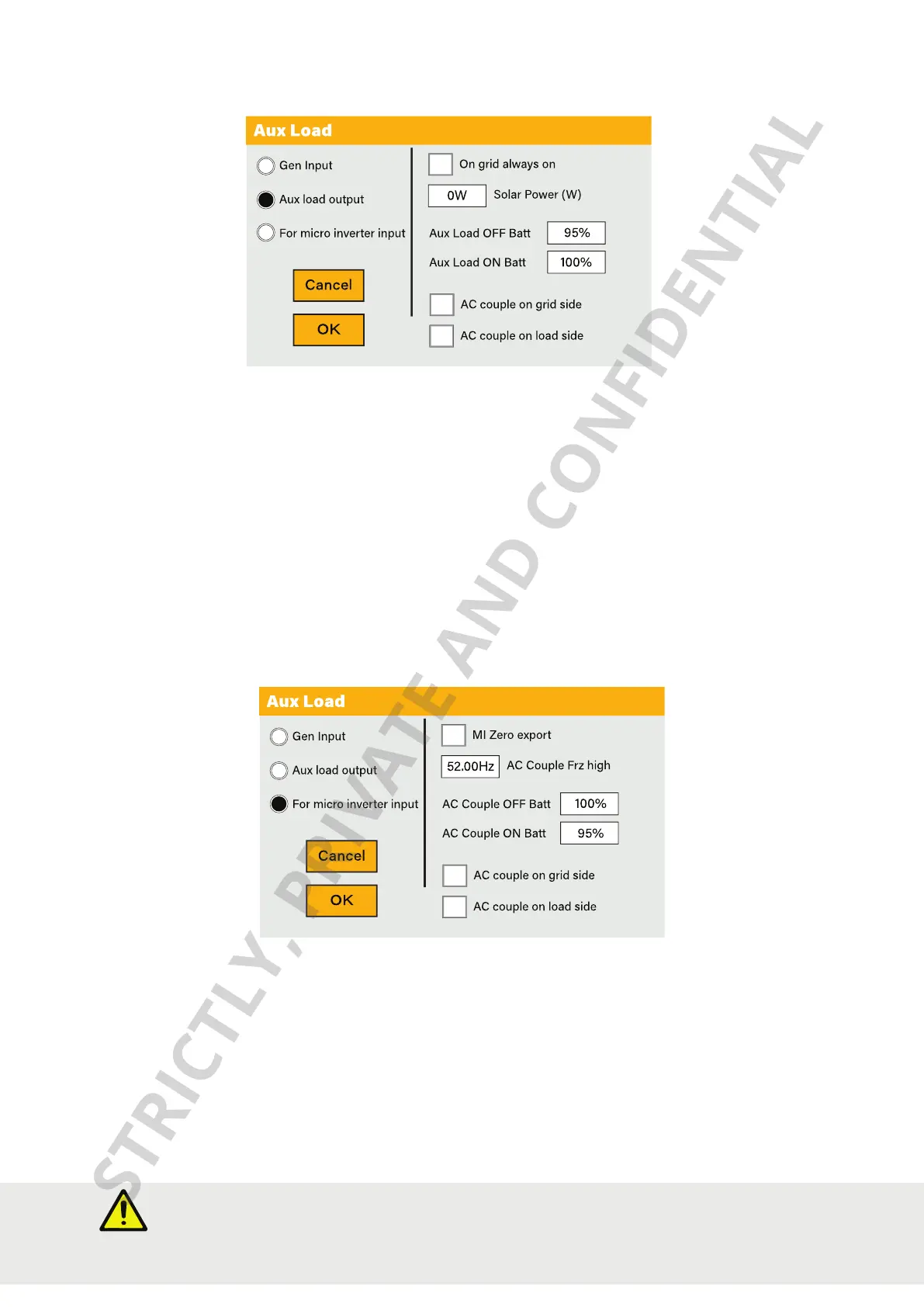

For Micro Inverter Input mode:
For Aux Load Output mode:
Aux Load Output: This mode utilizes the Gen input connection as an output which only receives power
when the battery SOC and PV power is above a user programmable threshold.
For Example:Power=500W,ON:100%,OFF=95%.WhenthePVpowerexceeds500W,andbatterybank
SOC reaches 100%, Smart Load Port will switch on automatically and power the load connected. When the
batterybankSOC<95%orPVpower<500w,theSmartLoadPortwillswitchoautomatically.
On Grid always on:Whenclick"onGridalwayson"theSmartLoadwillswitchonwhenthegridispresent.
Solar Power: Power limiter to the maximum power allowed to the Aux load.
Aux Load OFF BattBatterySOCatwhichtheSmartLoadwillswitcho.
Aux Load ON Batt: Battery SOC at which the Smart Load will switch on. Also, the PV input power should
exceed the setting value (Power) simultaneously and then the Smart Load will switch on.
Micro Inverter Input: To use the generator input port as a micro-inverter on grid inverter input (AC cou-
pled),thisfeaturewillalsoworkwith"Grid-Tied"inverters.Tickthisboxifintendingtoconnectasupplemen-
tary inverter or micro inverter (Max. 4kW).
AC Couple OFF Batt: When the battery SOC exceeds setting value, the micro-inverter or the grid-tied invert-
er will shut down.
AC Couple ON Batt: If choosing “Micro Inv input”, as the battery SOC reaches a gradually setting value (OFF),
during the process, the micro-inverter output power will decrease linearly. When the battery SOC equals
to the setting value (OFF), the system frequency will become the setting value (AC Couple Frz high), and the
micro-inverter will stop working. Stop exporting power produced by the micro-inverter to the grid.
