Innagator | Technical Pack153

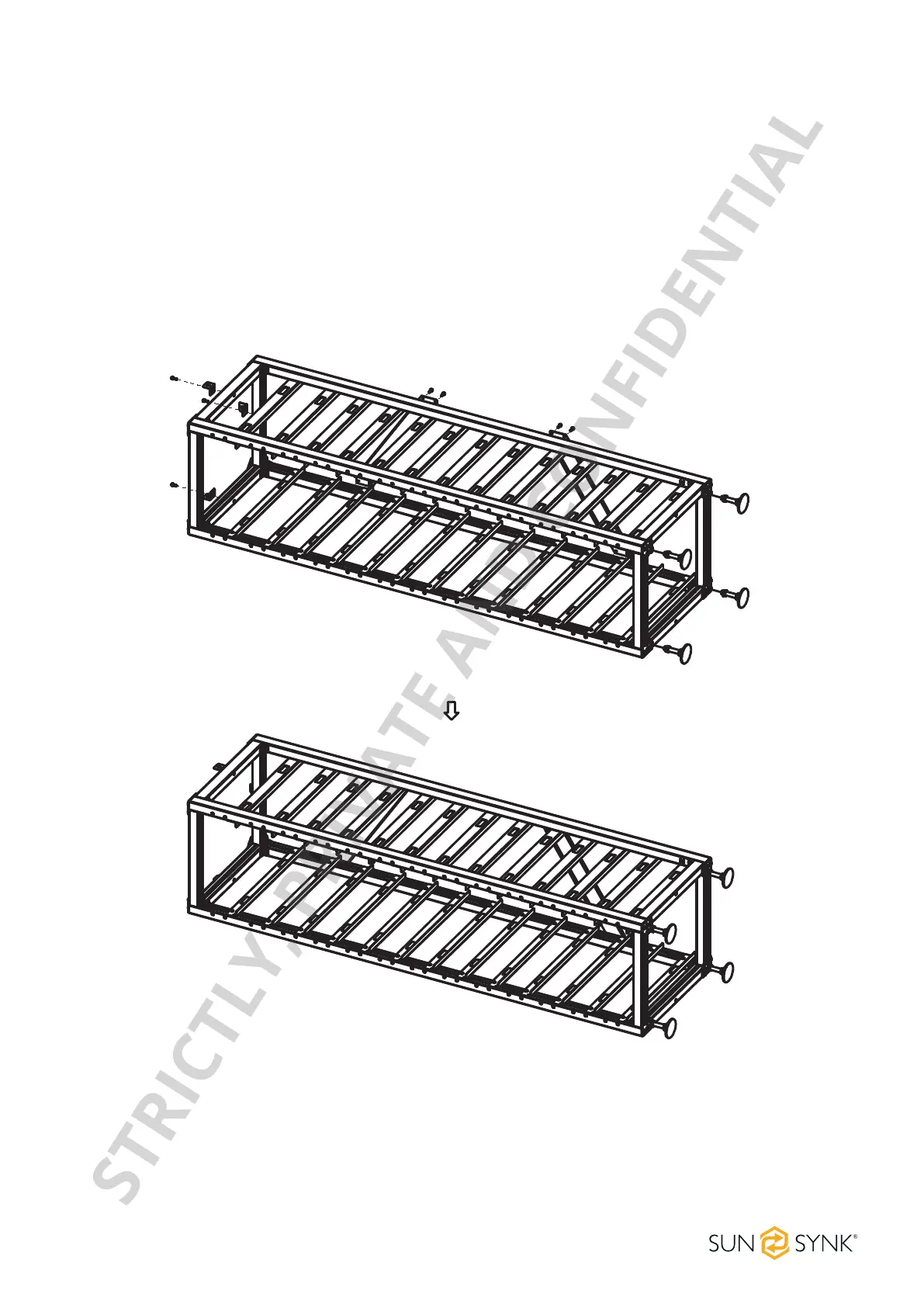

2. Use a PHILIP2 # screwdriver and M6*12 external hex combination screws (108) to attach the L-bracket
(107) assembly horizontally to the side joist.
3. Attach the upper diagonal beam (105) to two side beams (101) and the lower diagonal beam (104) to two
other side beams using M6*12 external hex combination cross screws (108) and a screwdriver.
4. Screw the base (106) to the rack bottom plate and secure it with a PHILIP2# screwdriver or by hand.
5. Toxtherackonthewall,useaPHILIP2#screwdrivertoinstalltherackfastenerattheM6screwhole
abovetherackandxitwithM6*12outerhexagoncrosscombinationscrews(108).Fixtheothersideof
therackwiththewallusingM6*100expansionscrews.Toxtworackstogether,installtherackfastener
attheM6screwholeabovetherack,andxthemtogetherwithM6*12outerhexagoncrosscombina-
tion screws and M6 nuts.
101
101
108
108
108
108
108
108
108
108
103
103
108
108
108
108
108
108
108
108
102
102
201x1
106
106
106
106
108
108
108
108
108
107
107
107
105
104
201
