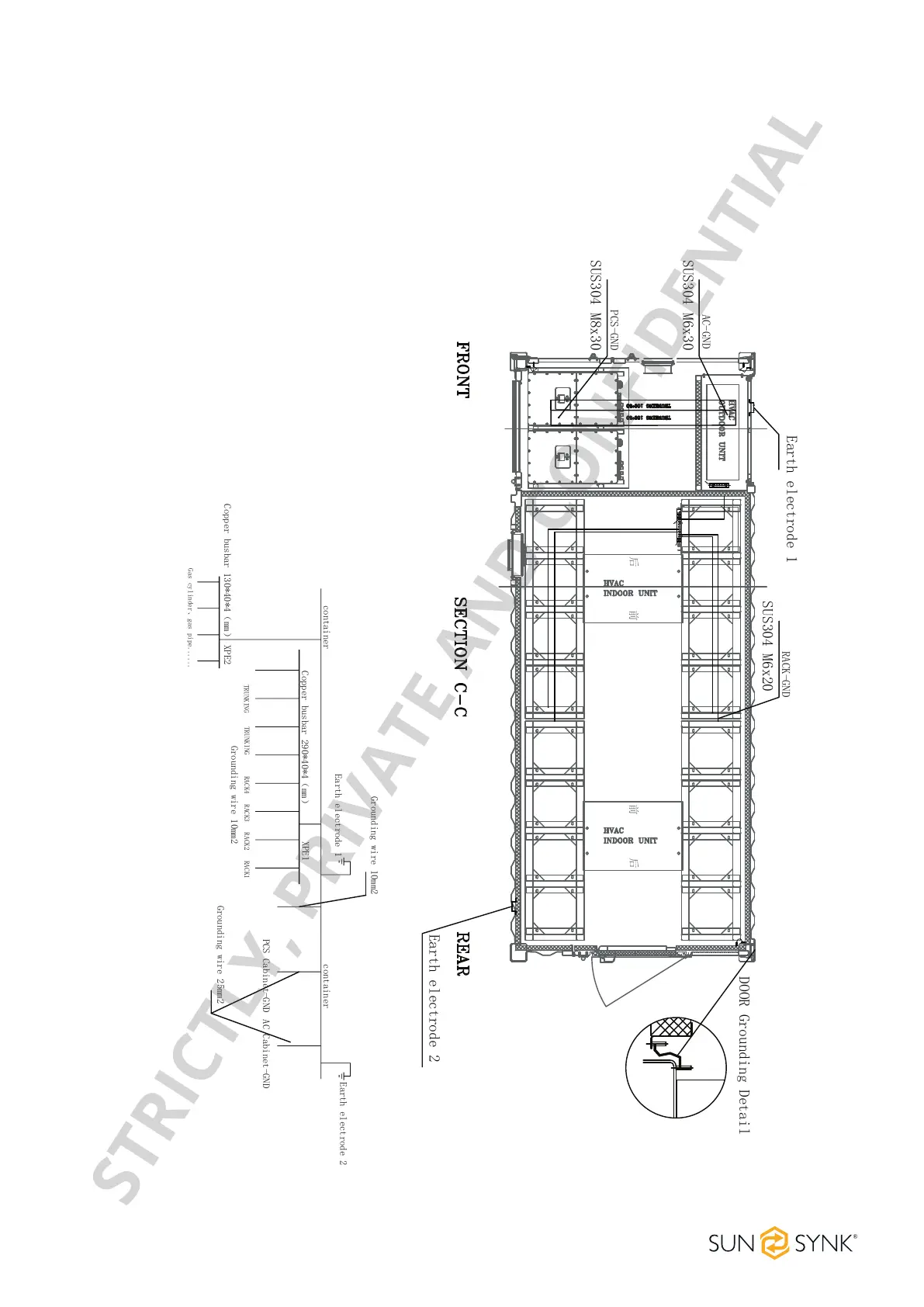

Earthing system
1、所有集装箱门扇接地，采用铜接地_铜镀锡/铜编织线带 10mm2 长450 M6xM6
2、地沟端部如图放置SUS304螺栓，25mm²黄绿线与PCS、AC柜接地排链接
3、四组电池架焊接SUS304 M6x20接地螺栓，分别接至接地铜排
4、接地排安装于焊接在地板上的不锈钢C型件上,电池仓一只，控制仓一只。
5、网格桥架同侧6mm²线跨接，引一根接地线至接地排
6、控制室接地排给消防接地使用
Earth electrode 2
Earth electrode 1
DOOR Grounding Detail
PCS-GND
AC-GND
Earth electrode 2
Earth electrode 1
container
SUS304 M6x30
SUS304 M8x30
AC Cabinet-GNDPCS Cabinet-GND
Grounding wire 10mm2
Grounding wire 25mm2
40
8-Ø9
2-Ø6,5
20
RACK-GND
SUS304 M6x20
XPE1
RACK1RACK2RACK3RACK4TRUNKING
Grounding wire 10mm2
TRUNKING
2-Ø6,5
XPE2
Gas cylinder、gas pipe......
Copper busbar 290*40*4（mm）
Copper busbar 130*40*4（mm）
container
1. All container door leaves are grounded using copper grounding_
Copper tin plated/copper braided wire strip 10mm2 length 450 M6xM6
2. Place SUS304 bolts at the end of the trench as shown in the figure,
25mm ² The yellow and green lines are connected to the grounding bars of
PCS and AC cabinets
3. Four sets of battery racks are welded with SUS304 M6x20 grounding
bolts, respectively connected to the grounding copper bar
4. The grounding bar is installed on a stainless steel C-shaped component
welded to the floor, with one battery compartment and one control
compartment.
5. Grid bridge wire bridging, one 6mm ² Cable grounding wire to grounding
bar
6. Control room grounding system for fire protection grounding
3. Battery Racks: Grounded with SUS304 M6x20 bolts welded to
grounding copper row.
4. Mounting: Grounding row mounted on stainless steel C-piece weld-
edtotheoorforbatteryandcontrolcompartments.
1. Container Doors: Grounded with copper grounding tape (10mm²) using
M6xM6 bolts.
2. Trench End: SUS304 bolts with a 25mm² yellow and green wire connecting
PCS and AC cabinet earthing rows.
5. Grid Bridge: Connected with 6mm² wire, leading to
grounding row.
6. ControlRoom:Dedicatedgroundingrowforre
grounding.
