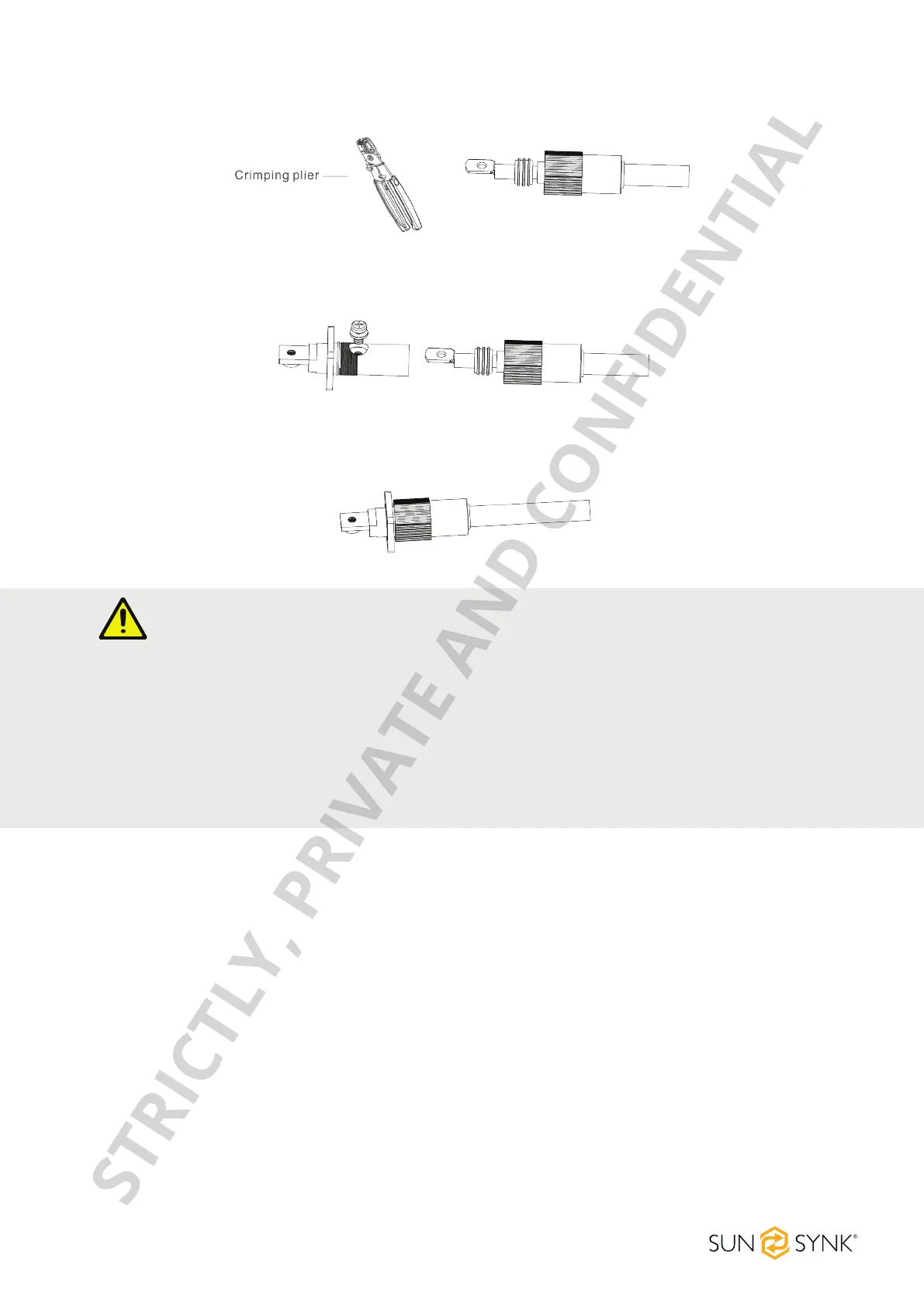

1. Crimp terminals:
2. Fasten terminal with a bolt:
3. Fasten the terminal with outer cover:
NOTE:
Depending on the battery type, the inverter should be capable of controlling the battery BMS. There-
fore, you need to set the protocol of the BMS on both the battery and the inverter.
When using more than one battery, the rst battery will be the master, and the other batteries will be
the slaves. Please, check the battery manufacturer's specications for proper operation.
To verify if the battery is communicating, access the Li BMS menu as detailed in section 5.13, 'Setting
Up a Lithium Battery', and check whether the values are realistic. It is important that the charge and
discharge limits on that page match the numbers expected for the number of connected batteries.
