4. Finally, insert the DC connector into the positive and negative input of the inverter.
NOTE:
When sunlight falls on the solar panel, it will generate a voltage. A high voltage generated by panels
in a series conguration may cause danger to life. Therefore, before connecting the DC-Input line, the
solar panel’s surface should be shielded from the sun’s rays by some opaque material, and the DC
switch should be o. This will prevent a high voltage from owing to the inverter, thereby causing risk
to persons conducting installation or maintenance.

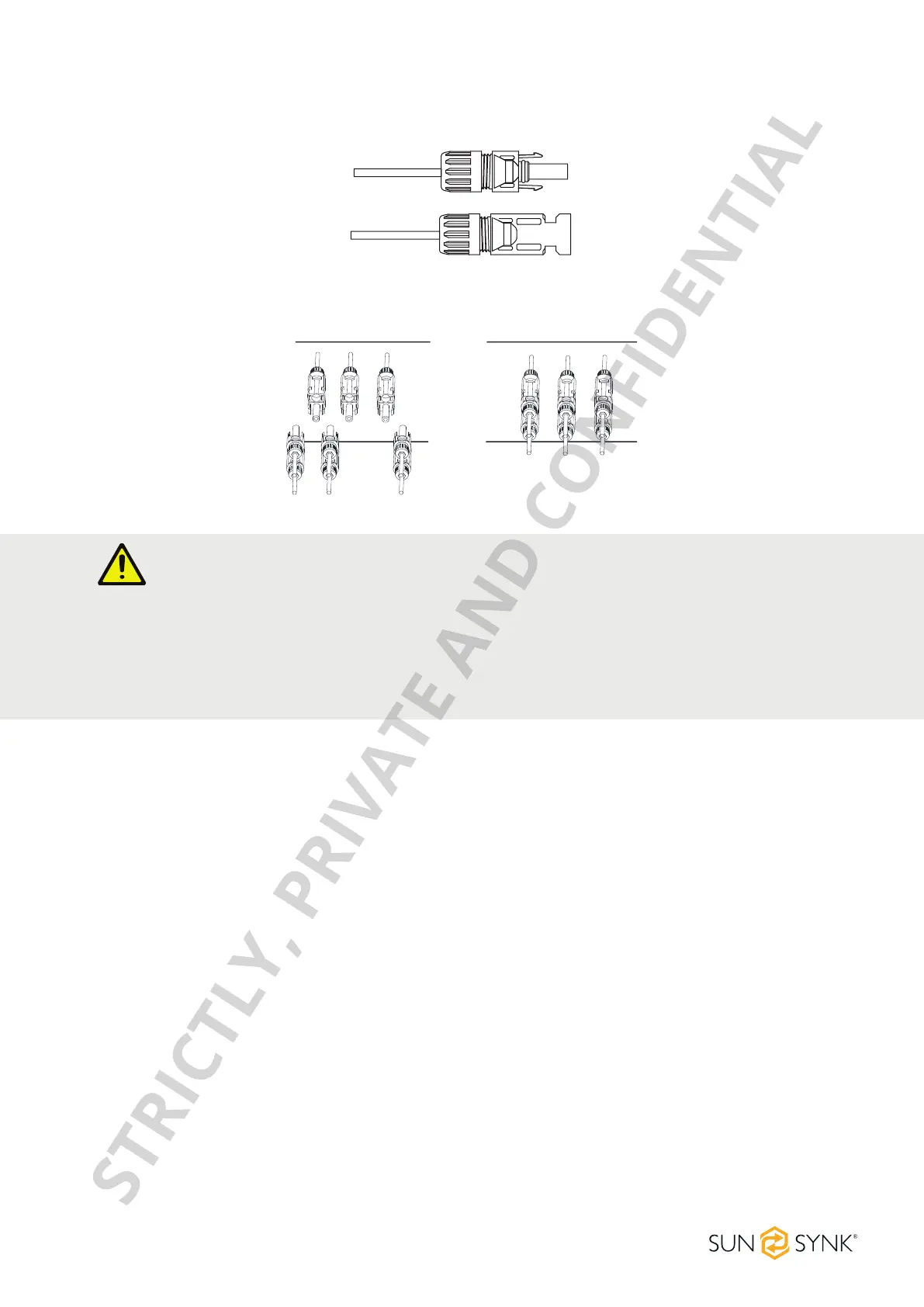

3. Insert the contact pin into the connector housing until it locks into place. Then screw the cap nut onto
the connector housing. Torque to 2.5-3 N.m.
