General Announcements are on “Attention”. In this manual, “Attention” is also used remind of
safety instructions.
1.1.4 Other Signs
Oil level sign Temperature sign Battery sign
Hoist direction sign Warning sign Direction sign
1.2 ALLOWED WORKING SLOPE
1.2.1 Regulation of Parking Space
The allowable grade of slope is calculated on firm ground without any ascend, so when the
machine is on rough and loose ground, the valve should be reduced.
Forbid to travel over the allowable value so as to prevent the tilting danger.
1.2.2 Travel on Slope

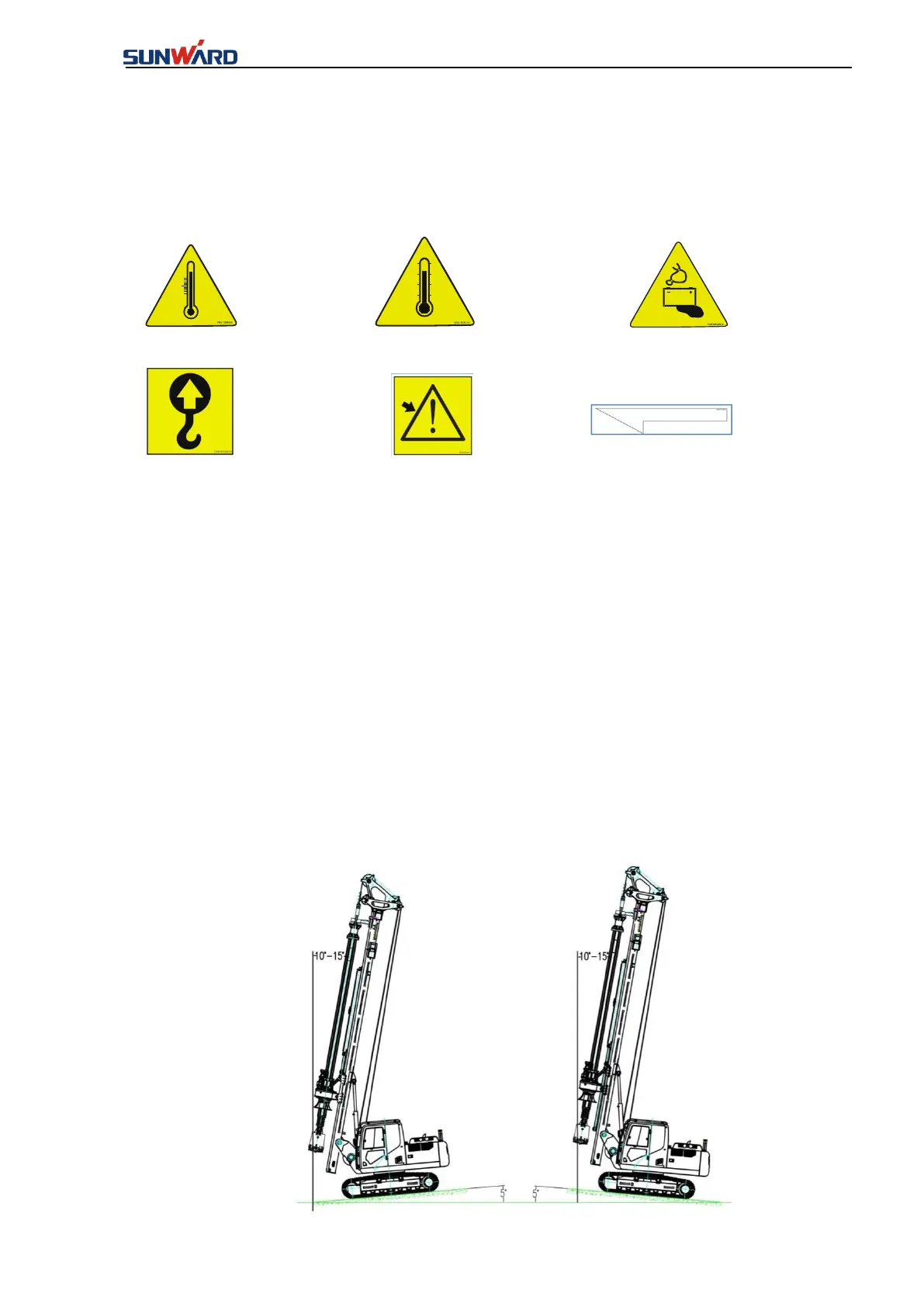

When travel in falling gradient，grade of slope in longitudinal must be no more than 5°，and
adjust the mast backward no less than 10°～15°.
When travel in up grade，grade of slope in longitudinal must be no more than 5°, and adjust the
mast backward no less than 10°～15°.
