SUNWARD SWDM40 - Checking Engine Oil Level

SWDM40 OPERATION & MAINTENANCE MANUAL
178
8.3.11 Checking Engine Oil Level
After engine shut-down, check engine oil level. Never check the oil level when the engine is
running.
1）Open side seal plate or extract directly.
Note: When checking oil level, the drilling machine should be on level ground. As heat makes
something expand and cold makes it contract, thus engine oil level should be checked after
about 30 minutes and the measurement is correct.

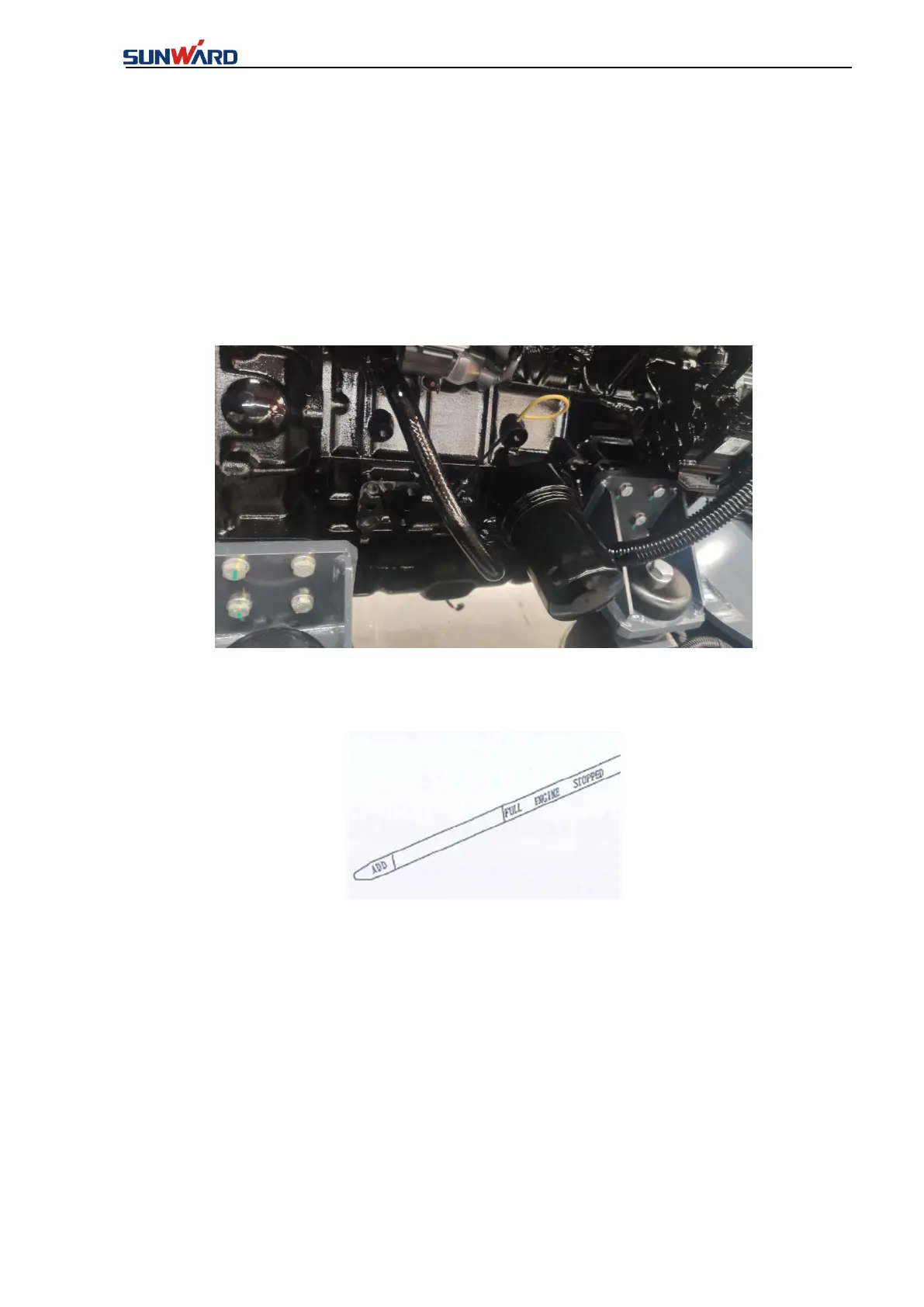

FIG. 8-3-12 Engine oil dipstick position
2）Pull out dipstick. Wipe off oil on the dipstick and insert it again.
FIG. 8-3-13 Engine oil dipstick
3）Take out the dipstick and check, the oil level should be within the range of “FULL” and
“ADD”.
4）If the oil capacity is not enough, remove the filling plug to add lubricating oil. The engine oil
filler is as figure.
