8.6.3 Checking Oil Level for Auxiliary Winch Reduction Gearbox

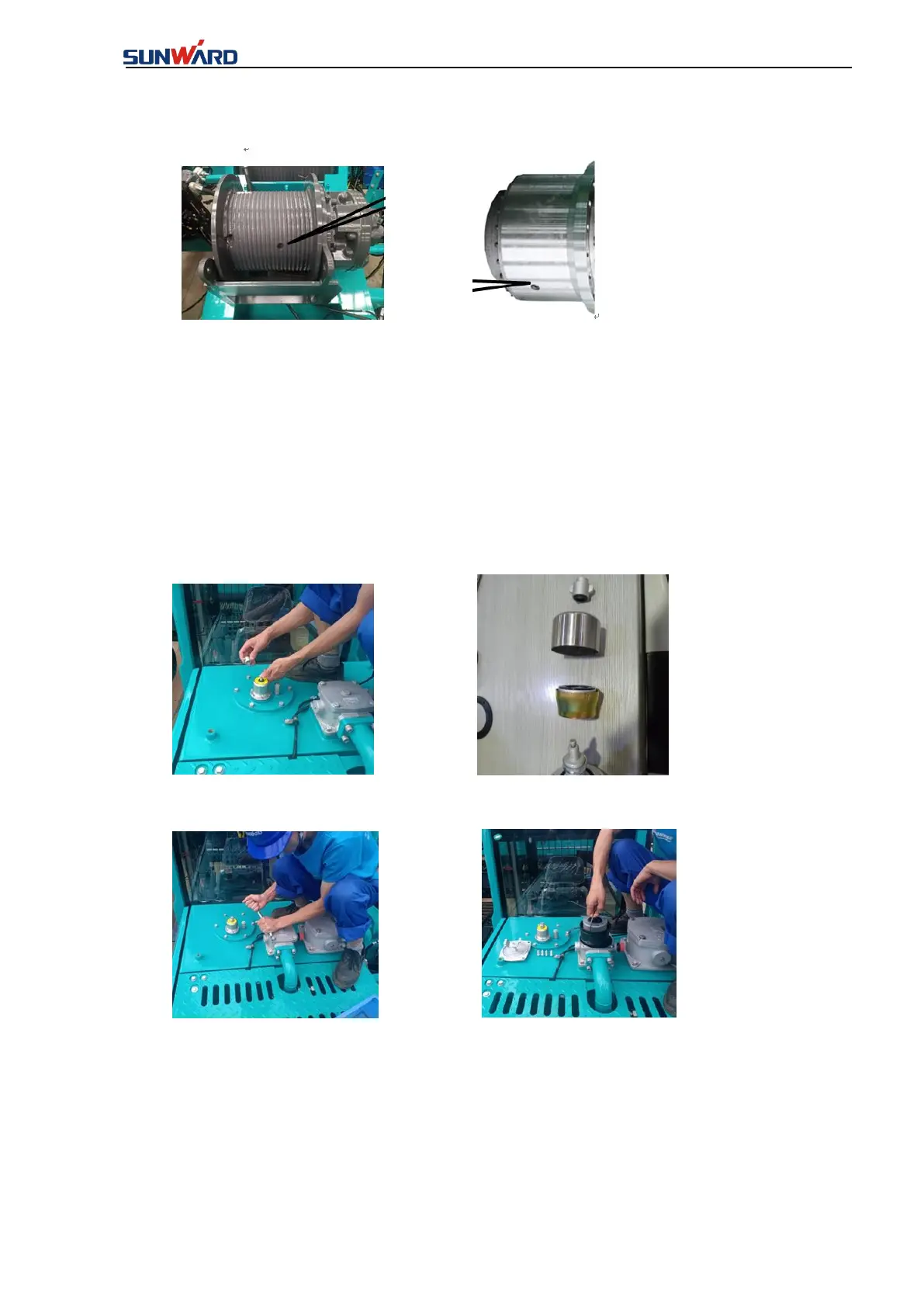

FIG. 8-6-3
1）Rotate the roller;
2
）
Aim the observation hole at upper oil discharging port, and this hole is on level
position;
3
）
Open oil discharging port to check whether there’s flowing gear oil.
8.6.4 Checking Hydraulic Oil Filter Element
FIG. 8-6-4 FIG. 8-6-5
FIG. 8-6-6 FIG. 8-6-7
Examine
hole
Oil drain
