SUNWARD SWDM40 - Changing Gear Oil for Travel Reduction Gearbox; Changing Gear Oil for Auxiliary Winch Reduction Gearbox

SWDM40 OPERATION & MAINTENANCE MANUAL
205

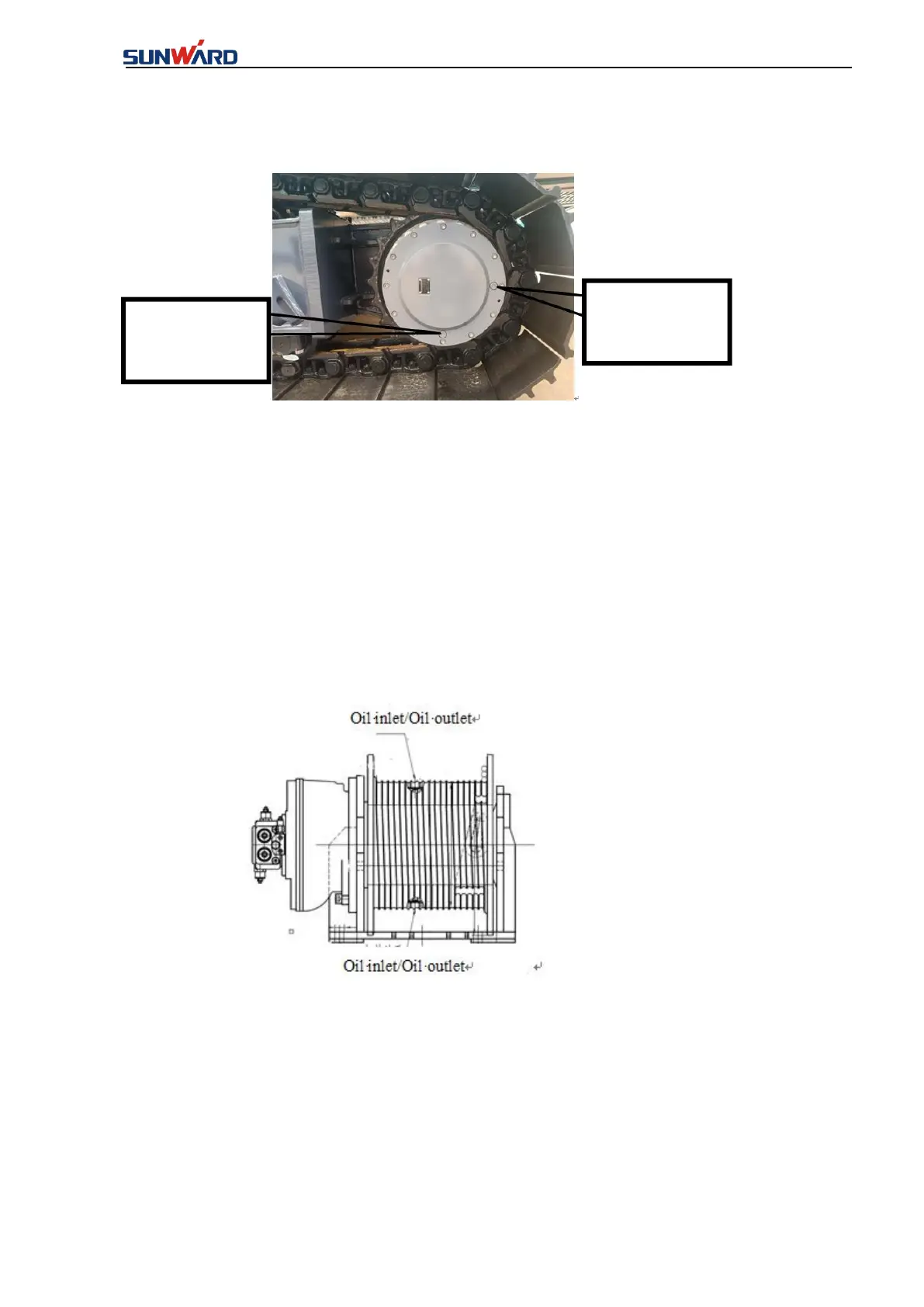

8.8.4 Changing Gear Oil for Travel Reduction Gearbox
FIG. 8-8-4
1） Rotate the reduction gearbox to the position as above figure;
2） Remove the plug of observation hole;
3） Remove the drain plug to drain gear oil;
4） Rotate travel reduction gearbox to place the observation plug on the highest position and
drain plug on the level position;
5） Inject gear oil from the observation hole till gear oil flows out from the oil drain hole.
8.8.5 Changing Gear Oil for Auxiliary Winch Reduction Gearbox
FIG. 8-8-5
1） Turn roller;
2） Aim observation hole at oil drain hole and oil filler;
3） Remove the plug of oil filler and oil drain hole successively;
4）Drain out gear oil in the reduction gearbox and plug on the oil drain hole;
6）After proper capacity of gear oil injected, plug on the oil filler.
Gear Oil Outlet
(air outlet)
Gear Oil Level
Viewport (oil
filler)
