SWDM40 OPERATION & MAINTENANCE MANUAL

106

●Push the right pilot handle leftward/rightward

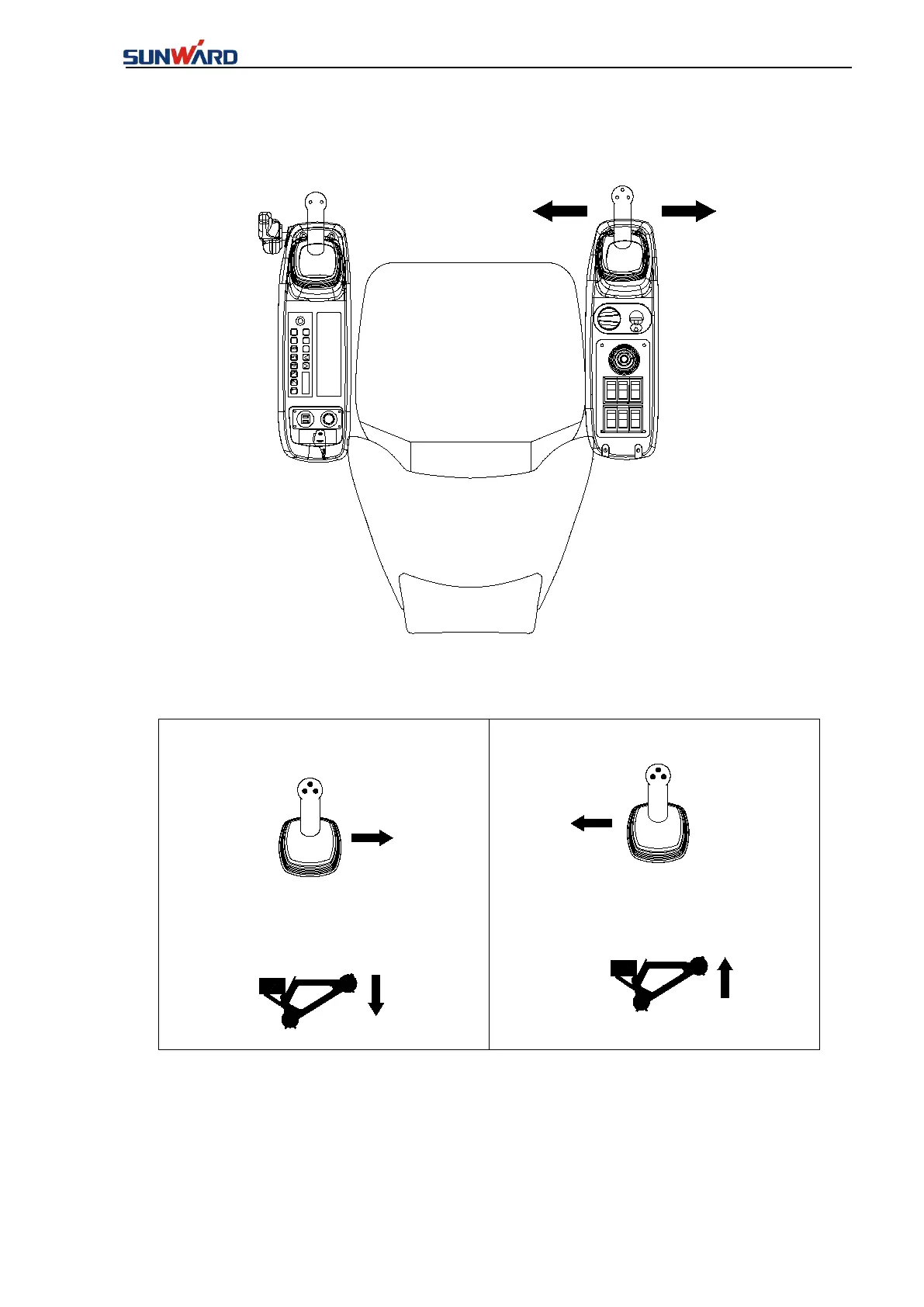

●Corresponding action schematic

Push the right pilot handle rightward

Push the right pilot handle leftward
