SWDM40 OPERATION & MAINTENANCE MANUAL
124

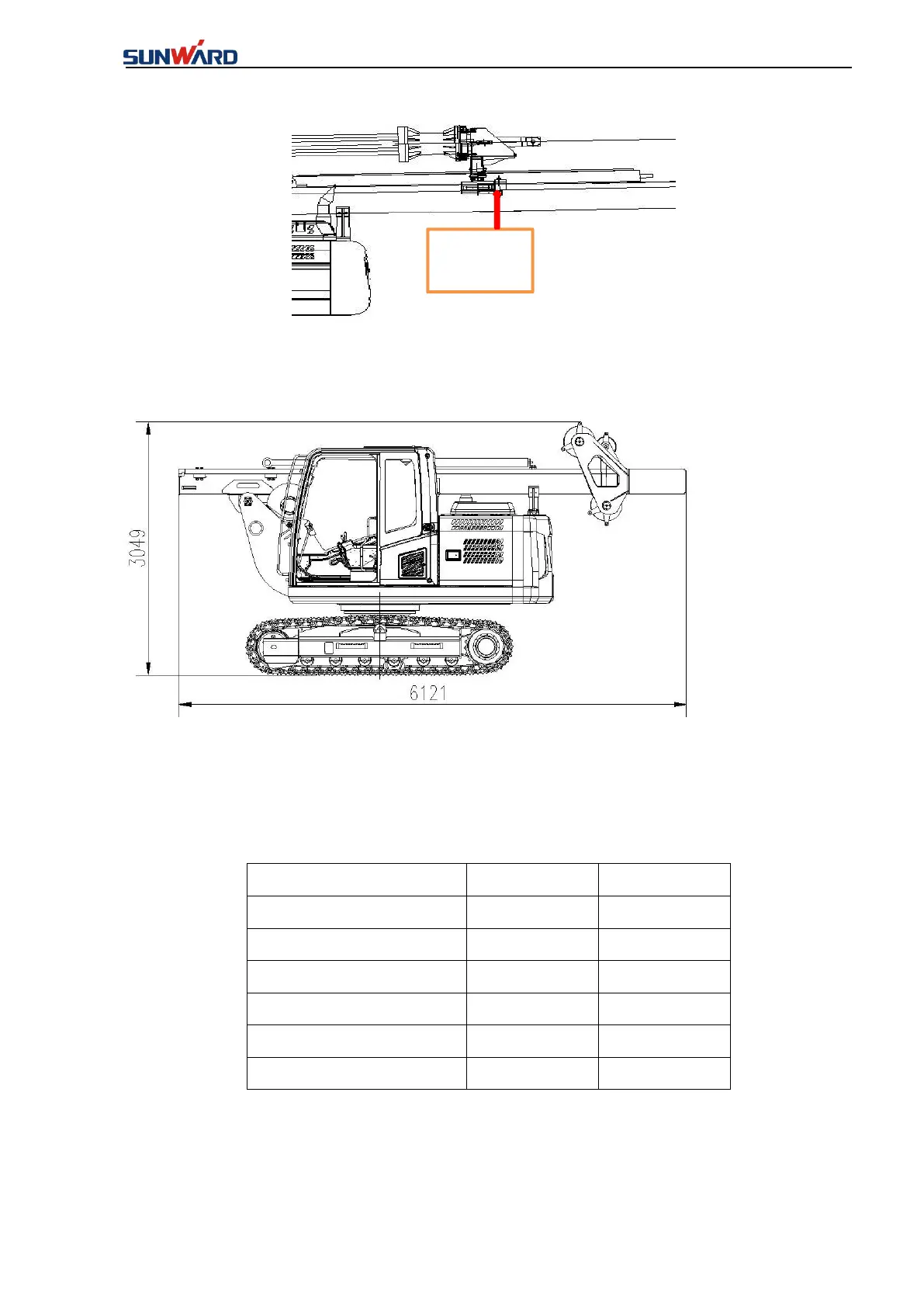

FIG. 6-7
6.2.2.2 Disassembly Transport Posture B
FIG. 6-8 Transport Posture B
Table 6-2 Transport Posture B Parameter
Items
Unit
Data
Transport length
mm
6121
Transport width
mm
2320
Transport height
mm
3049
Track length
mm
3224
Width of track shoe
mm
450
Transport weight
t
13
fixed
position C
