SWDM40 OPERATION & MAINTENANCE MANUAL
126
Parameter of following frame
：

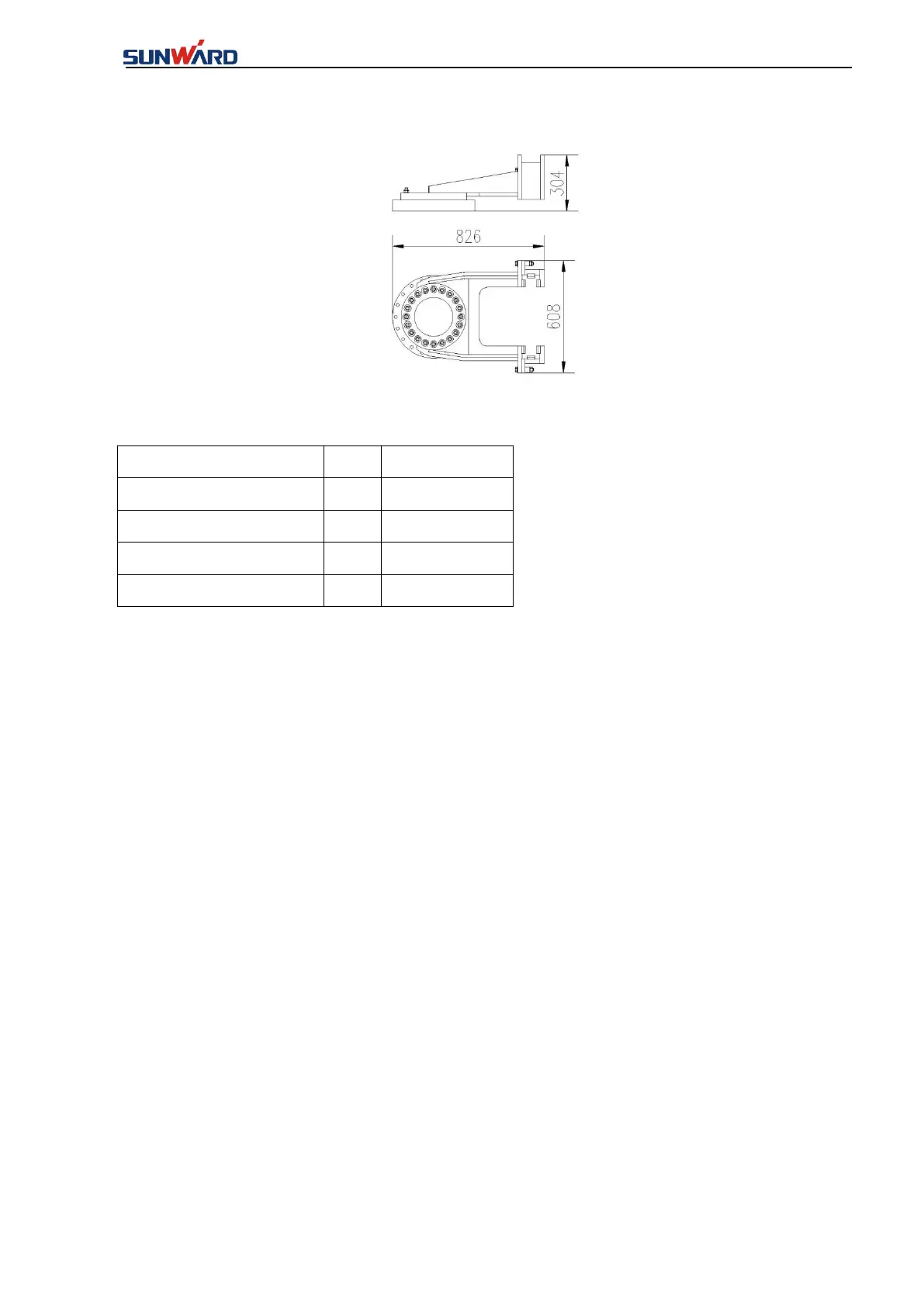

FIG. 6-11 Transportation –following frame
Table 6-5 Transportation-following frame parameter
Item
Unit
Data
Transport length
mm
826
Transport width
mm
608
Transport height
mm
304
Transport weight
t
0.13
Precautions for lifting kelly bar
（
as figure 6-12
）
During the hoisting process of the whole kelly bar, staff must cooperate with operators to
observe and command.
The allowed lifting capacity of the hoisting machine should be larger than the one of the
kelly bar.
The rated load of the rope, used for lifting, should be large than the weight of the kelly
bar.
Select two steel ropes, with different length, for lifting, fix it on two ends of the kelly
respectively. The fixed point should be close to two ends, but not close to the center of the kelly
bar. It’s suggested that the fixed point should be at the position between 1/4 and 3/4 of the total
length.
It’s forbidden to lift the kelly bar with one steel rope.
