SWDM40 OPERATION & MAINTENANCE MANUAL

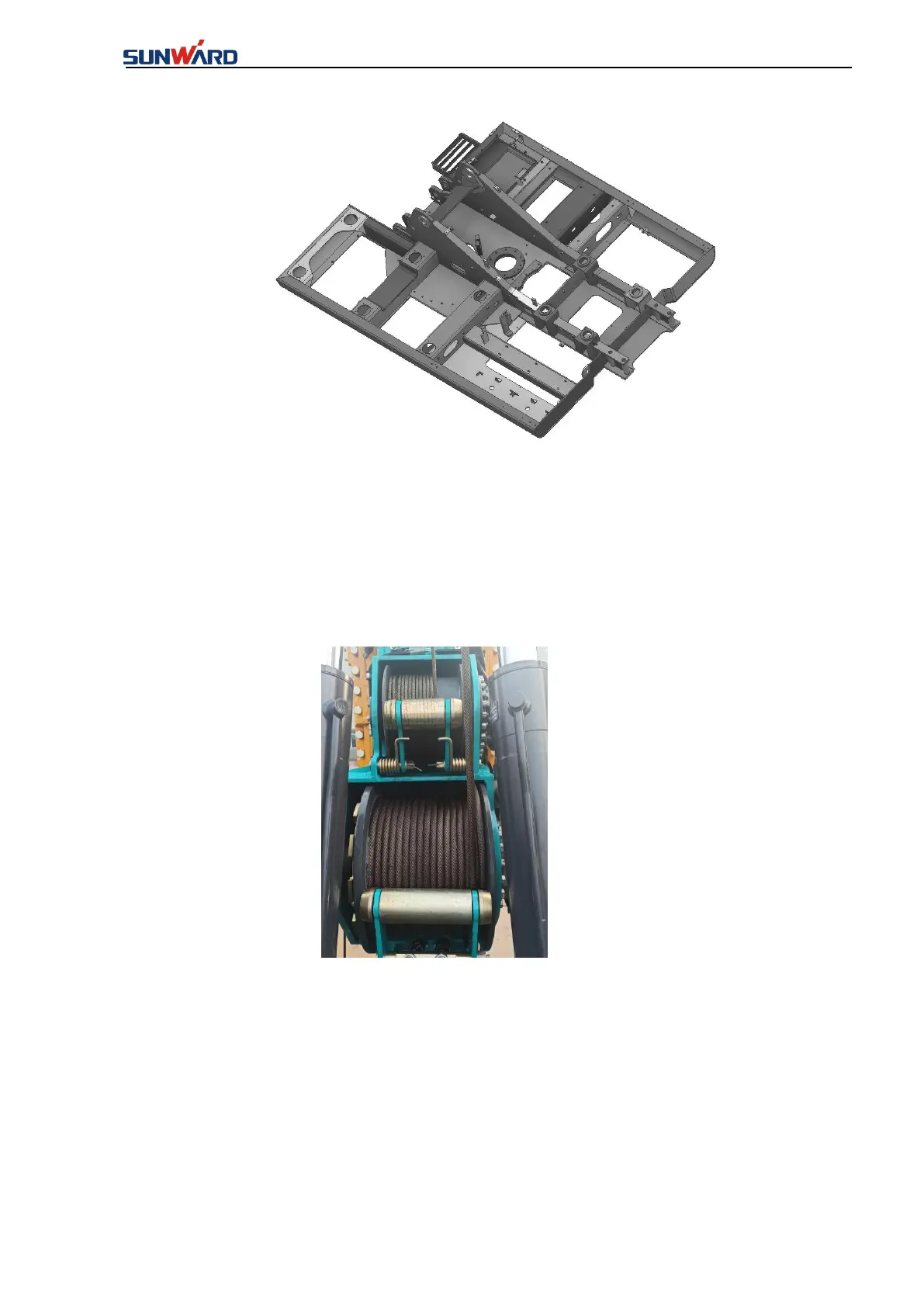

FIG. 2-5
2.3.3.2 Main Winch
The main winch is installed on the turntable. The main winch is used to lift and lower the kelly
bar. The main winch is driven by the hydraulic motor with the floating function of free release,
to meet the needs of the drilling rig.(Special note: when lowering kelly bar in non-drilling
process, floating function is not allowed).The control mode is hydraulic pilot control. See
fig2-6.Main winch is equipped with pressure rope device to prevent random rope.
FIG. 2-6
2.3.3.4 Luffing Mechanism
This luffing cylinder adjusts the verticality of the drill mast, which laterally adjusts 3
respectively and forward 5
.
The drill mast is box section, including two sections, and each section is installed with
To Next Page
