● Push the left and right pedal valves：
Foot Valve On 1
Position 2.1
Foot Valve on 2
Position 2.2

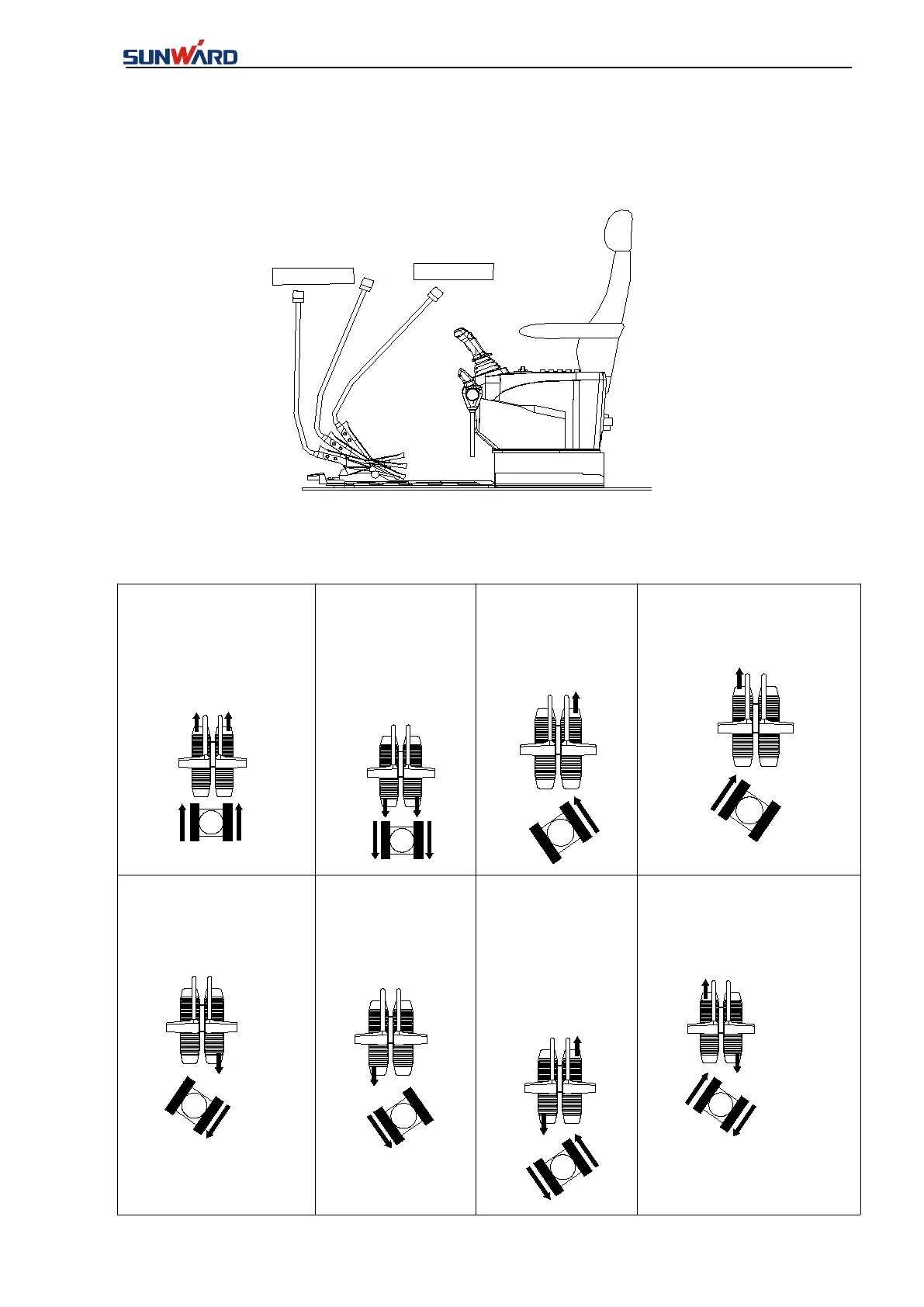

●Corresponding action schematic：
The left and right pedal
valves are pushed to
position 2.1
The left and right
pedal valves are
pushed to position
2.2
The right pedal
valves are pushed
to position 2.1
The left pedal valves are
pushed to position 2.1
The right pedal valve
are pushed to position
2.2
The left pedal
valve are pushed
to position 2.2.
The left pedal
valve are pushed to
position 2.2 and
the left right pedal
valve are pushed to
position 2.1.
The left pedal valve are
pushed to position 2.1 and
the left right pedal valve
are pushed to position 2.2.
