SWDM40 OPERATION & MAINTENANCE MANUAL

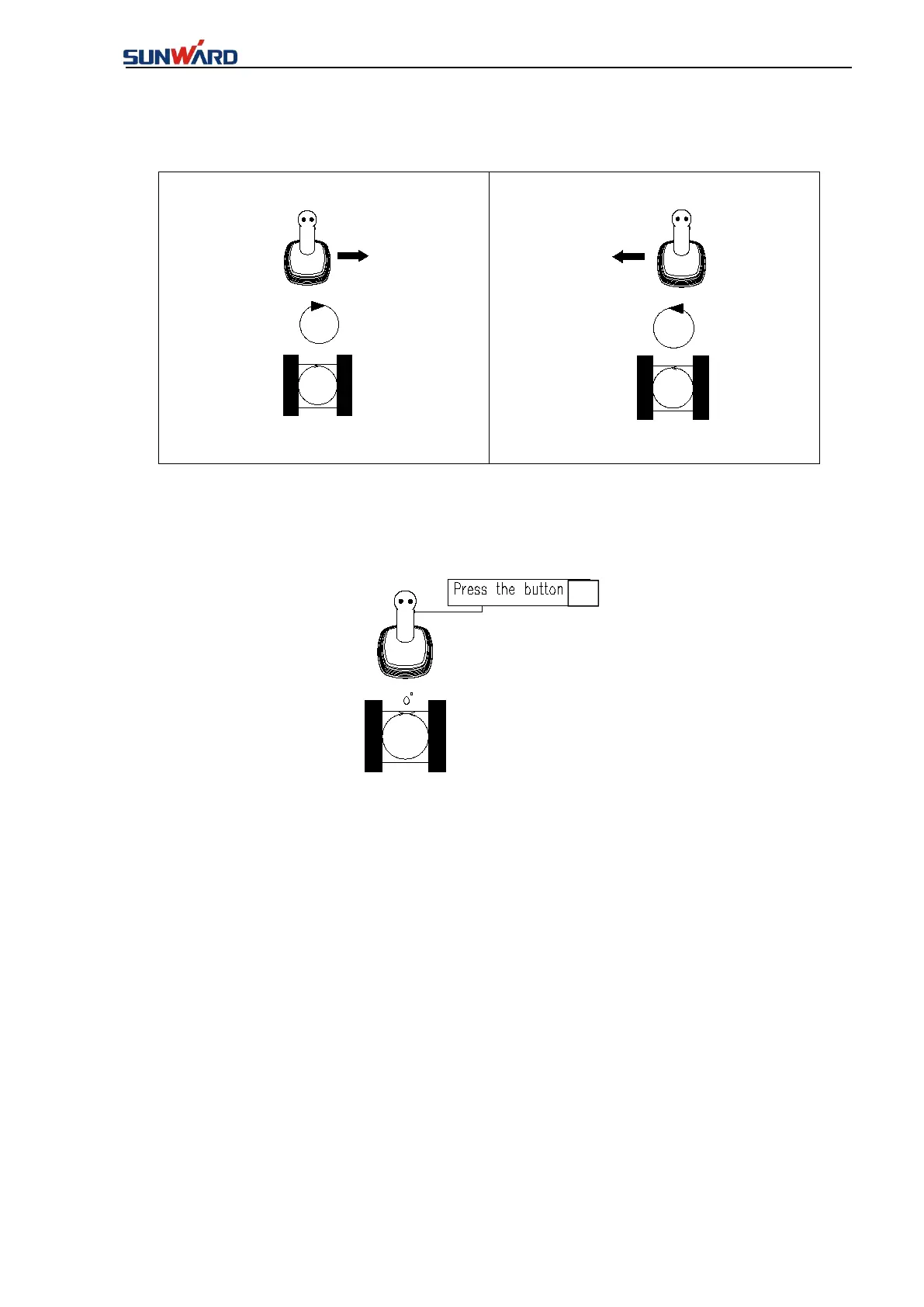

●Corresponding action schematic:
Push the left pilot handle rightward
Push the left pilot handle leftward
●Press“Button 4”,upper-carriage rotation will automatic reset
● When machine is in drilling operation and drilling depth reading is greater than zero, the
system considers that the kelly bar is inside hole and accidents may occur if upper-carriage
swings and the program restricts this operation. If the drilling depth proximity switch is
damaged and the drilling depth reading is less than zero, switch the “Button 4- Crawler
extension switch” in the membrane key panel is not connected(The light above the key is not
light) before upper carriage Left/Right swing.
