3-72 ENGINE

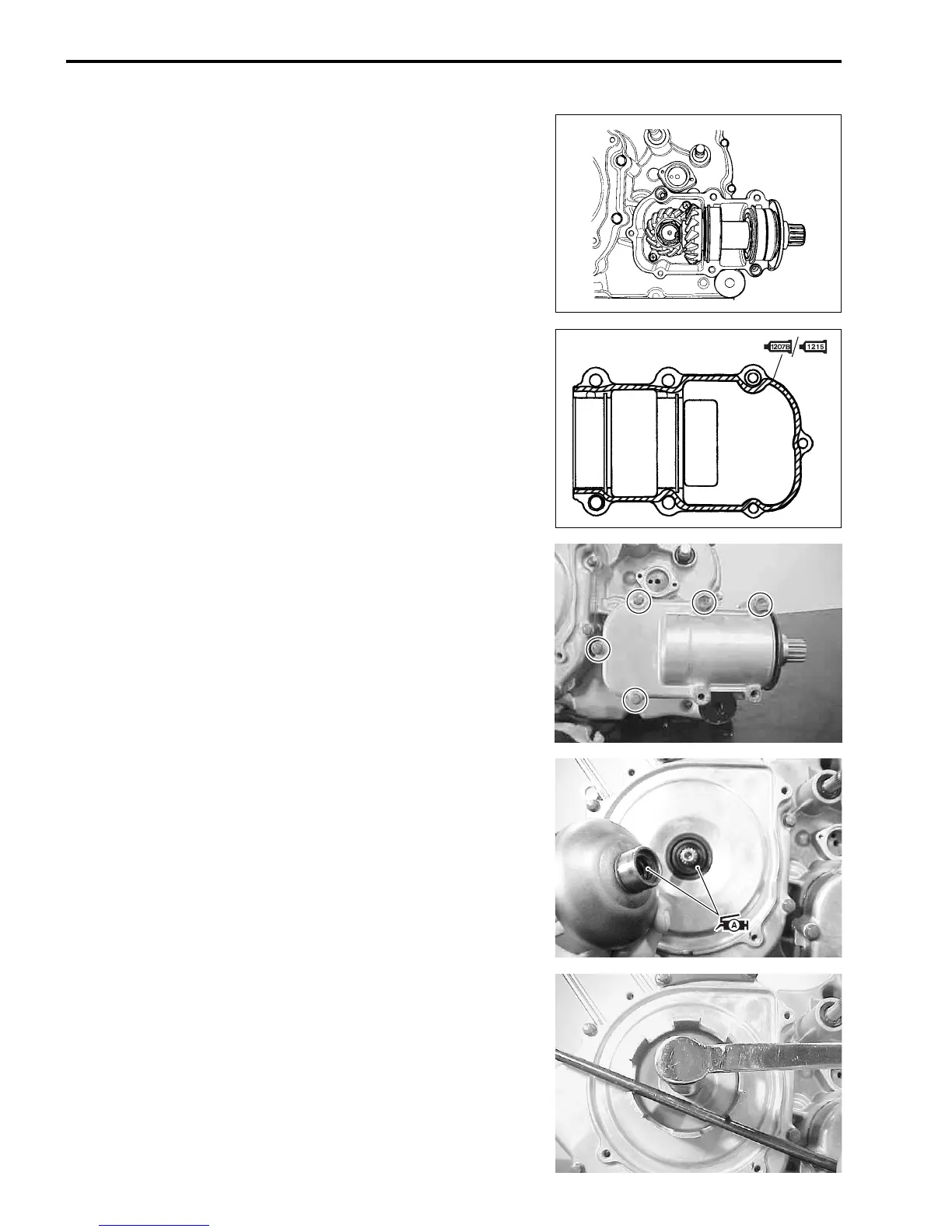

SECONDARY DRIVEN BEVEL GEAR
• Install the secondary driven bevel gear shaft assembly.
• Install the dowel pins.
• Apply SUZUKI BOND “1207B/1215” to the mating surface of
the right crankcase.
99104-31140: SUZUKI BOND “1207B” (USA)
99000-31110: SUZUKI BOND “1215” (Others)
• Install the secondary bevel gear cover.
STARTER CUP
• Apply SUZUKI SUPER GREASE “A” to the O-ring and lip of
the oil seal.
• Install the starter cup.
99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Tighten the starter cup nut by using a suitable bar.
Starter cup nut: 33 N·m (3.3 kgf-m, 24.0 lb-ft)
