Suzuki Ozark - Drive Train

3-54 ENGINE
DRIVE TRAIN

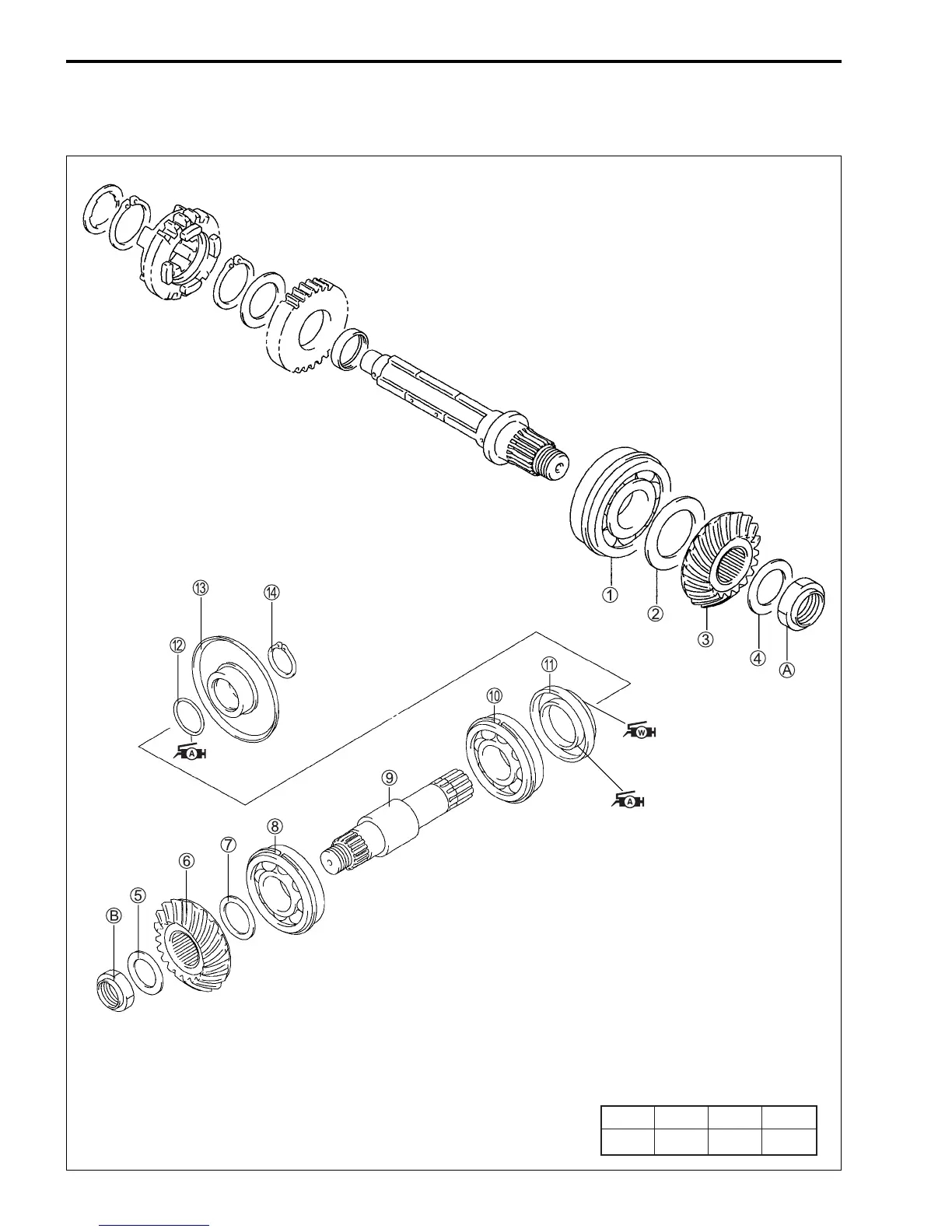

SECONDARY BEVEL GEARS CONSTRUCTION
1 Bearing
2 Shim
3 Secondary bevel drive gear
4 Washer
5 Washer
6 Secondary bevel driven gear
7 Shim
8 Bearing
9 Secondary bevel gear shaft
0 Bearing
A Oil seal
B O-ring
C Water proof cover
D Snap ring
ITEM N·m kgf-m lb-ft
A, B 100 10.0 72.5
"
