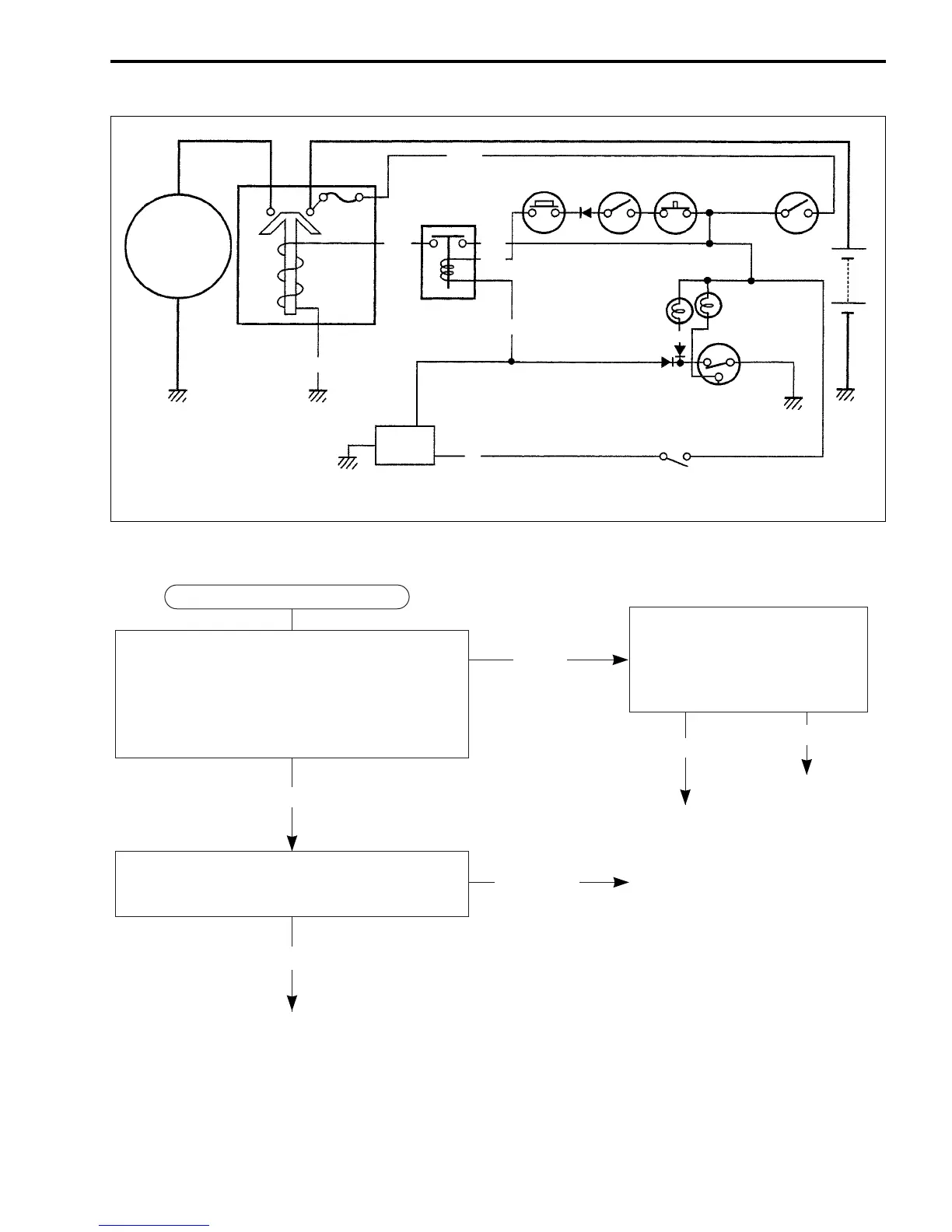

ELECTRICAL SYSTEM 8-11
STARTER SYSTEM
TROUBLESHOOTING
Starter
motor
Fuse
Starter relay
B/W
Y/B
Neutral relay
Starter
button
Engine
stop switch
Emergency
switch (E-17)
Ignition
switch
CDI
Parking
brake
switch
Neutral
indicator
light
O/Y
Y/G
Battery
Reverse
indicator
light
Neutral
switch
Bl
B/Bl
B
R/W
Starter motor will not run.
The transmission is in neutral. Turn on the
ignition switch with the engine stop switch in
the “RUN” position and emergency switch in
the “SET” position (E-17 model). Listen for a
click from the starter relay when the starter
button is pushed.
Check if the starter motor runs
when its terminal is connected
to the + battery terminal (Do
not use a thin wire because a
large amount of current flows.)
Measure the starter relay voltage at the starter
relay connectors (between Y/B + and B/W -)
when the starter button is pushed.
No click
Clicks
Runs
Voltage
No voltage
• Faulty starter relay
• Loose or disconnected starter
motor lead wire
• Faulty ignition switch
• Faulty engine stop switch
• Faulty neutral relay
• Faulty neutral switch
• Faulty emergency switch (E-17)
• Faulty starter button
• Improper connector contact
• Open circuit in wire harness
Continued on next page
• Faulty starter motor
Does not run
To Next Page
